2013 Cadillac CTS Coupe RWD V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor Assembly
Wheels/Vehicle Underbody Component Views

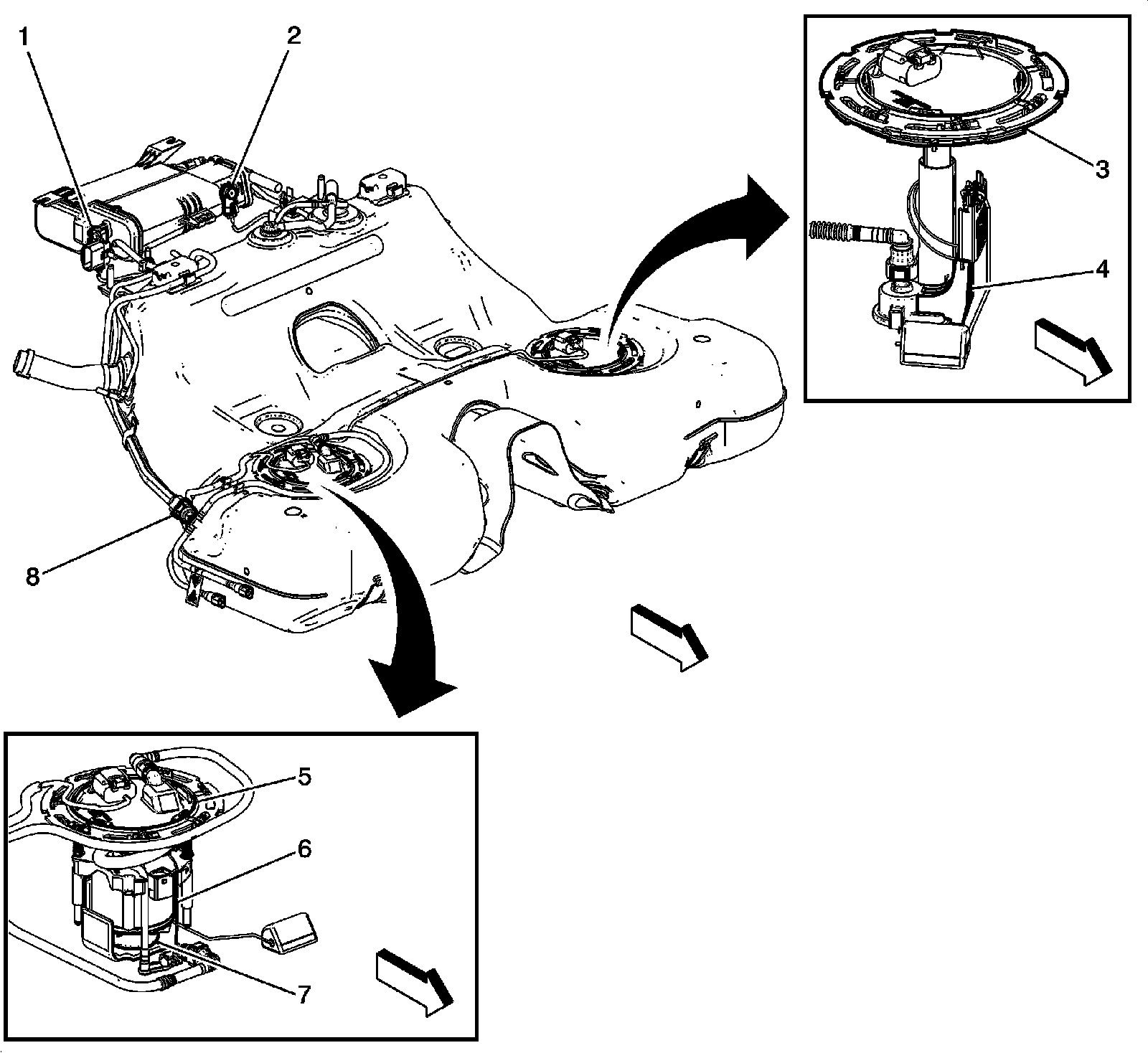

Fuel Tank Components (LSA)
1 - Fuel Tank Pressure Sensor
2 - Evaporative Emission (EVAP) Canister Vent Solenoid Valve
3 - Fuel Level Sensor Assembly
4 - Fuel Level Sensor- Secondary
5 - Fuel Pump and Sender Assembly
6 - Fuel Level Sensor- Primary
7 - Fuel Pump- Primary and Fuel Pump- Secondary
8 - Fuel Pressure Sensor
