2013 Cadillac CTS Coupe RWD V8-6.2L SCFACTORY OEM SERVICE PROCEDURE
Behind the Instrument Panel Components (Left Hand Drive)
Instrument Panel/Center Console Component Views

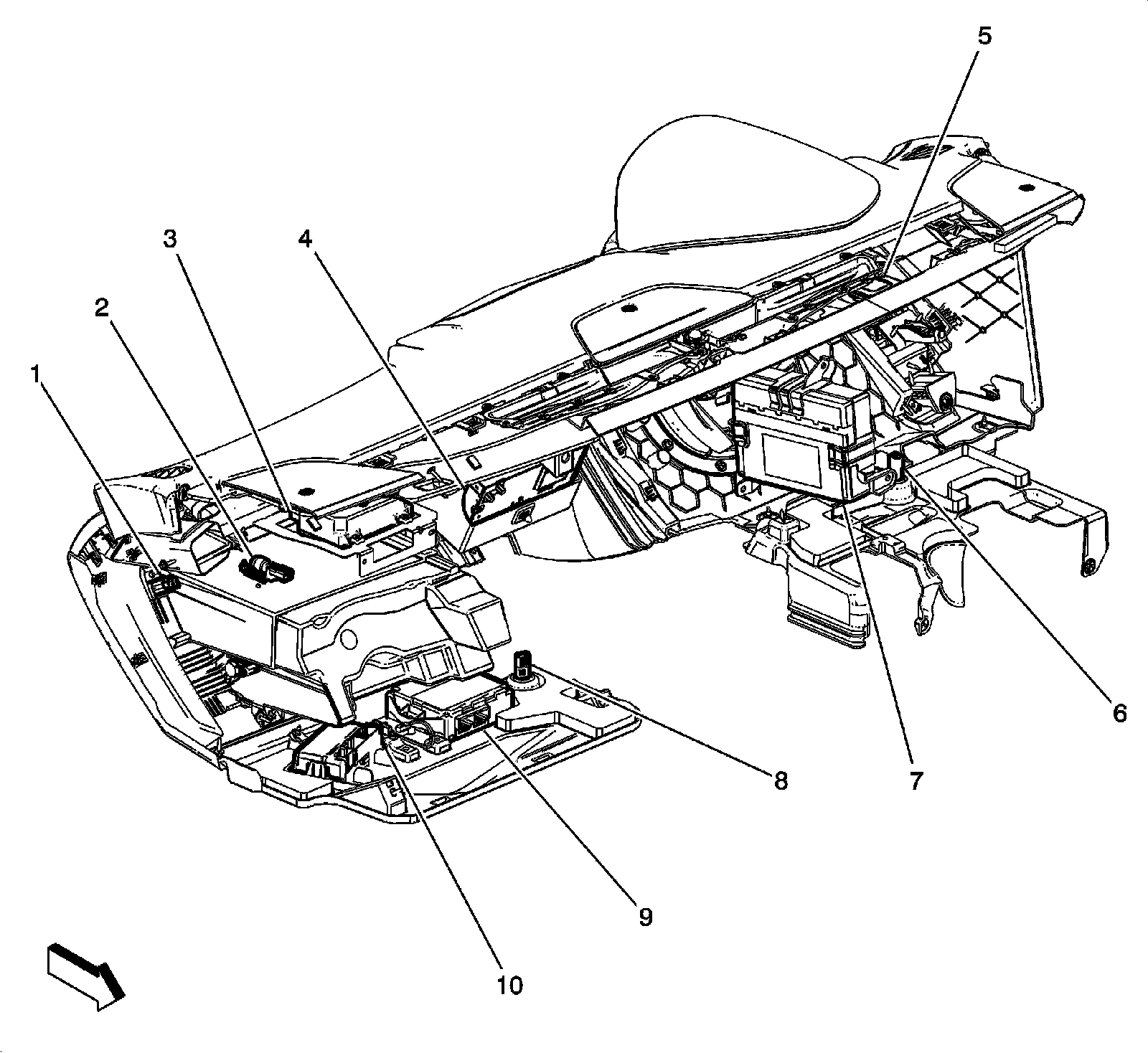

Behind the Instrument Panel Components (Left Hand Drive)
1 - I/P Compartment Lamp Switch
2 - I/P Compartment Lamp
3 - Vehicle Communication Interface Module (VCIM) (UE1) or Pedestrian Impact Detection Module (B3T)
4 - Radio
5 - Navigation Antenna (U2U, U2V or UAV)
6 - I/P Courtesy Lamp- Left
7 - Body Control Module (BCM)
8 - I/P Courtesy Lamp- Right
9 - HVAC Control Module
10 - Transfer Case Shift Control Module (MX7)
