2011 Cadillac STS AWDFACTORY OEM SERVICE PROCEDURE

Rearview Camera Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

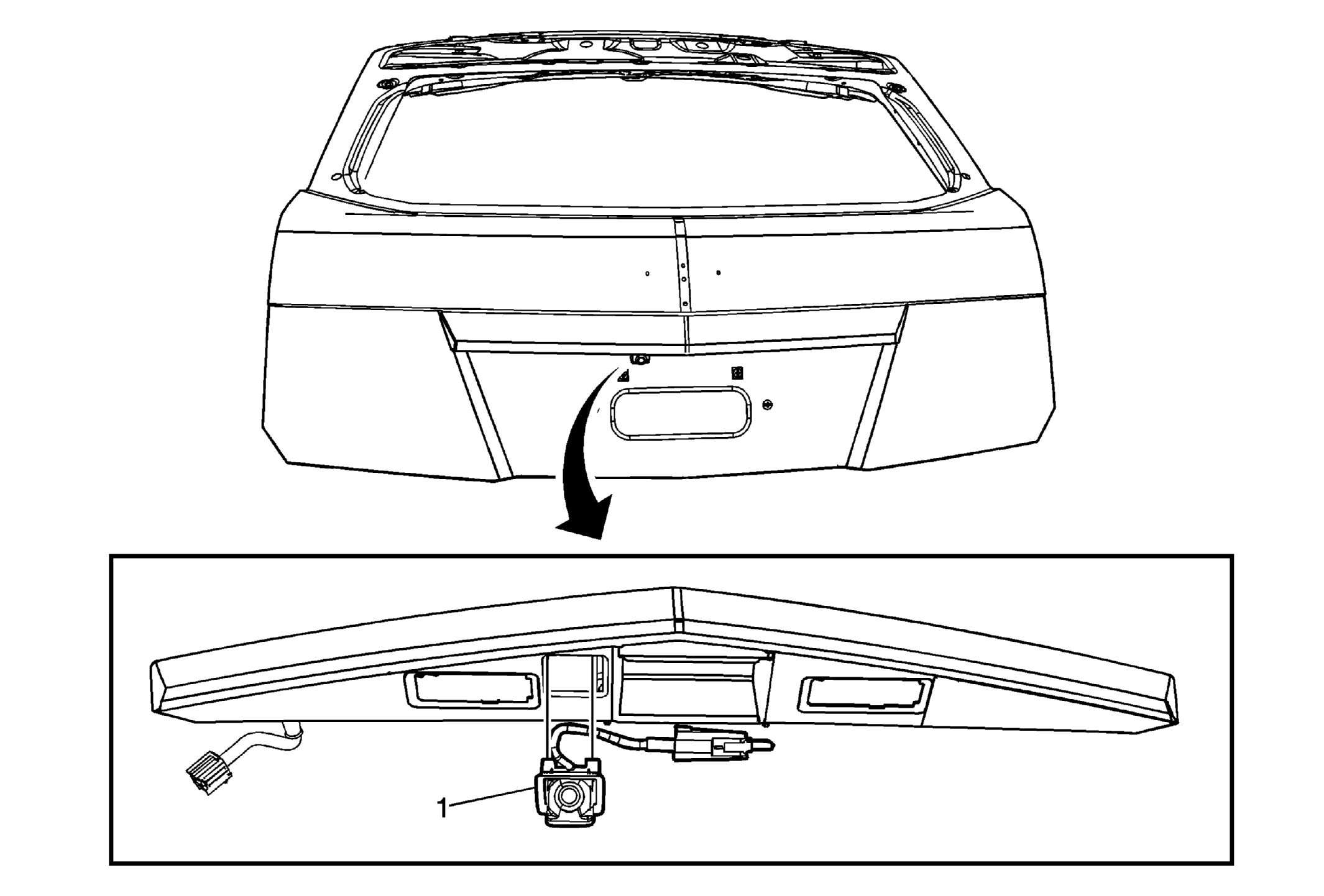

Fig 1: Identifying Rearview Camera

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure:
Remove the liftgate center applique. Refer to Liftgate Center Applique Replacement .

Rearview Camera

Procedure

Disconnect the electrical connector.
Depress the clip fingers and push outward to remove the rearview camera from the applique.
