2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Trailer Brake Control Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Front of the I/P -YE9
GM1855926Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Driver Information (DIC) Switch
2 Instrument Panel Cluster (IPC)
3 Radio
4 Ambient Light/Sunload Sensor Assembly (CJ2) / Ambient Light Sensor (C67/C42)
5 HVAC Control Module
6 Inflatable Restraint I/P Module Disable Switch (C99)
7 Power Take-Off (PTO) Switch
8 Auxiliary Power Outlet - Front 2
9 I/P Multifunction Switch Assembly
10 Auxiliary Power Outlet - Front 1
11 Transfer Case Shift Control Switch (NQF/NQH)
12 Trailer Brake Control Panel Switch (JL1)
13 Headlamp and Panel Dimmer Switch
Fig 2: Front of the I/P +YE9
GM1909163Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Cluster (IPC)
2 Inflatable Restraint Steering Wheel Module
3 Shift Control Lever
4 Ambient Light/Sunload Sensor Assembly (CJ2)/Ambient Light Sensor (C67/C42)
5 Speaker - Center (UQA +Y91)
6 Radio
7 Inflatable Restraint I/P Module
8 I/P Compartment Lamp
9 HVAC Control Module
10 Auxiliary Power Outlet - Front 2
11 I/P Multifunction Switch Assembly
12 Auxiliary Power Outlet - Front 1
13 Driver Information Center (DIC) Switch
14 Steering Wheel Control Switch Assembly - Right (UK3)
15 Steering Wheel Control Switch Assembly - Left (K34/KA9)
16 Trailer Brake Control Panel Switch (JL1)
17 Headlamp and Panel Dimmer Switch
18 Dimmer Control
19 Transfer Case Shift Control Switch (NQF/NQH)
20 Turn Signal Multifunction Switch

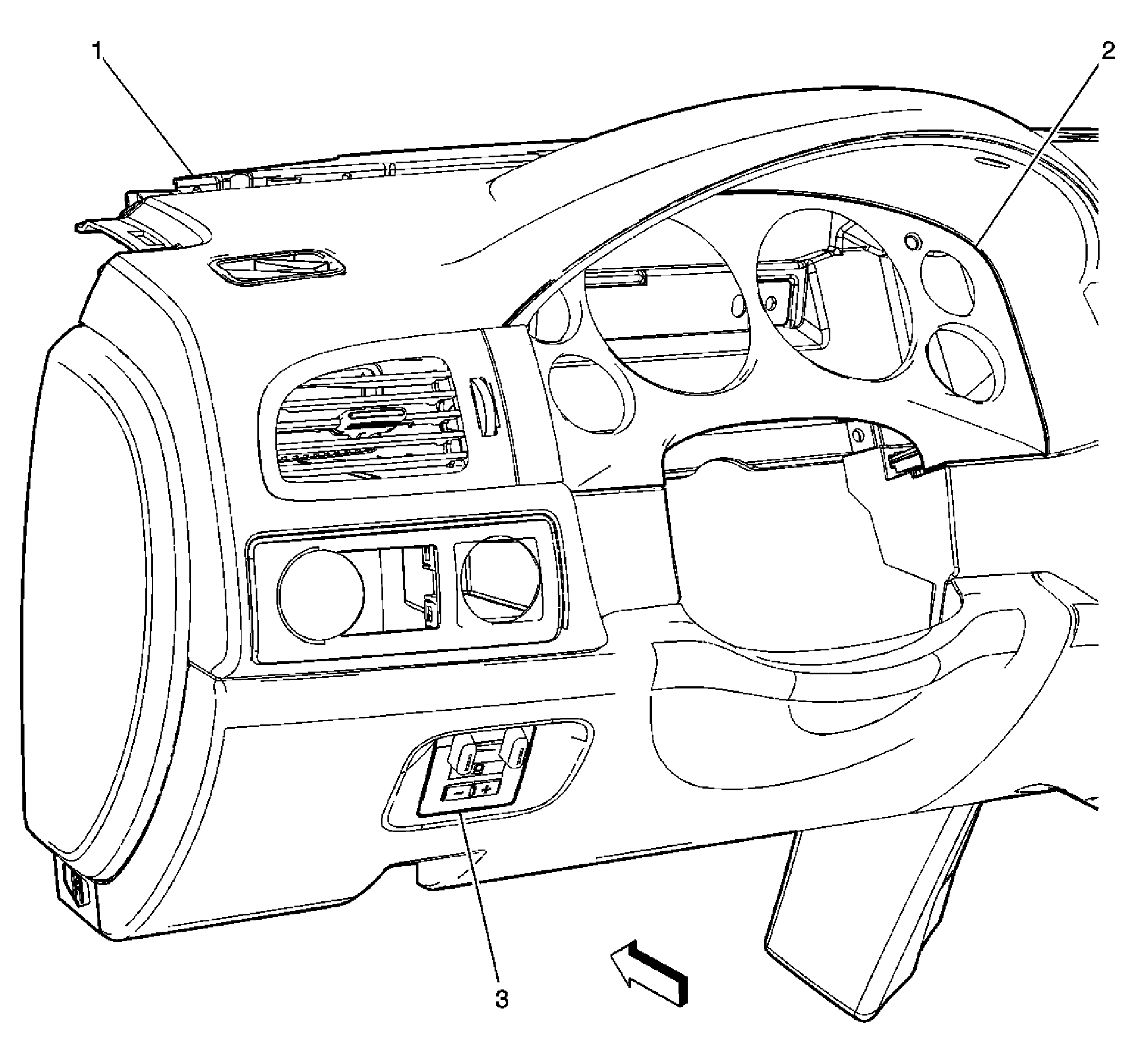

Fig 3: Left Side of I/P
GM1860655Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Trim
2 I/P Cluster Trim
3 Trailer Brake Controller Switch

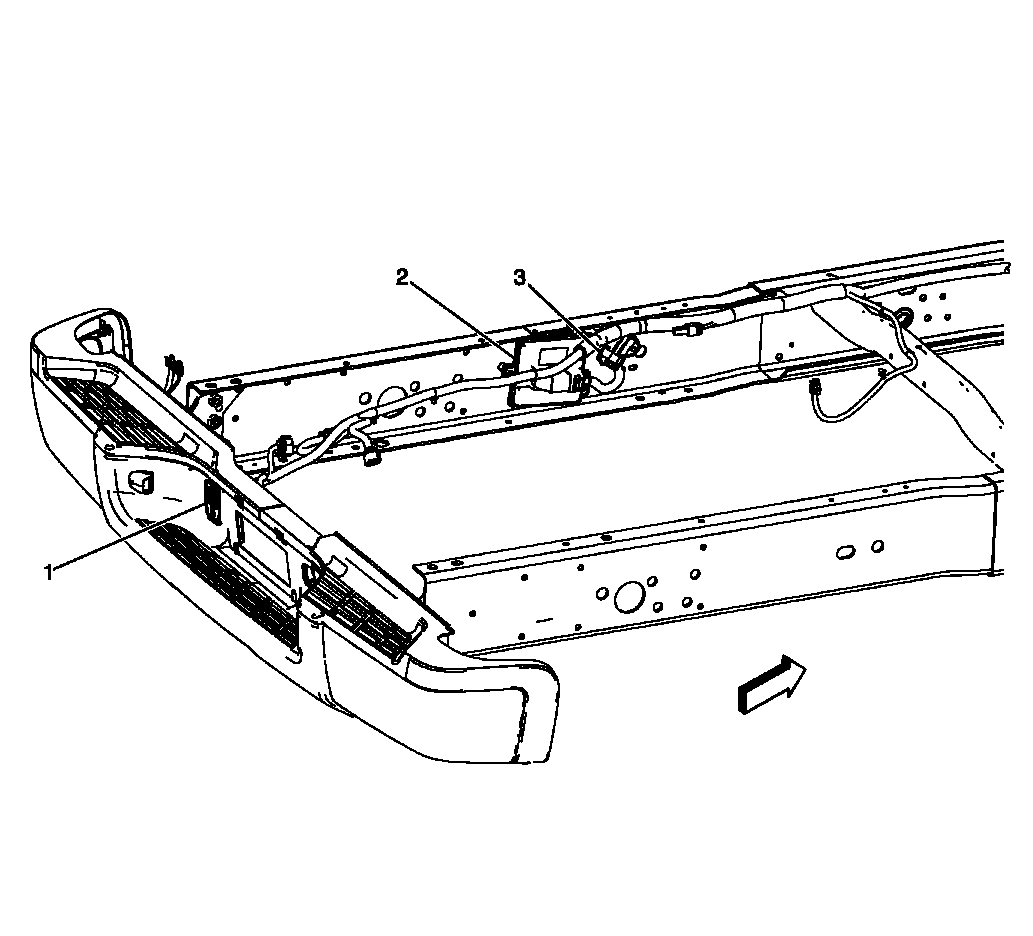

Fig 4: Left Rear Frame Rail
GM1870631Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Trailer Connector
2 Trailer Brake Controller Module (TBCM)
3 Trailer Brake Controller Solid State Relay
