2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE
Installation Procedure
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

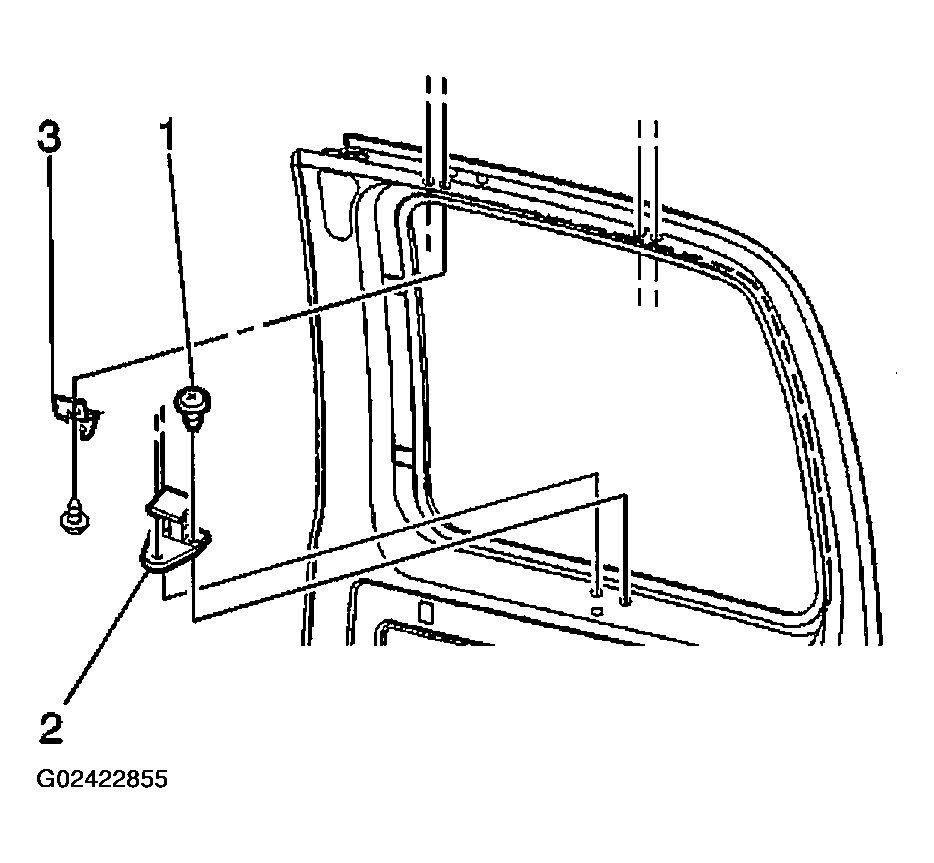

- Install the window assembly to the vehicle.CAUTION: Refer to FASTENER NOTICE .
- Install the screws that retain the hinge (3) to the door.
Tighten
Tighten the screws to 3 N.m (27 lb in).
- Install the screws (1) that retain the latch to the door.
Tighten
Tighten the screws to 3 N.m (27 lb in).
- Install the rear door trim panel.
