2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

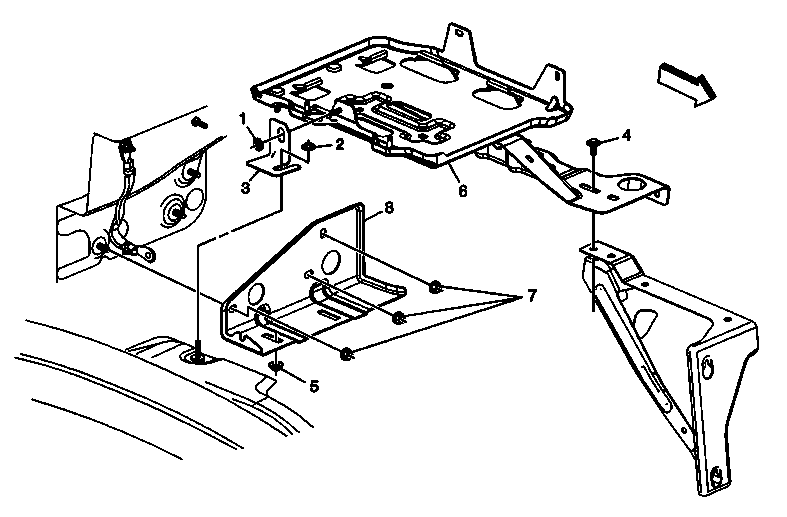

Drive Motor Generator Control Module Assembly Mounting Tray Components
WARNING: This page is about a different car, the 2011 GMC Yukon, 2011 Chevrolet Tahoe, and 2011 Cadillac Escalade. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Accessory DC Power Control Module Tray Bracket to Accessory DC Power Control Module Tray Assembly Nut |
| 2 | Accessory DC Power Control Module Tray Bracket to Front Fender Inner Panel Stud Nut |
| 3 | Accessory DC Power Control Module Tray Bracket |
| 4 | Accessory DC Power Control Module to A/C Support Bracket Bolt |
| 5 | Accessory DC Power Control Module Tray Bracket to Accessory DC Power Control Module Tray Assembly Nut |
| 6 | Accessory DC Power Control Module Tray Assembly |
| 7 | Accessory DC Power Control Module Tray Bracket to Battery Tray Bracket Studs |
| 8 | Accessory DC Power Control Module Tray Bracket |
