2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE
Removal Procedure
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the drive motor generator control module from the vehicle. Refer to Drive Motor Generator Control Module Assembly Replacement .

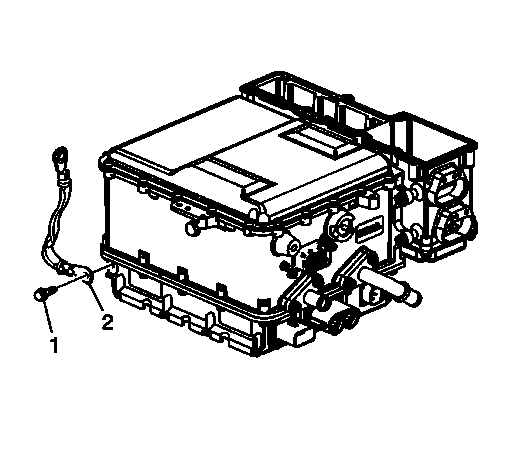

- Remove the APM ground strap bolt (1) and ground strap (2).

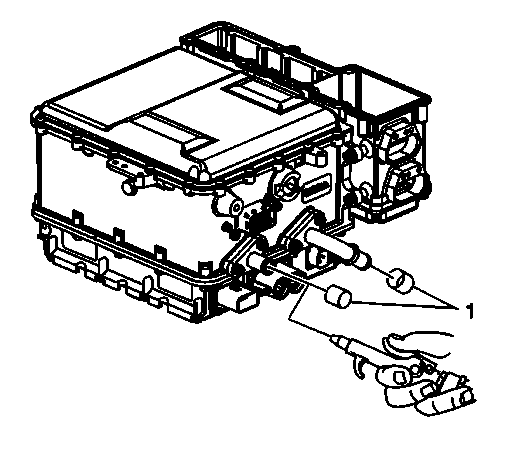

- Remove the temporary coolant pipe caps (1).
CAUTION:
The module must be drained of all residual coolant prior to disassembly. Failure to properly drain all residual coolant may cause electronic circuit damage to occur during disassembly.
