2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

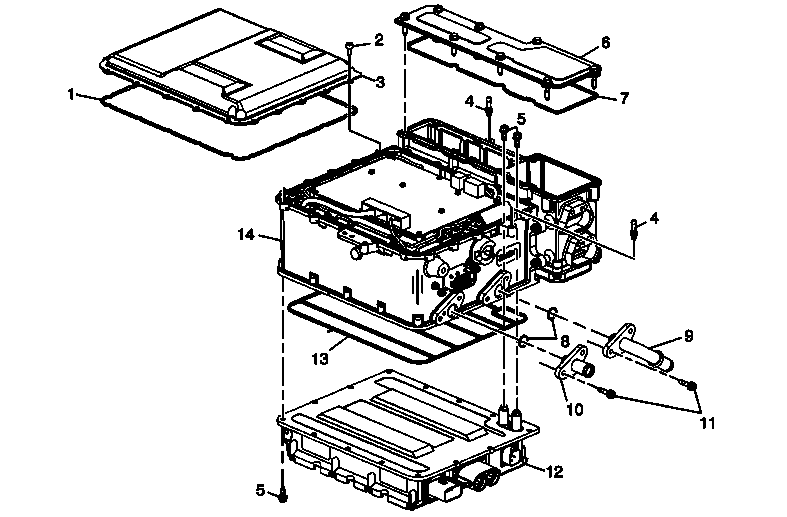

Hybrid Controls Component Views
WARNING: This page is about a different car, the 2008 GMC Yukon and 2008 Chevrolet Tahoe. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Drive Motor Generator Power Inverter Module Cover Seal |
| 2 | Drive Motor Generator Power Inverter Module Cover Bolt |
| 3 | Drive Motor Generator Power Inverter Module Cover |
| 4 | Ball Stud |
| 4 | Ball Stud |
| 5 | Accessory DC Power Control Module (APM) Bolts |
| 6 | Drive Motor Generator Power Inverter Module 3 Phase Cable Cover |
| 7 | Drive Motor Generator Power Inverter Module Cable Housing Cover Seal |
| 8 | Drive Motor Generator Power Inverter Module Coolant Pipe Seals |
| 9 | Drive Motor Generator Power Inverter Module Coolant Outlet Pipe Assembly |
| 10 | Drive Motor Generator Power Inverter Coolant Inlet Pipe Assembly |
| 11 | Drive Motor Generator Power Inverter Coolant Pipe Bolts |
| 12 | Accessory DC Power Control Module (APM) Assembly |
| 13 | Drive Motor Generator Control Module Seal |
| 14 | Drive Motor Generator Power Inverter Module Assembly |
