WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2008 GMC Yukon XL, 2008 GMC Yukon, 2008 Chevrolet Tahoe, 2008 Chevrolet Suburban, and 2008 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

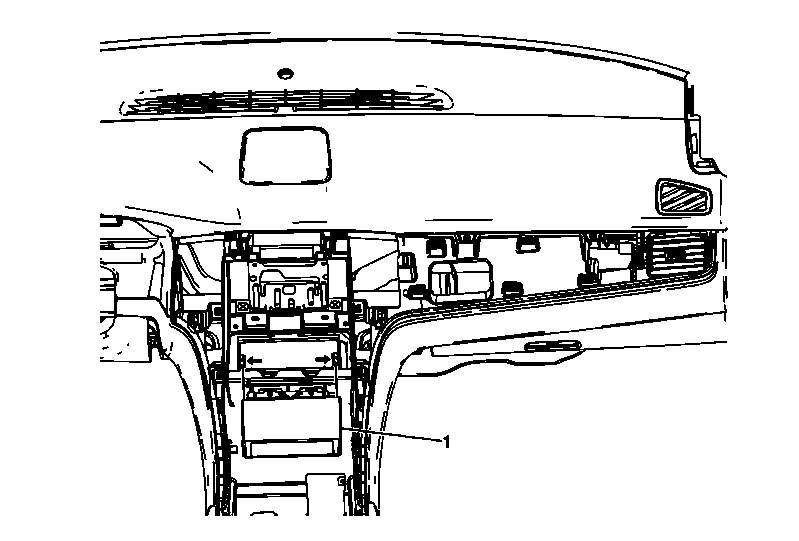

Fig 1: View Of Communication Interface Module

Courtesy of GENERAL MOTORS CORP.

Callout

Component Name

Preliminary Procedure

Remove the instrument Panel Accessory Trim Plate. Refer to Instrument Panel Accessory Trim Plate Replacement (Except Cadillac) or Instrument Panel Accessory Trim Plate Replacement (Cadillac) .
Remove the HVAC Control Module. Refer to HVAC Control Module Replacement or HVAC Control Module Replacement .
Remove the radio. Refer to Radio Replacement (Except Cadillac) or Radio Replacement (Cadillac) .

Communication Interface Module
Tip:

Push outward on the two tabs to release the communication interface module from the bracket.
Disconnect the electrical connectors.
Reprogram the communication interface module after replacement. Refer to Control Module References .
