2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE
Radio Antenna Module Replacement
WARNING: This page is about a different car, the 2008 Cadillac CTS. However, it is still accessible from the selected car via links, so may be relevant.

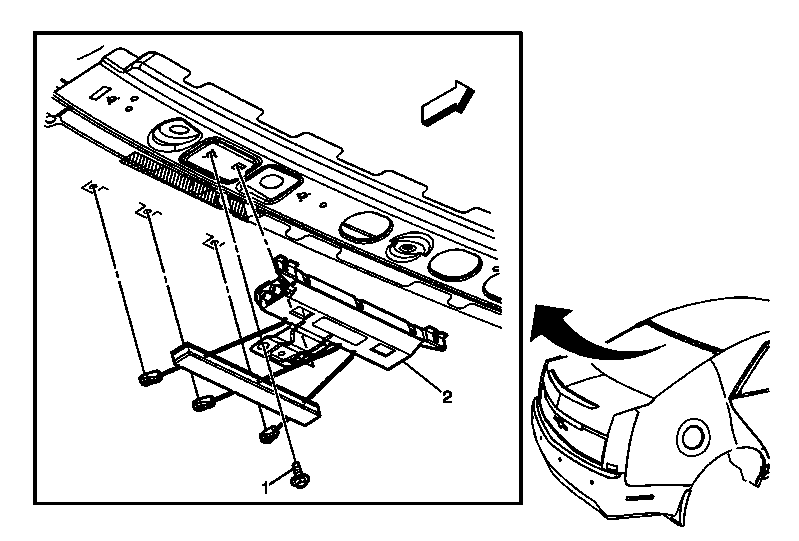

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Lower the rear of the headliner trim panel to access the antenna amplifiers. Refer to Headlining Trim Panel Replacement . |
|
| 1 | Radio Antenna Module Bolt (Qty: 1)
NOTE:
Refer to Fastener Notice
.
Tighten: 9 N.m (80 lb in) |
| 2 | Radio Antenna Module Assembly Procedure
|
