2011 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Installation Procedure

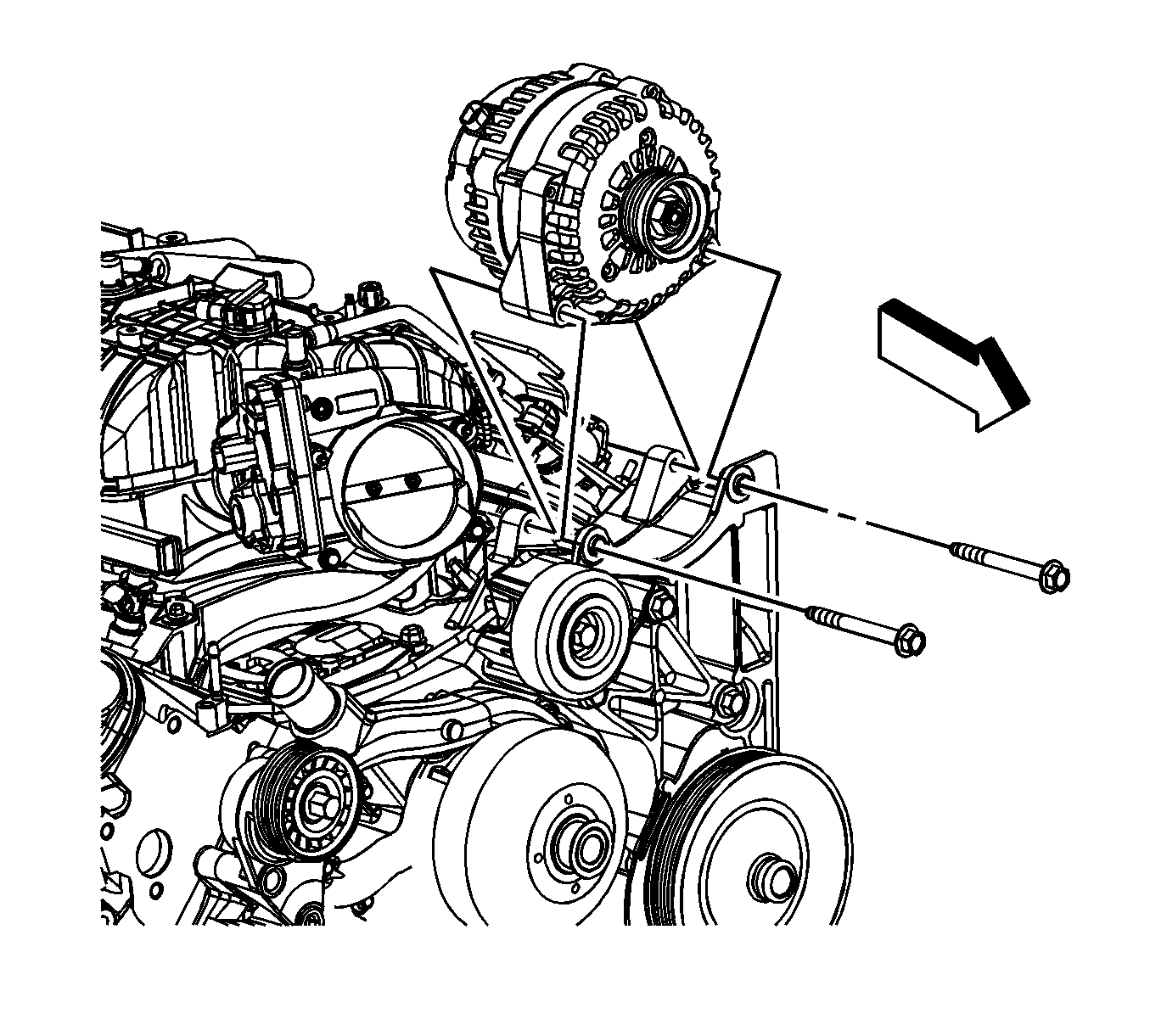

    Fig 1: Generator & Bolts
    GM1702916Courtesy of GENERAL MOTORS CORP.
  1. Install the generator.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the generator bolts.

    Tighten

    Tighten the generator bolts to 55 N.m (41 lb ft).

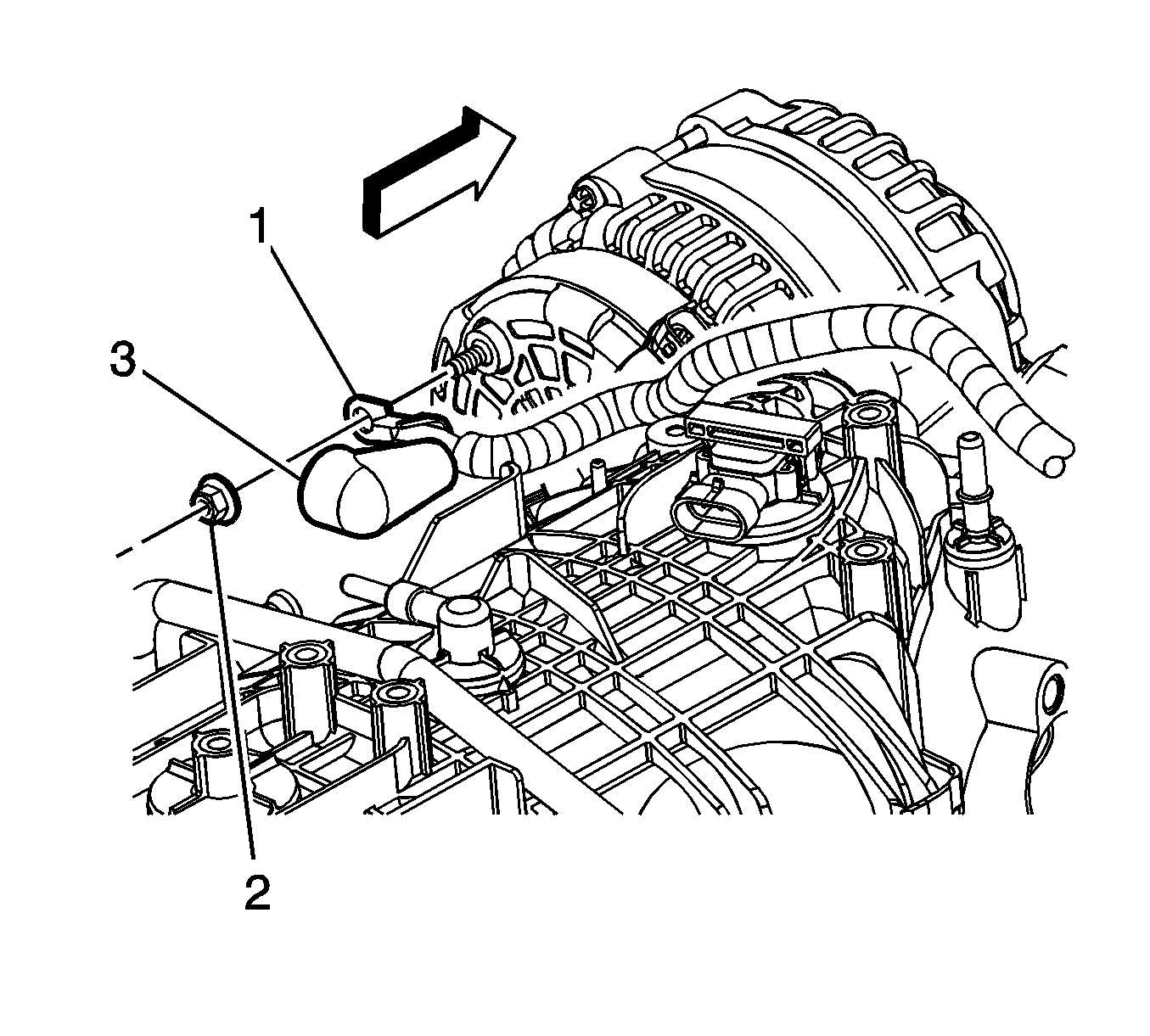

    3. Fig 2: Battery Jumper Cable Terminal, Nut And Bolt
    GM1702914Courtesy of GENERAL MOTORS CORP.
  3. Install the generator battery jumper cable terminal (1) to the generator stud.
  4. Install the battery jumper cable nut (2) to the generator.

    Tighten

    Tighten the cable nut to 9 N.m (80 lb in).

  5. Position the battery jumper cable boot (3).

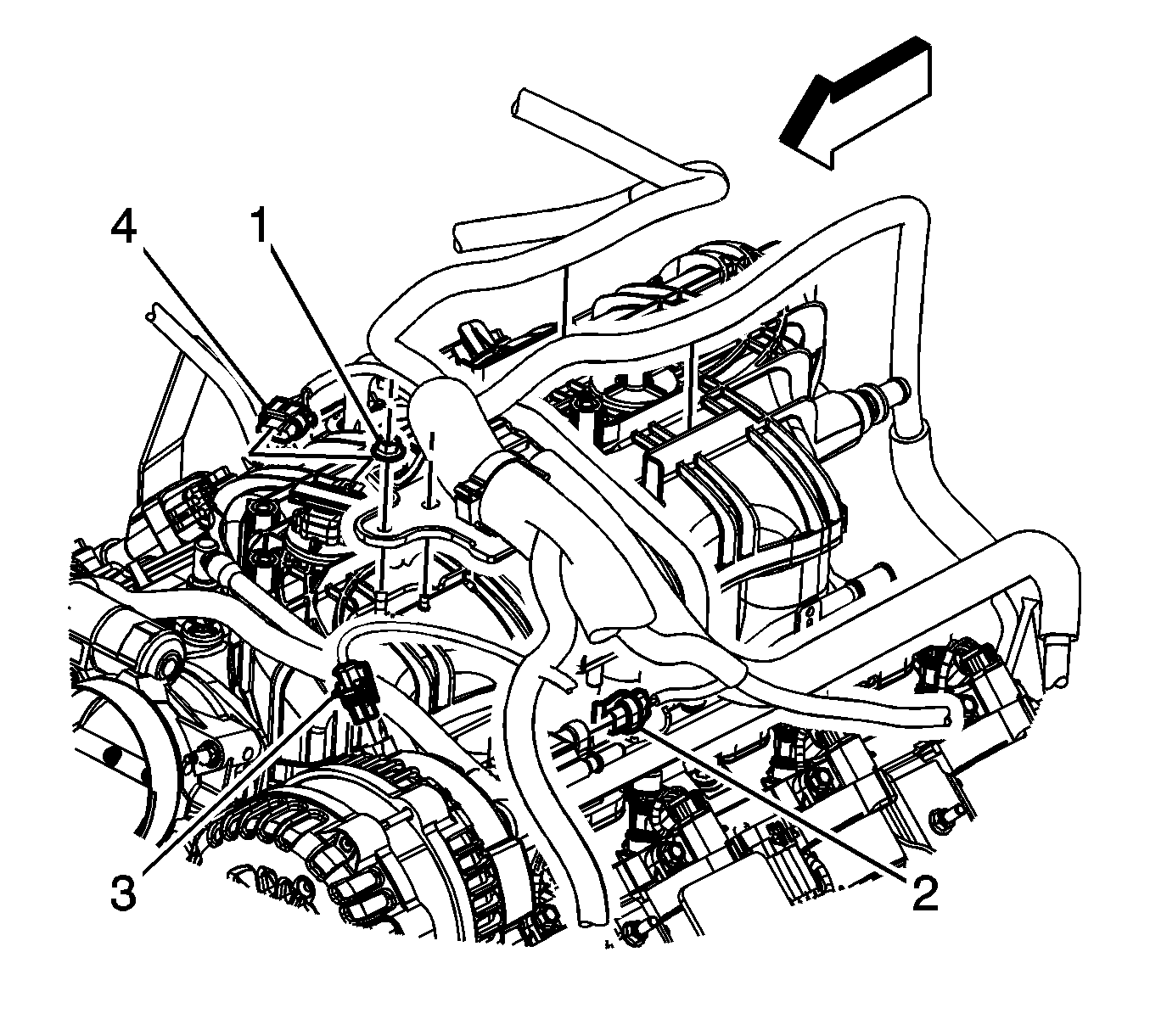

    6. Fig 3: Generator & Related Connectors
    GM1696891Courtesy of GENERAL MOTORS CORP.
  6. Connect the engine harness electrical connector (3) to the generator.
  7. Install the accessory drive belt. Refer to Drive Belt Replacement - Accessory .
  8. Install the intake manifold sight shield. Refer to Upper Intake Manifold Sight Shield Replacement .
  9. Connect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
