Accessory AC and DC Power Control Module Replacement

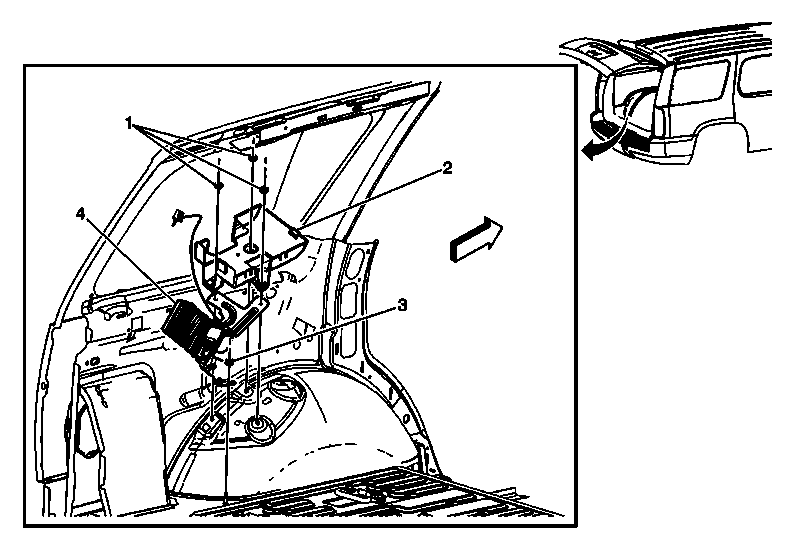

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the left side rear quarter trim panel. Refer to Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/E61) , Rear Quarter Trim Panel Replacement - Left Side (Extended Wheelbase w/o E61) , Rear Quarter Trim Panel Replacement - Left Side (Standard Wheelbase w/o E61) . |
|
| 1 | Tire Inflator Bracket Nut (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Tire Inflator Bracket |
| 3 | Accessory AC and DC Power Control Module Nut Tighten 9 N.m (80 lb in) |
| 4 | Accessory AC and DC Power Control Module Procedure
|
