2011 Cadillac CTS V, 2D Coupe, StandardFACTORY OEM SERVICE PROCEDURE

Removal Procedure

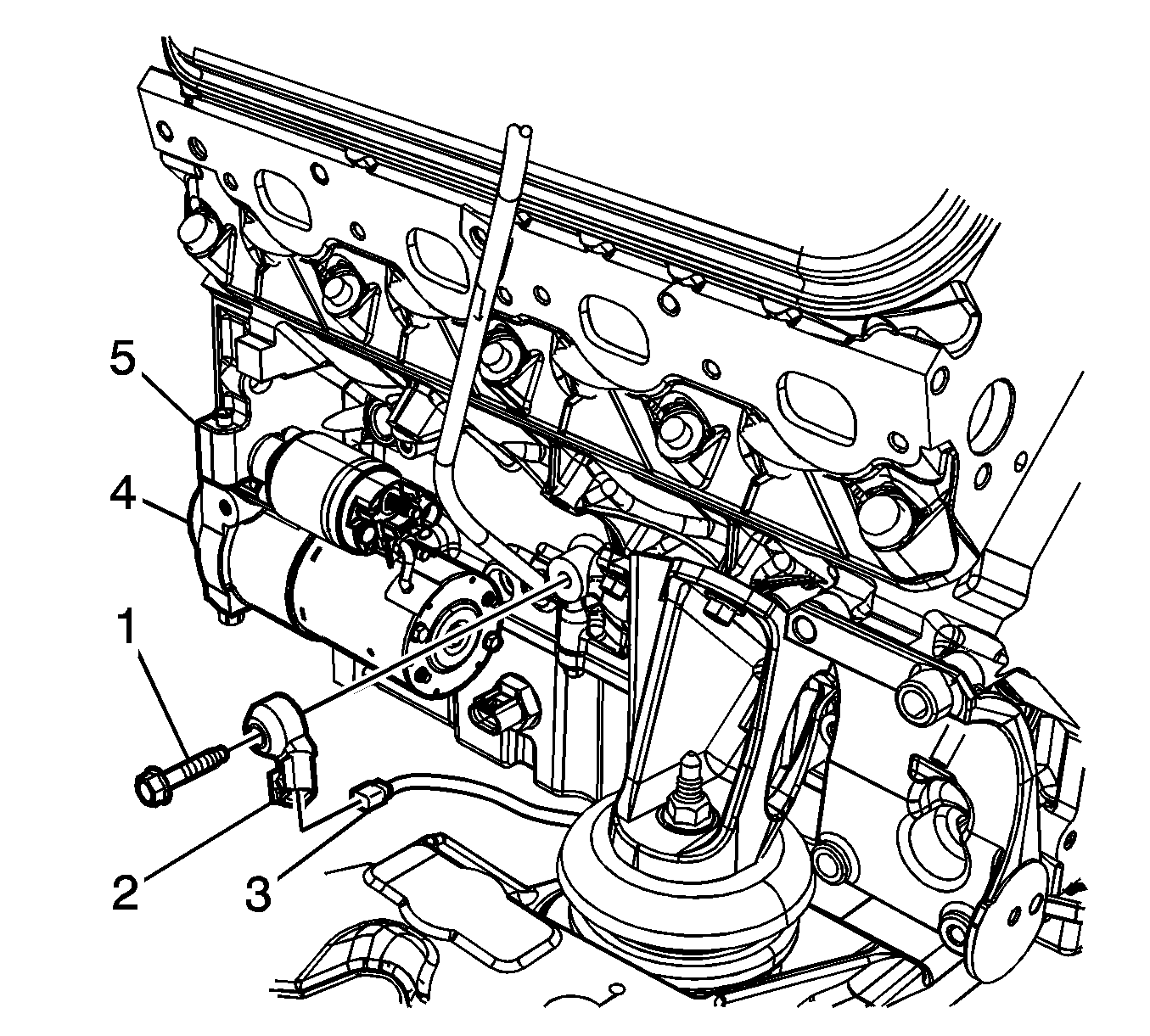

    Fig 1: Knock Sensor, Starter Assembly, Engine Electrical Connector & Engine Block - Right Side
    GM1480896Courtesy of GENERAL MOTORS CORP.
  1. Remove the right exhaust manifold. Refer to Exhaust Manifold Replacement - Right Side (LLT) or Exhaust Manifold Replacement - Right Side (LSA) .
  2. Remove the right catalytic convertor. Refer to Catalytic Converter Replacement - Right Side (LF1) or Catalytic Converter Replacement - Right Side (LLT) or Catalytic Converter Replacement - Right Side (LSA) .
    3. NOTE: In the following service procedure, it maybe necessary to remove the starter assembly to gain enough clearance to remove the knock sensor.
  3. Remove the starter assembly (4), ONLY IF NEEDED. Refer to Starter Replacement (LF1/LLT) or Starter Replacement (LSA) .
  4. Remove the knock sensor mounting (1).
  5. Remove the knock sensor (2) from the engine block (5).
  6. Disconnect the engine electrical connector (3) from the knock sensor (2).
  7. Remove the knock sensor (2).
