2011 Cadillac CTS V, 2D Coupe, StandardFACTORY OEM SERVICE PROCEDURE

Air Cleaner Assembly Replacement

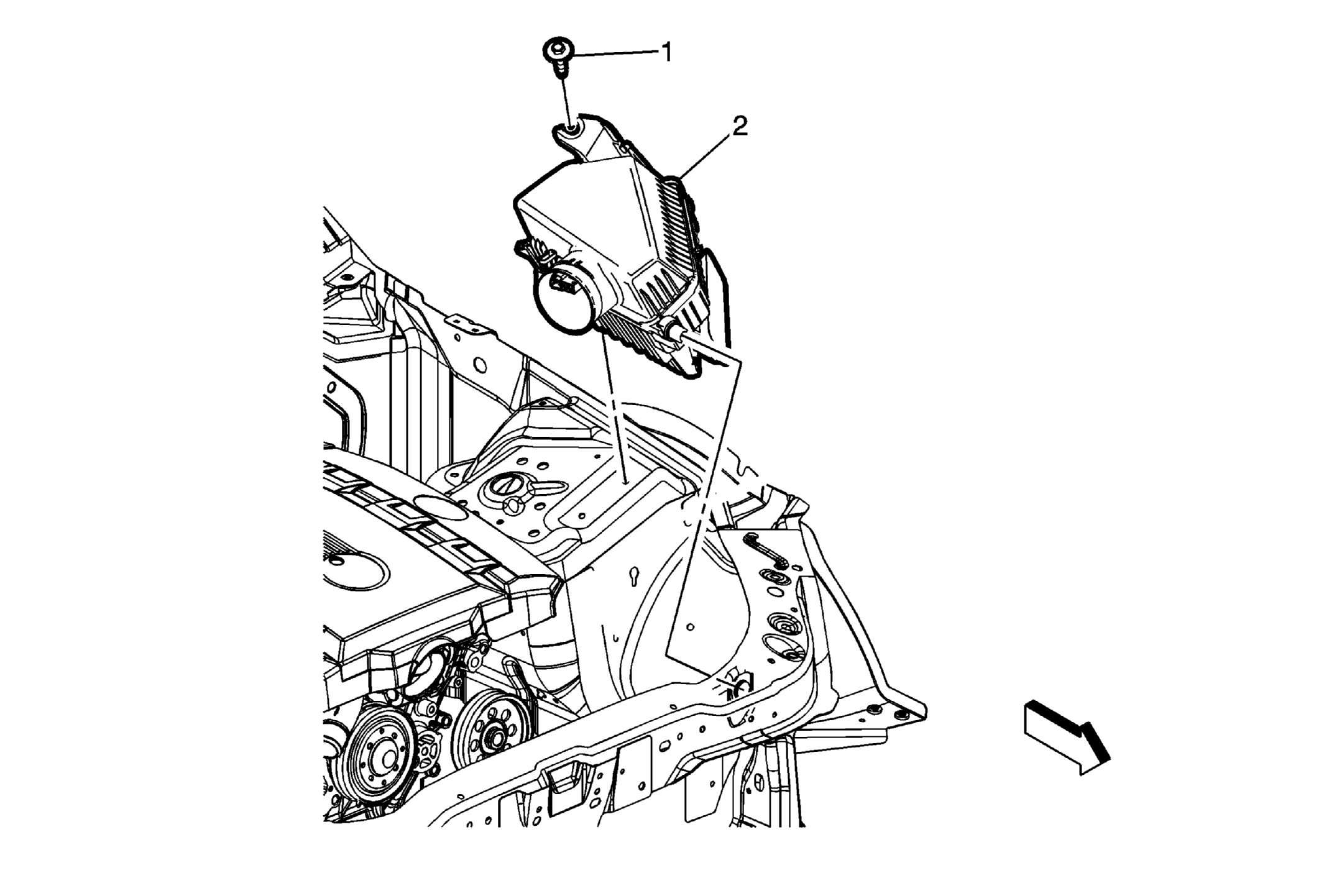

Fig 1: Air Cleaner Assembly
GM2524944Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedures

  1. Remove the sight shield. Refer to Front Compartment Side Sight Shield Replacement .
  2. Remove the air cleaner outlet duct. Refer to Air Cleaner Resonator Outlet Duct Replacement .
  3. Disconnect the MAF/IAT sensor electrical connector.
1 Air Cleaner Assembly Fastener
CAUTION: Refer to FASTENER CAUTION .

Tighten:  9 N.m (80 lb in)
2 Air Cleaner Assembly

Procedure

  1. Reposition the surge tank bypass hose as necessary.
  2. Disconnect the electrical connectors.
  3. Tilt the assembly rear upward while disengaging the air cleaner isolator.
