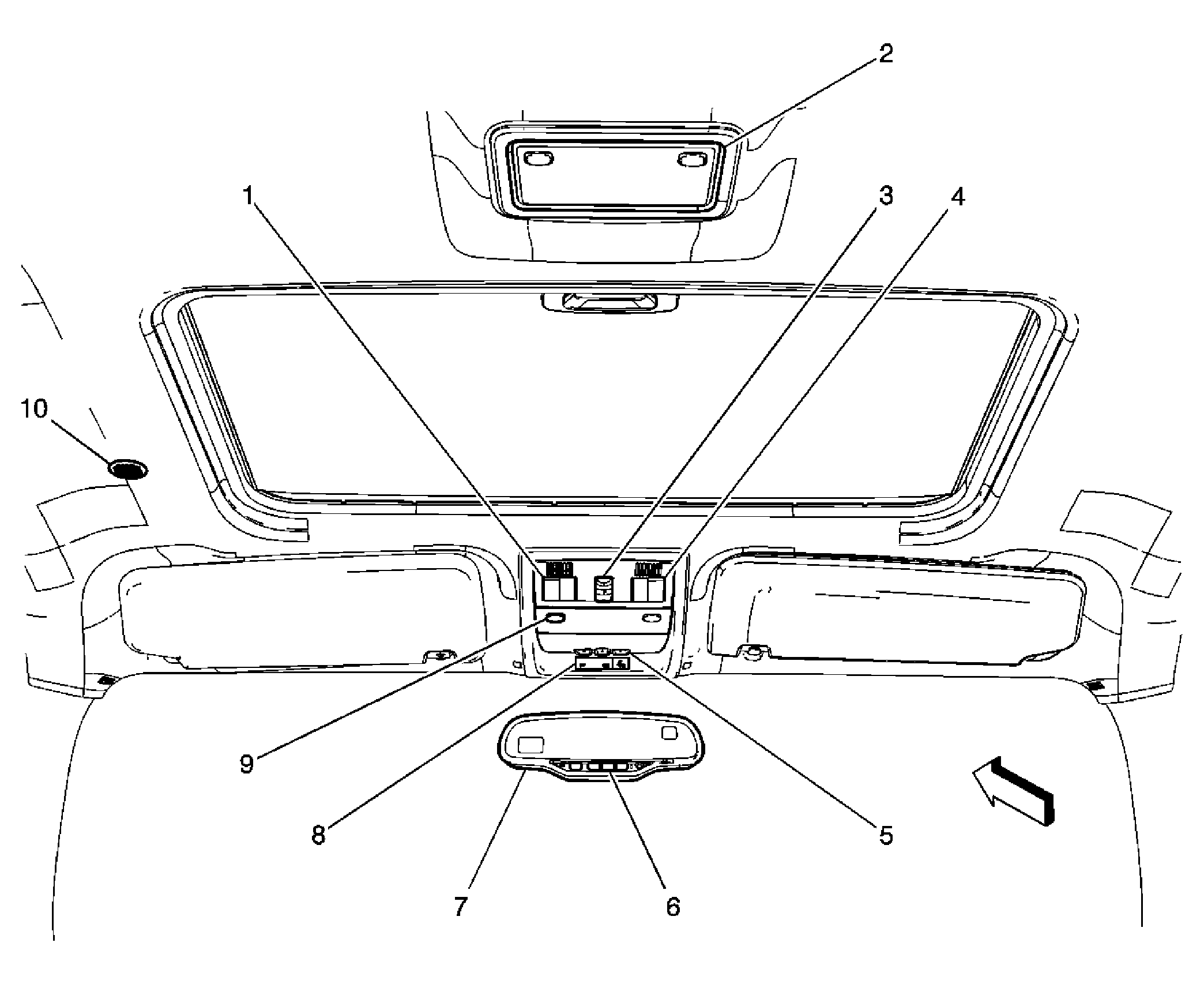

Fig 1: View Of Top Front Of The Passenger Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Sunroof Switch (CF5)
2	Courtesy/Reading Lamps - Second Row
3	Power Liftgate Switch (E61)
4	Folding Seat Switch - Front (ARS)
5	Garage Door Opener (UG1)
6	Onstar Button Assembly (UE1)
7	Inside Rearview Mirror (ISRVM)
8	Inflatable Restraint Passenger Air Bag ON/OFF Indicator
9	Courtesy/Reading Lamp - Front
10	Inside Air Temperature Sensor - Front (CJ2)

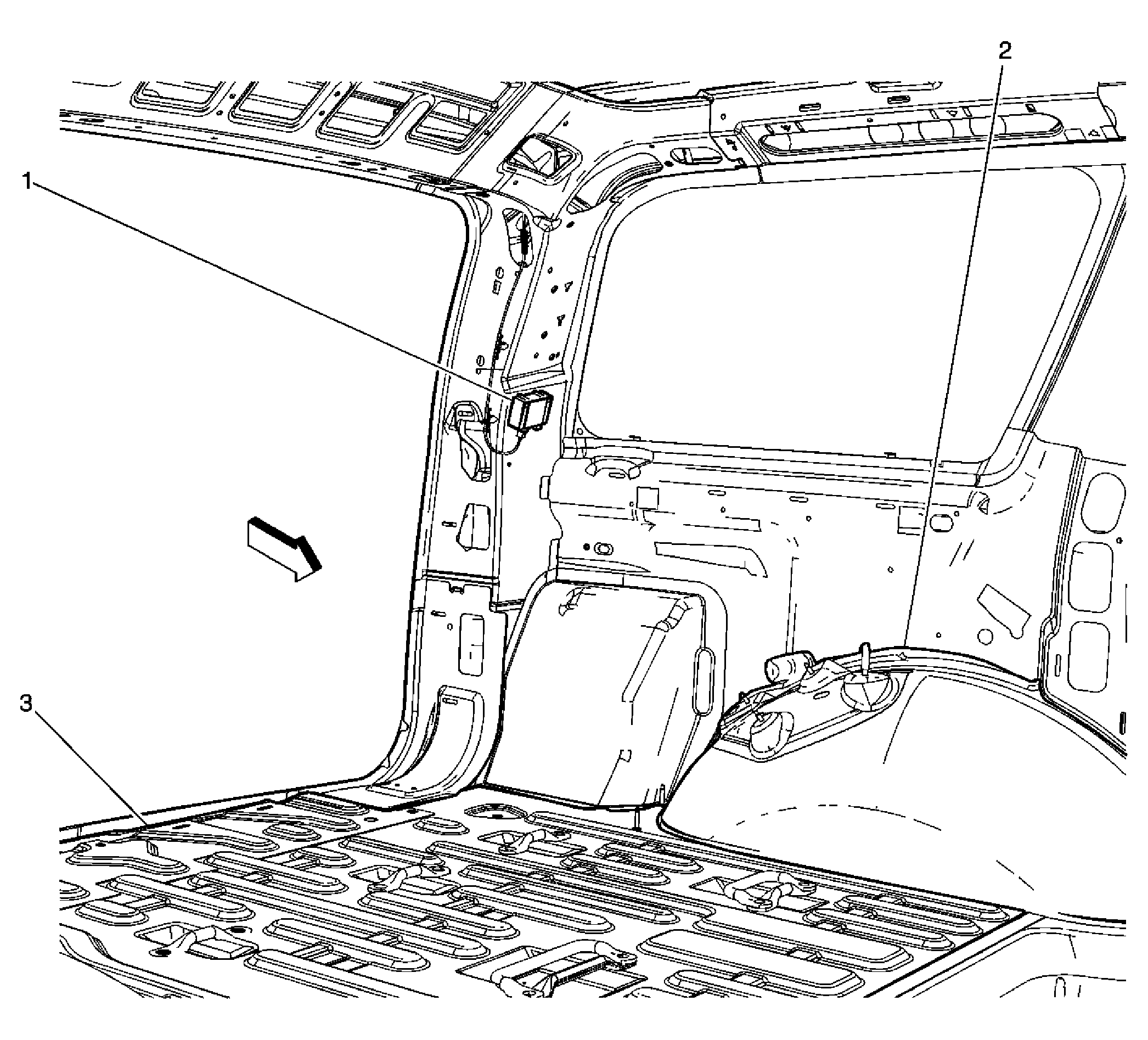

Fig 2: View Of Remote Function Components Near the LR Window (E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
2	LR Wheel Well
3	Rear Floor

Fig 3: View Of Remote Function Components Above The Rear Window (Except E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Defogger Grid
2	Information Center Telltale Assembly (UD7)
3	Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
