2009 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Side Object Sensor Bracket Replacement

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2010 GMC Yukon XL, 2010 GMC Yukon, 2010 Chevrolet Tahoe, 2010 Chevrolet Suburban, and 2010 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.

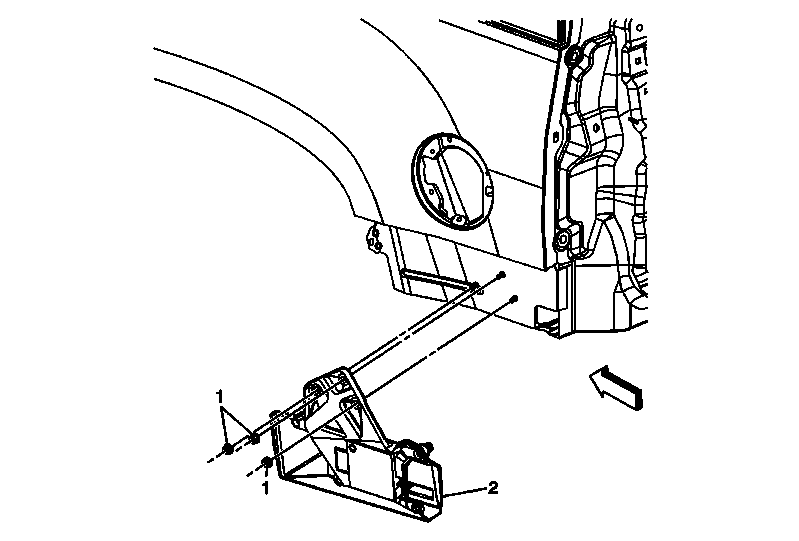

Fig 1: Side Object Sensor Bracket
GM2136064Courtesy of GENERAL MOTORS CORP.
Callout Component Name

Preliminary Procedure

  1. Raise the Vehicle. Refer to Lifting and Jacking the Vehicle
  2. Remove the bumper fascia. Refer to Rear Bumper Fascia Replacement (All Utility, Cadillac ESV) or Rear Bumper Fascia Replacement (Avalanche, Cadillac EXT) .
1 Side Object Sensor Bracket Nuts (Qty: 3)
CAUTION: Refer to Fastener Caution .

Tighten::  6 N.m(53 lb in)
2 Side Object Sensor Bracket
Procedure:
Disconnect the electrical connectors.
