2009 Cadillac Escalade ESV AWDFACTORY OEM SERVICE PROCEDURE

Body Control Module Replacement

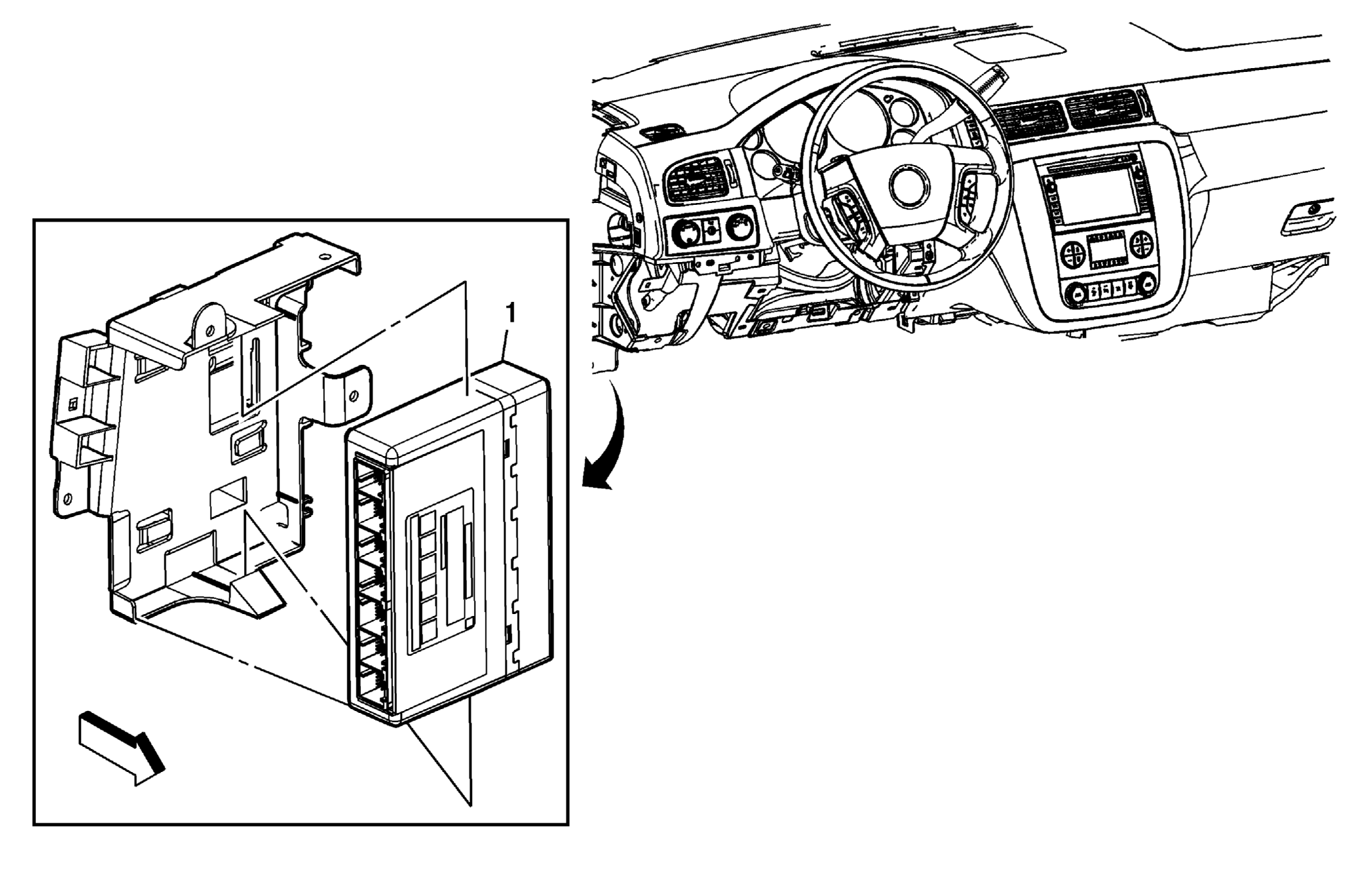

Fig 1: View Of Body Control Module
GM1778708Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedure:
Remove the knee bolster. Refer to Knee Bolster Replacement (Except Cadillac) or Knee Bolster Replacement (Cadillac)
1 Body Control Module
Tip:
  1. Remove the BCM cover.
  2. Disconnect the electrical connectors.
  3. Press on the tabs to release the body control module.
  4. If a replacement module is installed, program the module. Refer to Control Module References .
