2008 Cadillac STS VFACTORY OEM SERVICE PROCEDURE

Acceleration Sensor Module (JL7)

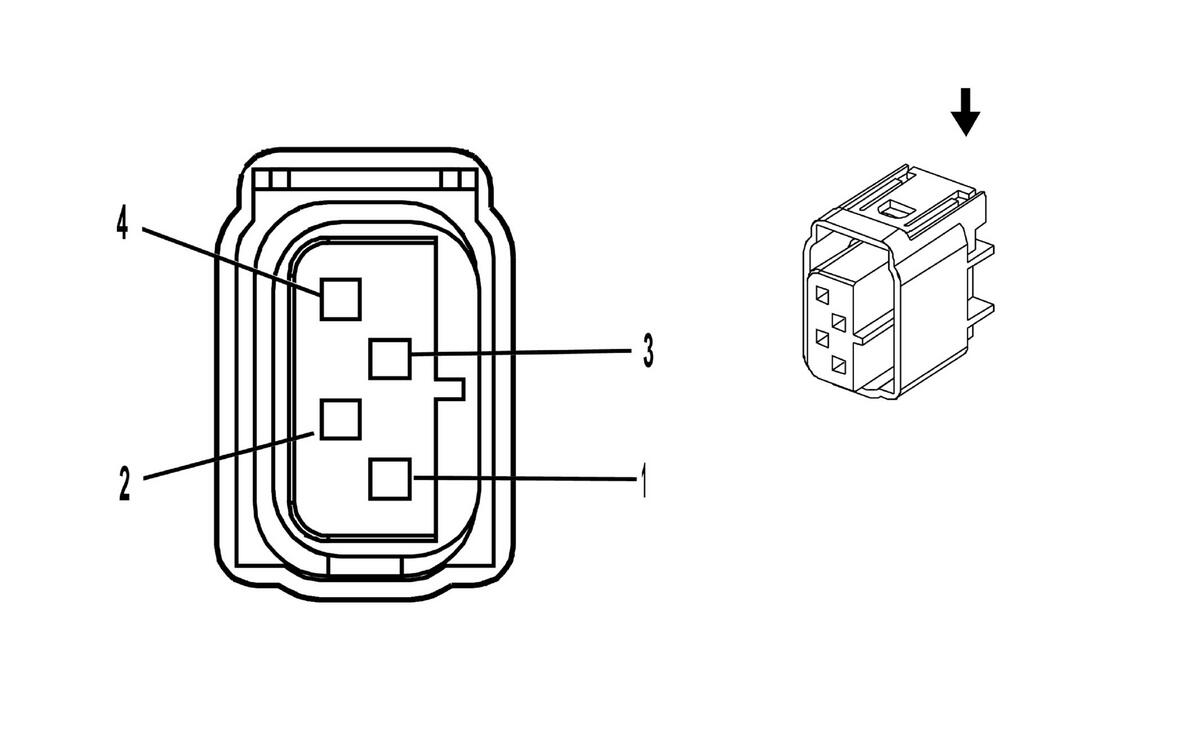

Fig 1: Acceleration Sensor Module (JL7) Connector End View
GM810084Courtesy of GENERAL MOTORS CORP.
Acceleration Sensor Module (JL7)

Pin Wire Circuit Function
1 0.35 BK/WH 551 Ground
2 0.35 L-GN/BK 6432 CAN Bus Low Serial Data
3 0.35 TN/WH 6433 CAN Bus High Serial Data
4 0.35 BN 241 IGN 1 Voltage
Connector Part Information
  • OEM: 2-967640-1
  • Service: See Catalog
  • Description: 4-Way F MQS Socket Housing Sealed (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
