2008 Cadillac STS VFACTORY OEM SERVICE PROCEDURE

Distance Sensing Cruise Control Module Replacement

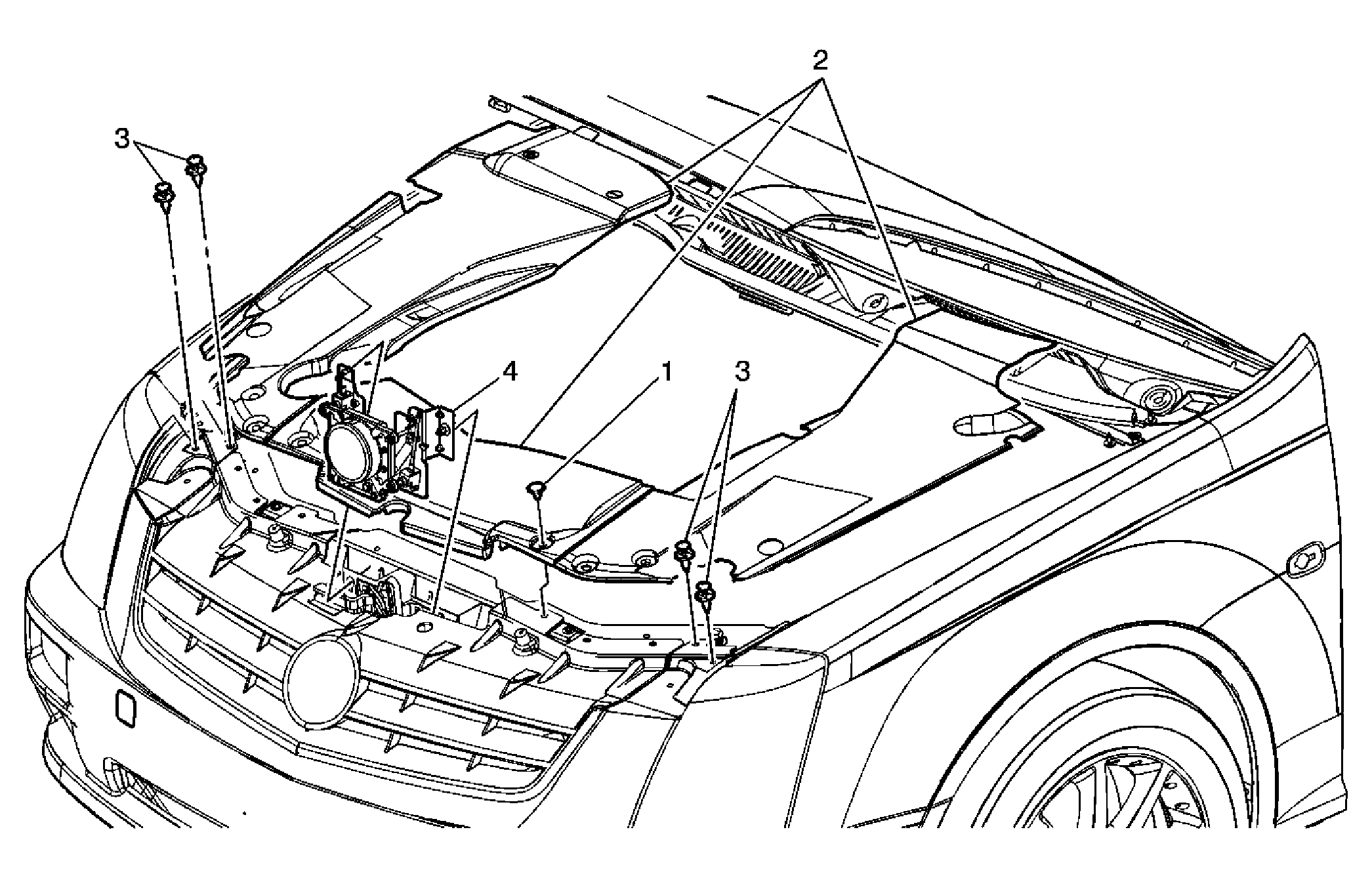

Fig 1: View Of Distance Sensing Cruise Control Module
GM1488807Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Front Compartment Sight Shield Retainer (Qty: 6)
2 Front Compartment Sight Shield Assembly
Tip:  The center sight shield needs to be removed, the side sight shields only need to be loosened.
3 Front Fascia Assembly Retainer (Qty: 4)
Tip:
  1. Remove the 4 retainers to loosen the fascia assembly.
  2. Pull the front fascia assembly forward to gain access to the cruise control module nuts.
4 Cruise Control Module Assembly
NOTE: Refer to Fastener Notice

Tip:
  1. Loosen the nuts that hold the cruise control module into the T-slots on the tie bar.
  2. Disconnect the electrical connector.
  3. Slide the module out of the T-slots on the bracket.
  4. Replace the module by sliding the assembly into the T-slots on the bracket and tighten.
  5. Verify proper alignment of the module. Refer to Control Module References for programming and setup information.

Tighten:  9 N.m (80 lb in)
