2008 Cadillac Escalade RWD V8-6.2LFACTORY OEM SERVICE PROCEDURE

Wheel Speed Sensor: Locations



Wheels/Vehicle Underbody Component Views

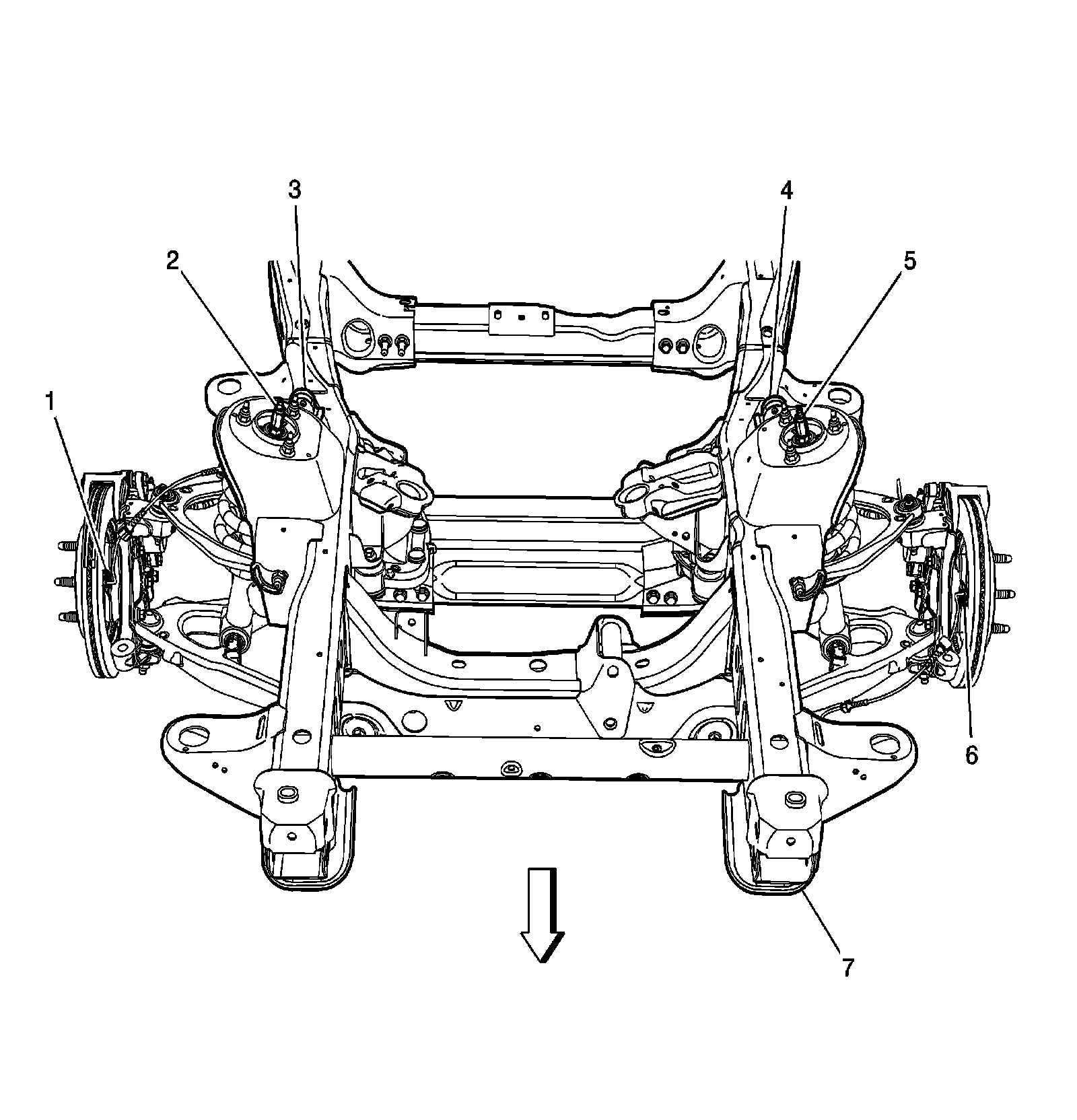

Front Frame and Underbody Components

Factory service manual diagram



1 - Wheel Speed Sensor (WSS) - Right Front
2 - Suspension Damper Solenoid - Right Front (Z55)
3 - Suspension Position Sensor - Right Front (Z55)
4 - Suspension Position Sensor - Left Front (Z55)
5 - Suspension Damper Solenoid - Left Front (Z55)
6 - Wheel Speed Sensor (WSS) - Left Front
7 - Frame

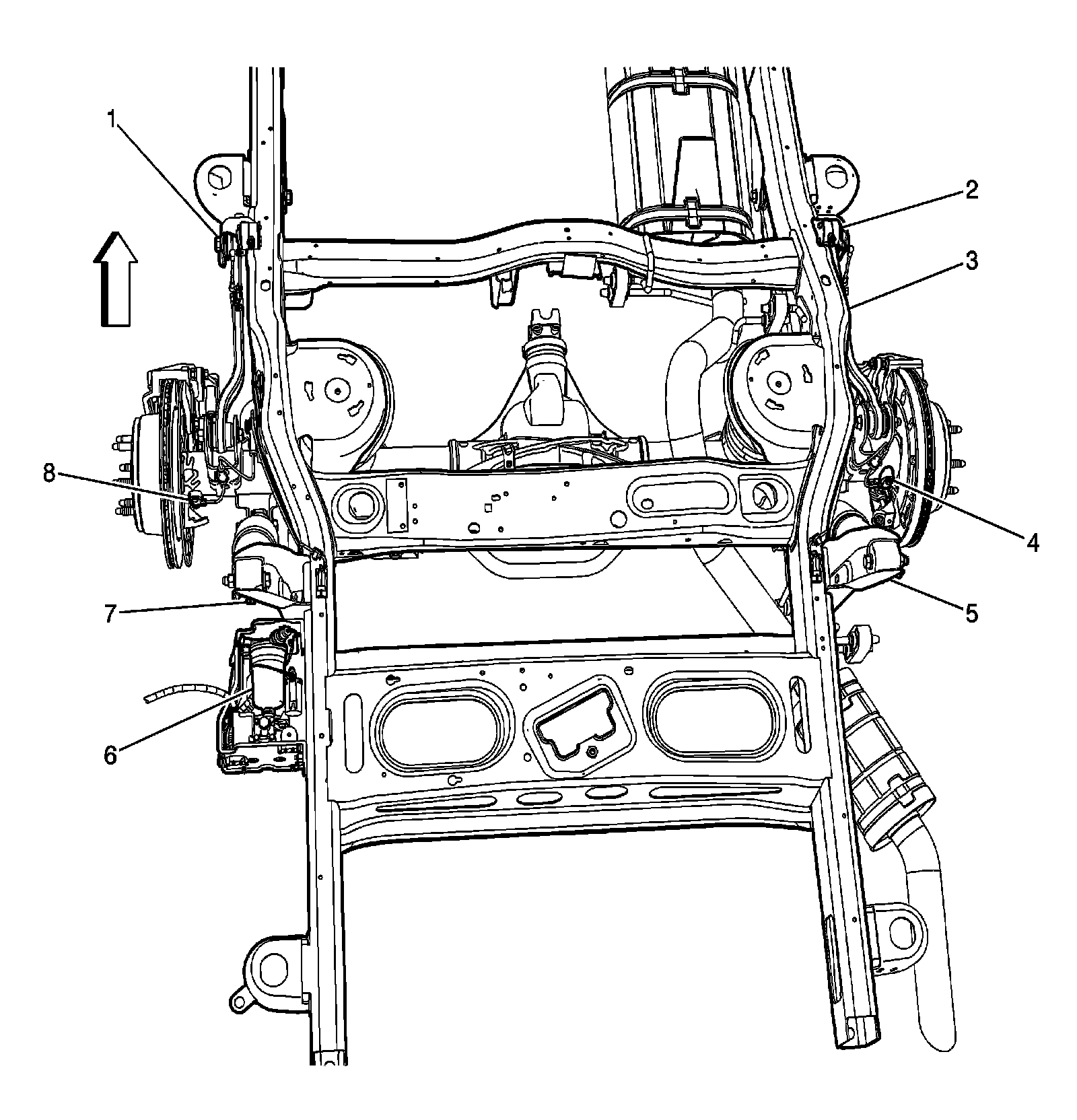

Rear Frame and Underbody Components - 2 of 2

Factory service manual diagram



1 - Suspension Position Sensor - Left Rear (Z55/G69)
2 - Suspension Position Sensor - Right Rear (Z55/G69)
3 - Frame
4 - Wheel Speed Sensor (WSS) - Right Rear
5 - Suspension Damper Solenoid - Right Rear (Z55)
6 - Automatic Level Control (ALC) Air Compressor Assembly (Z55)
7 - Suspension Damper Solenoid - Left Rear (Z55)
8 - Wheel Speed Sensor (WSS) - Left Rear
