2008 Cadillac Escalade RWD V8-6.2LFACTORY OEM SERVICE PROCEDURE
Memory Positioning Module: Locations
Passenger Compartment/Roof Component Views

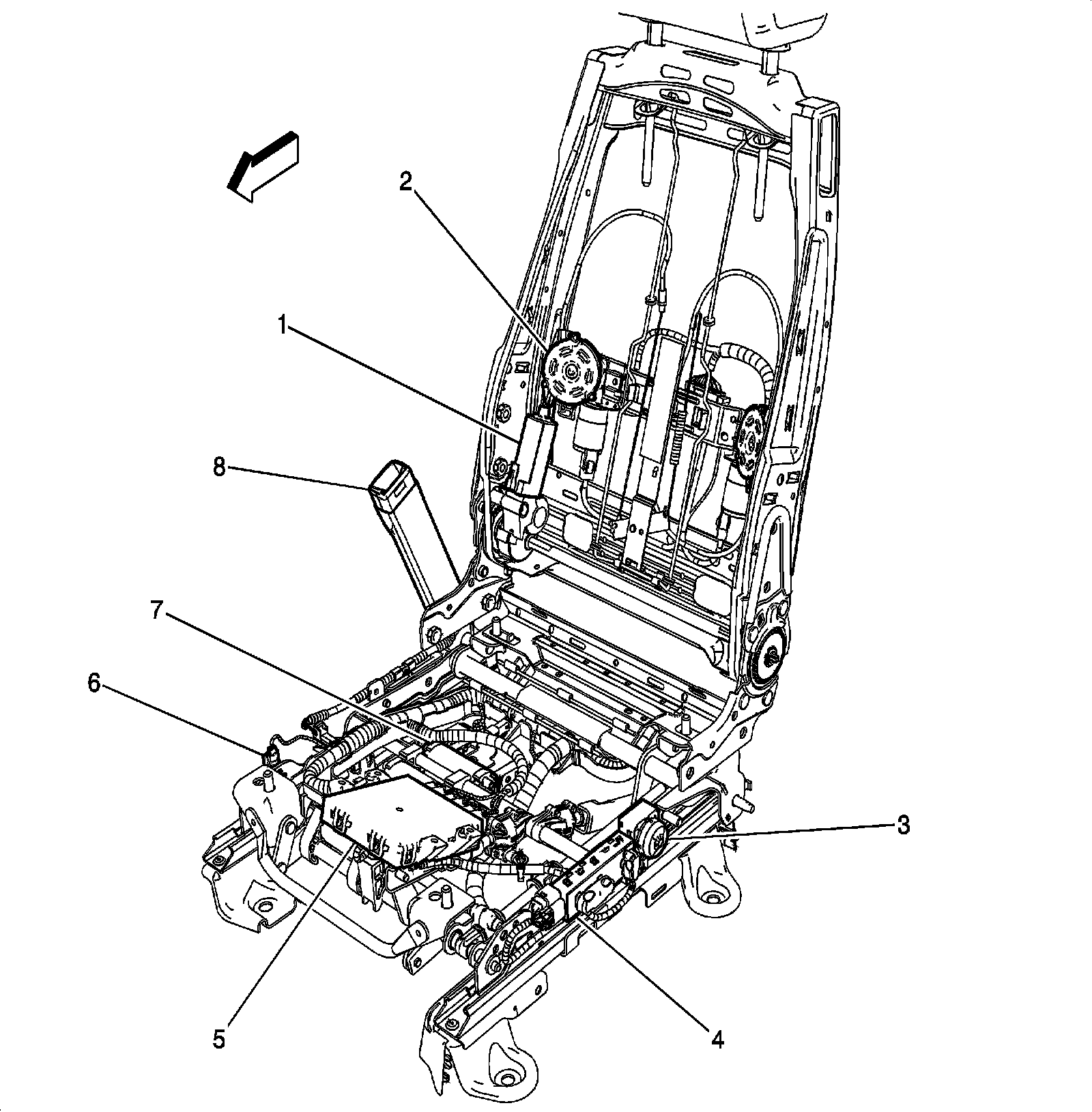

Driver Seat Components - 1 of 2
1 - Seat Recline Motor - Driver (AN3)
2 - Seat Lumbar Adjuster Assembly - Driver (AN3)
3 - Seat Lumbar Switch - Driver (AN3)
4 - Seat Adjuster Switch - Driver
5 - Memory Seat Module (AN3)
6 - Inflatable Restraint Seat Position Sensor (SPS) - Left
7 - Seat Adjuster Assembly - Driver
8 - Seat Belt Buckle - Driver
