2008 Cadillac Escalade RWD V8-6.2LFACTORY OEM SERVICE PROCEDURE
Memory Positioning Module: Diagrams
Component Connector End Views - Continued

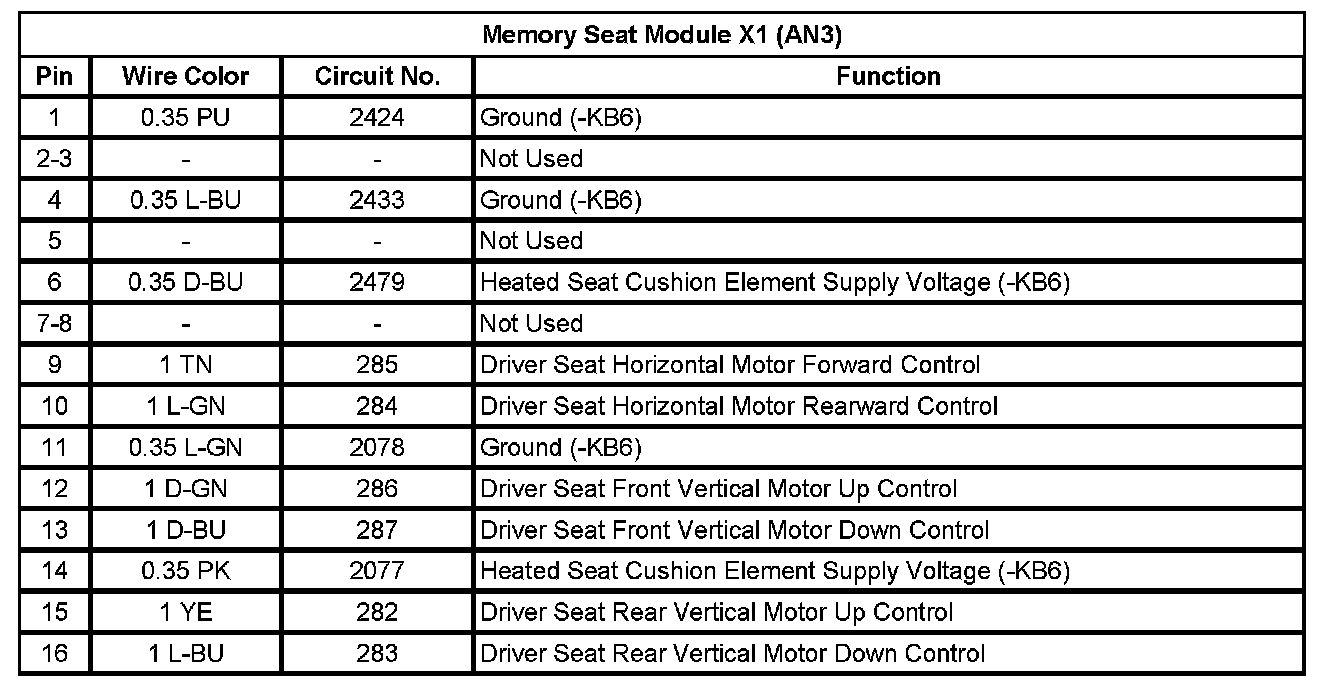

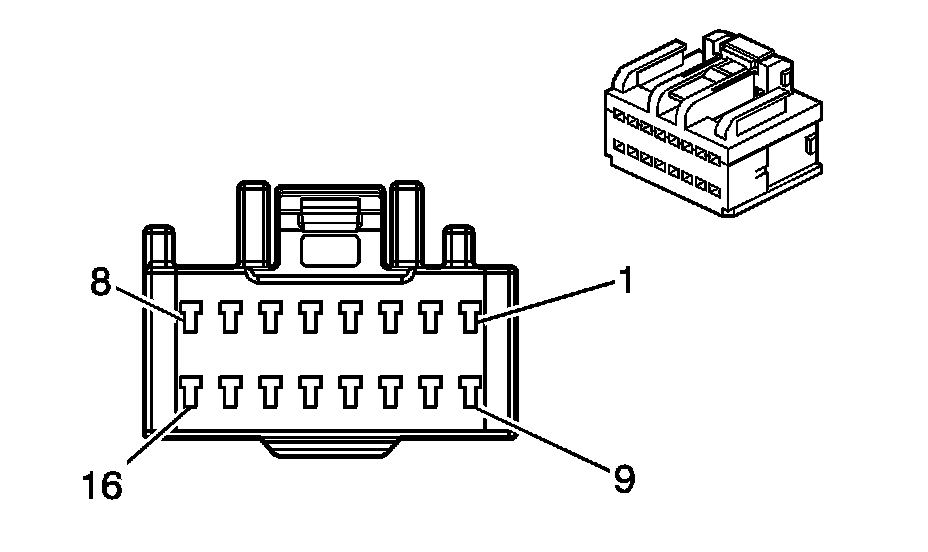

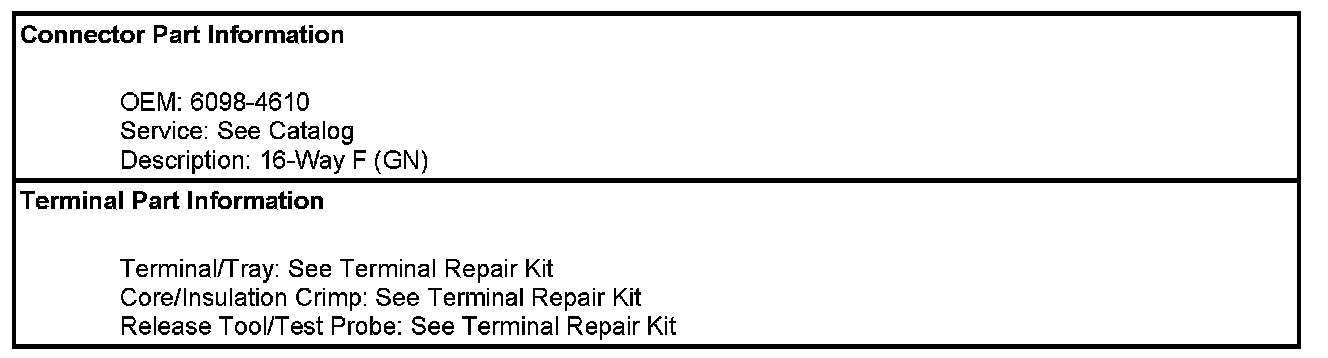

Memory Seat Module X1 (AN3)

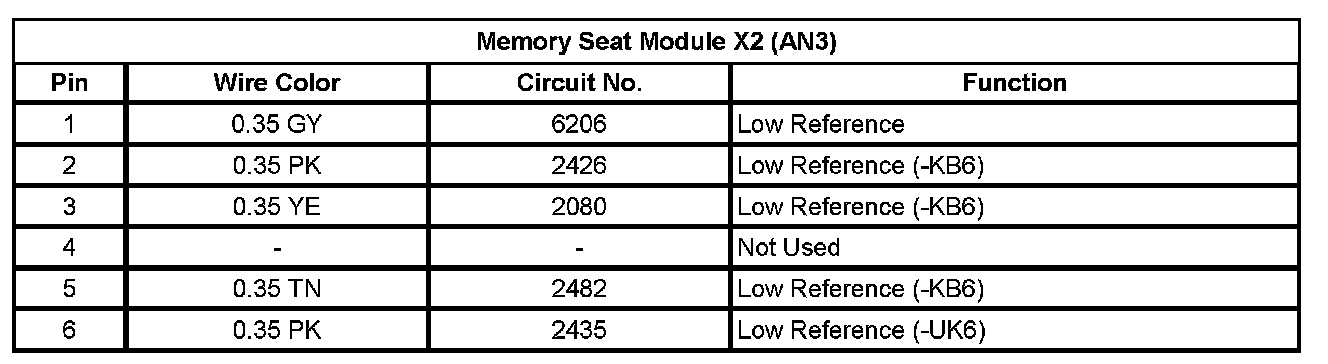

Memory Seat Module X2 (AN3)

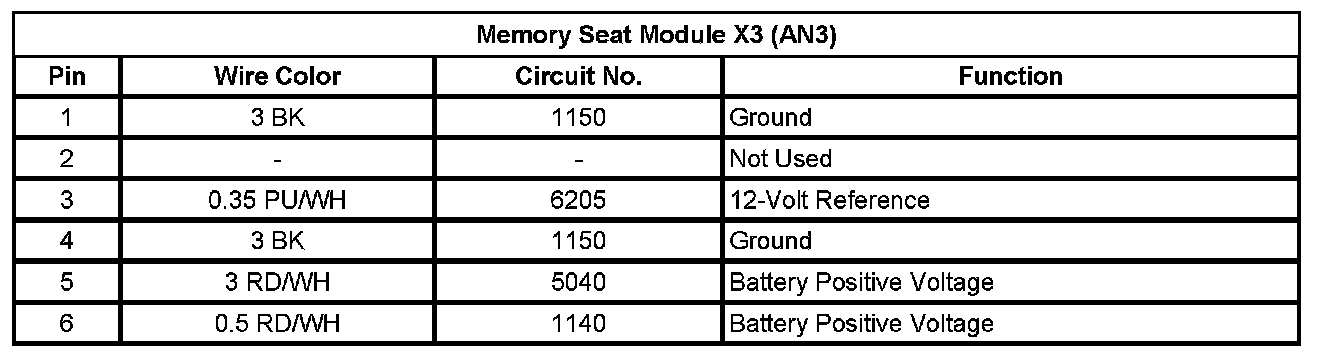

Memory Seat Module X3 (AN3)

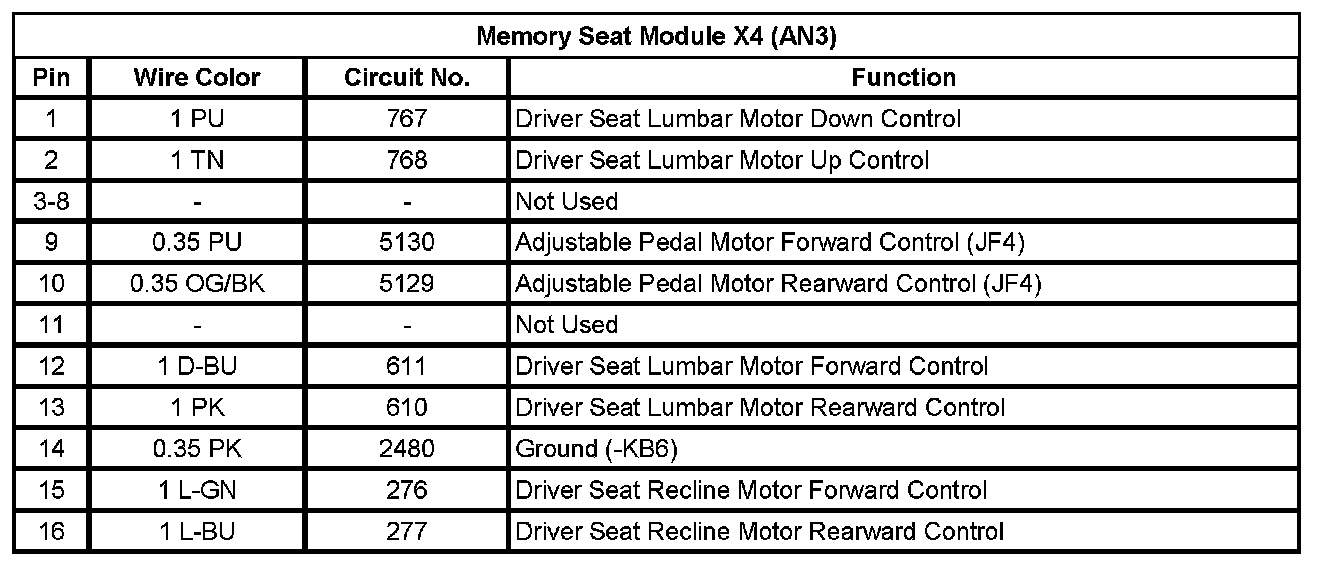

Memory Seat Module X4 (AN3)

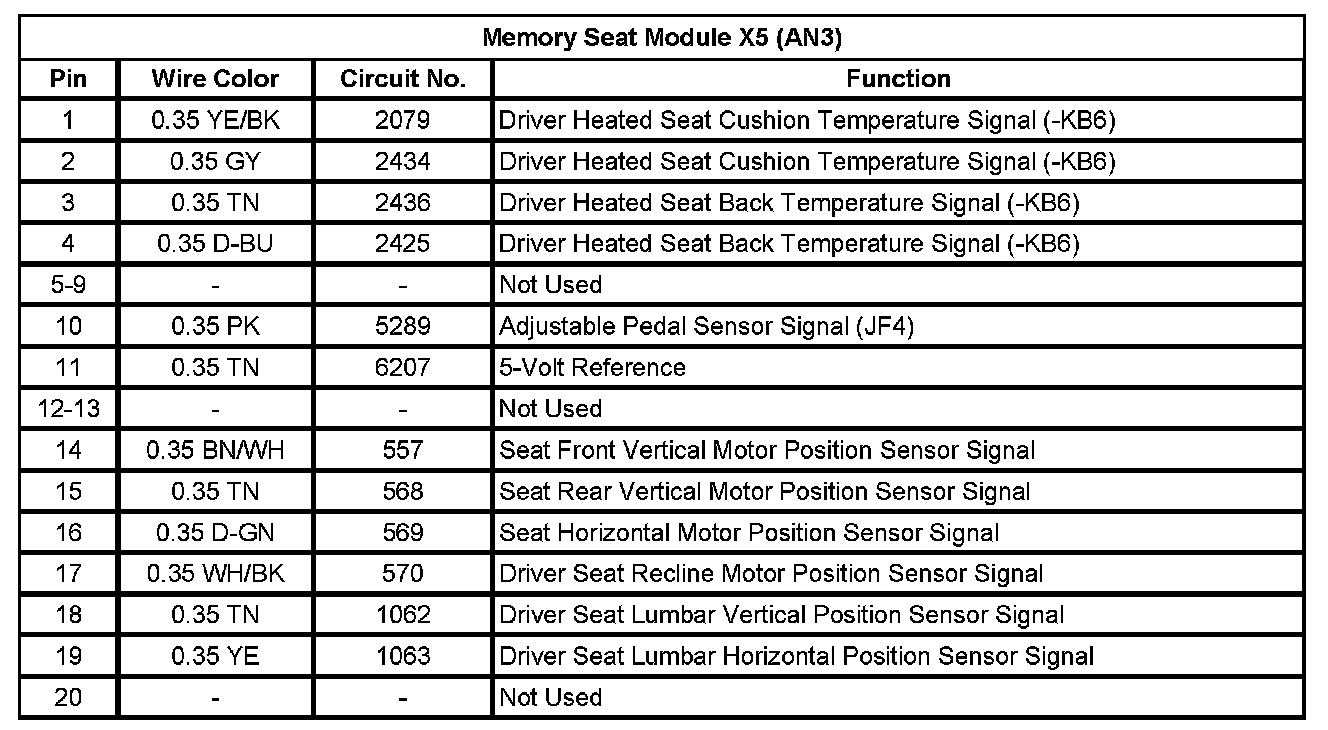

Memory Seat Module X5 (AN3)

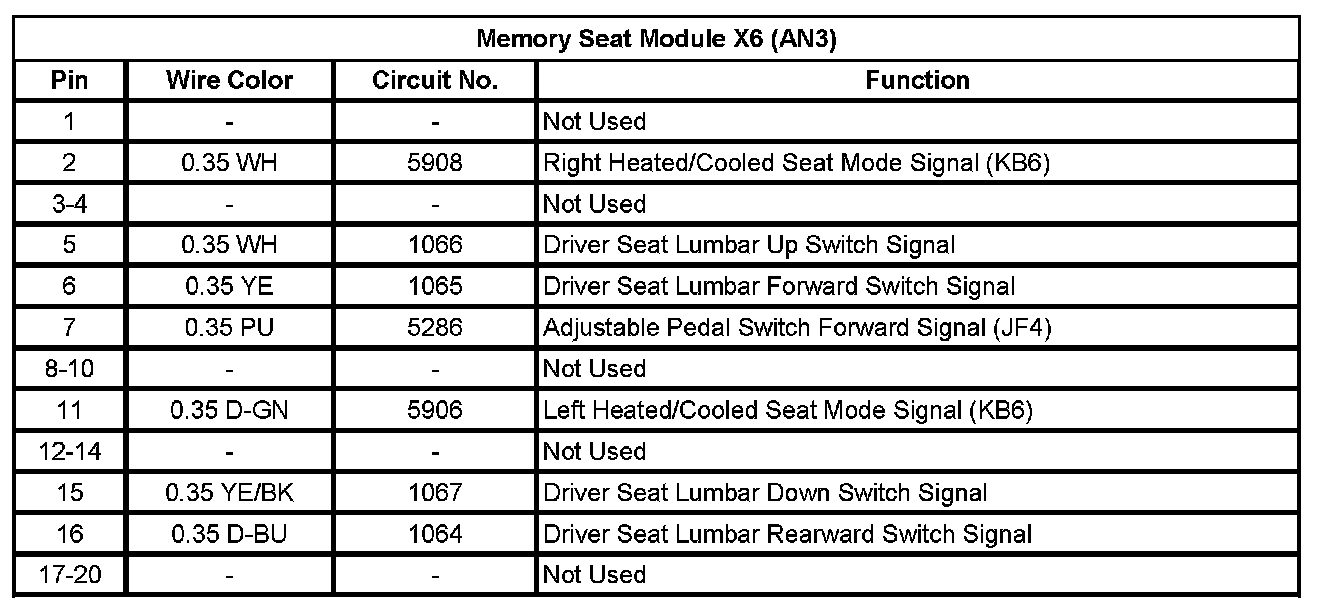

Memory Seat Module X6 (AN3)

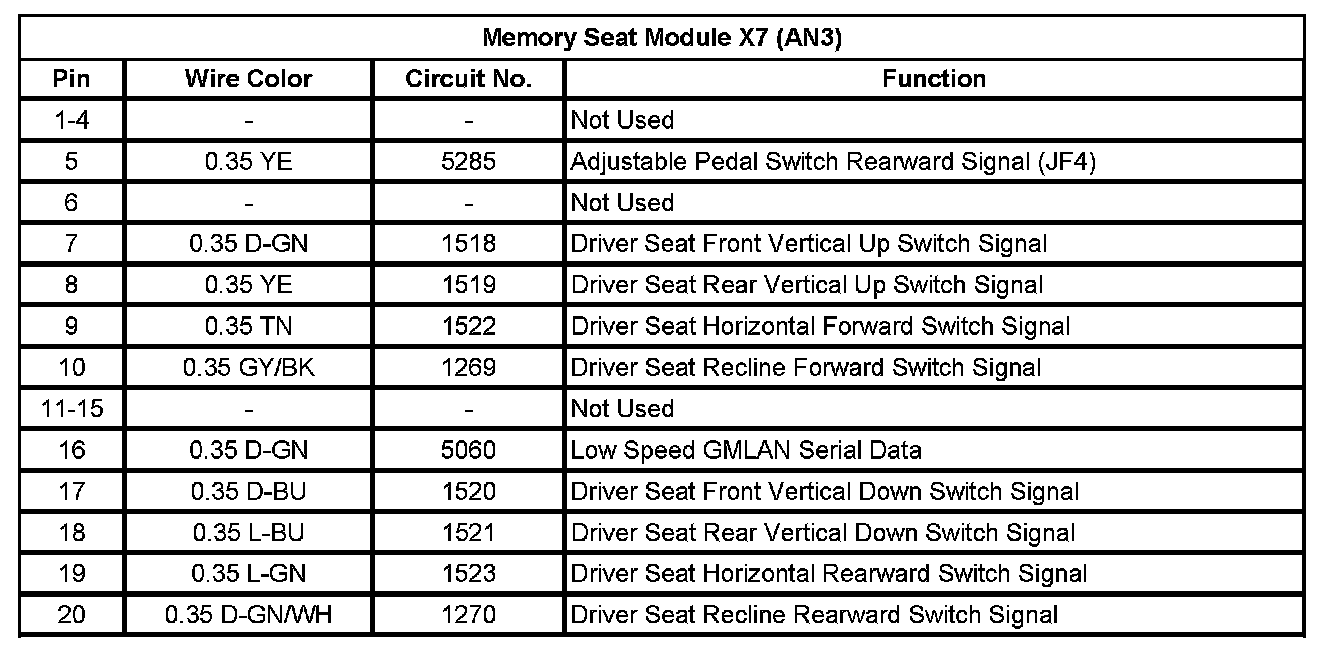

Memory Seat Module X7 (AN3)
