2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Object Alarm Module Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

Callout	Component Name
Preliminary Procedure Remove the left rear body side trim. Refer to Body Side Rear Trim Panel Replacement (w/ TB5) or Body Side Rear Trim Panel Replacement (w/o TB5) . Remove the auxiliary HVAC module to body bolts and move aside to obtain clearance. Refer to Auxiliary HVAC Module Replacement .
1	Rear Object Alarm Module Retainer
2	Radio Speaker Amplifier Bracket Nut NOTE: Refer to Fastener Notice . Tighten: 9 N.m (80 lb in)
3	Rear Object Alarm Module Procedure: Disconnect the electrical connectors.

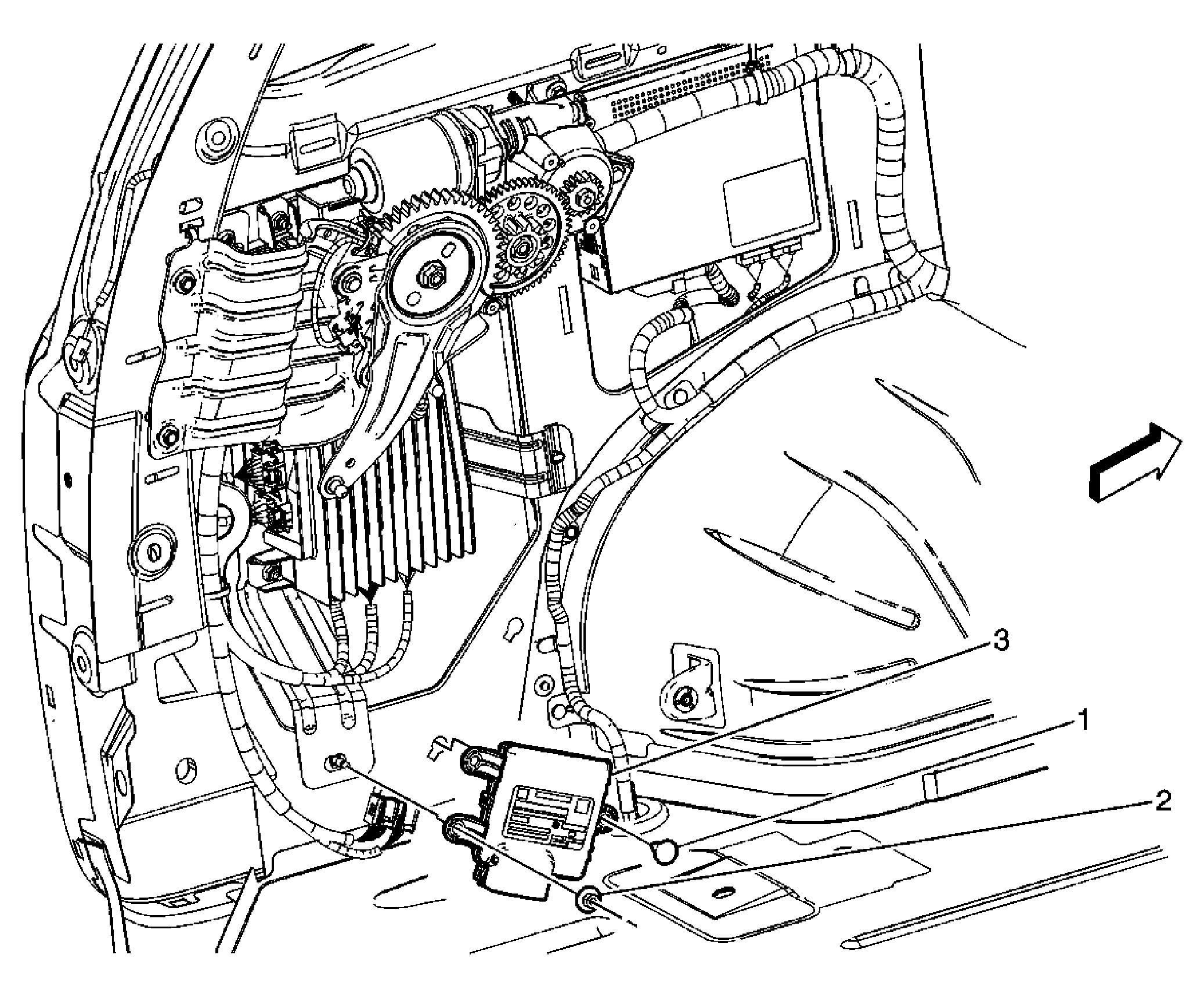

Fig 1: View Of Object Alarm Module Component View

Courtesy of GENERAL MOTORS CORP.
