2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2008 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

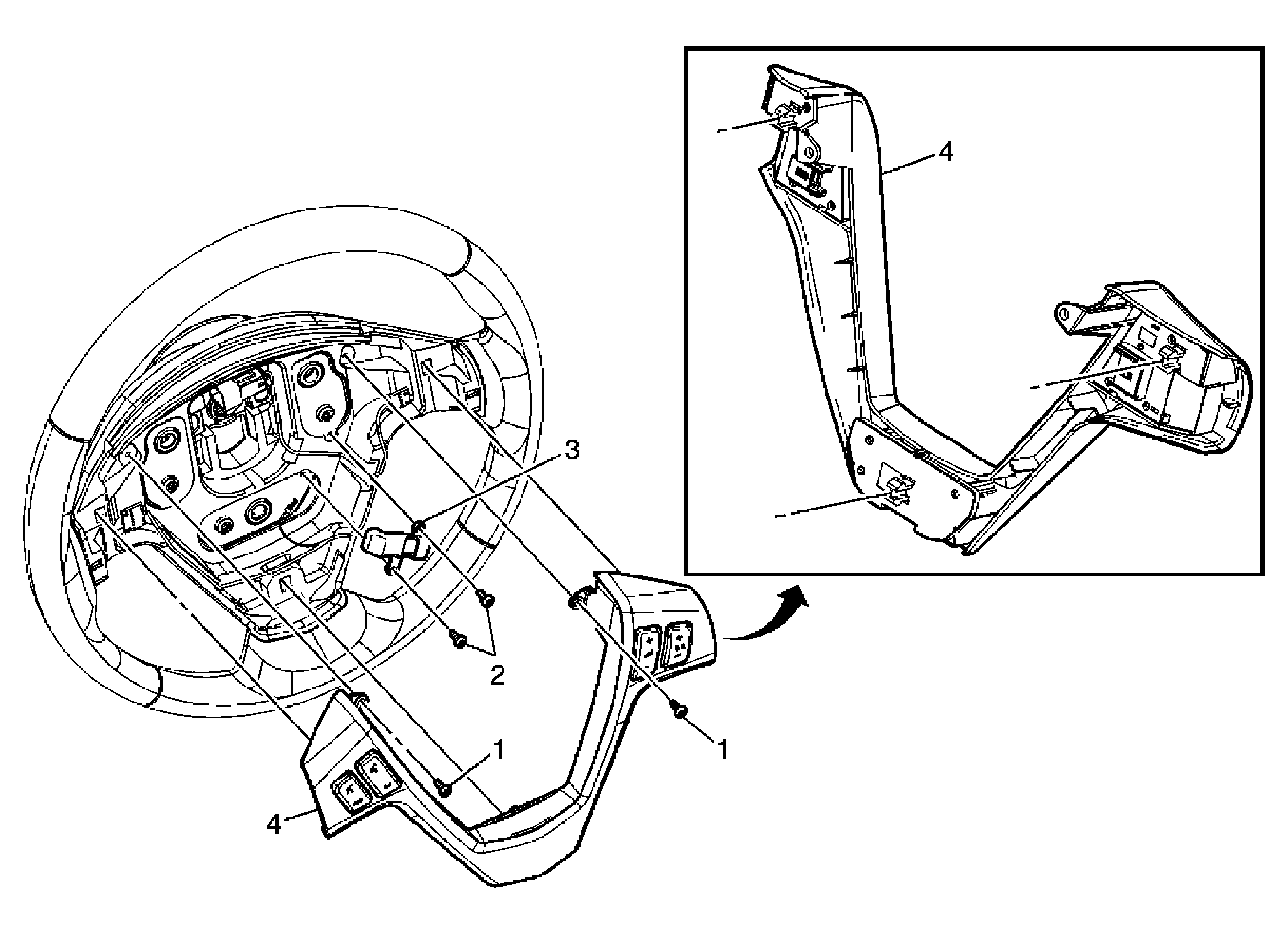

Fig 1: Identifying Steering Wheel Control Switch Assembly Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
CAUTION: Refer to SIR Caution . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement .
1	Steering Wheel Control Switch Screw (Qty: 2) NOTE: Refer to Fastener Notice . Tighten: 2 N.m (18 lb in)
2	Steering Wheel Control Harness Retainer Screw (Qty: 2) Tighten: 2 N.m (18 lb in)
3	Steering Wheel Control Harness Retainer
4	Steering Wheel Control Switch Assembly Tip: Disconnect the electrical connectors. Carefully pull the control switch assembly away from the steering wheel.
