2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

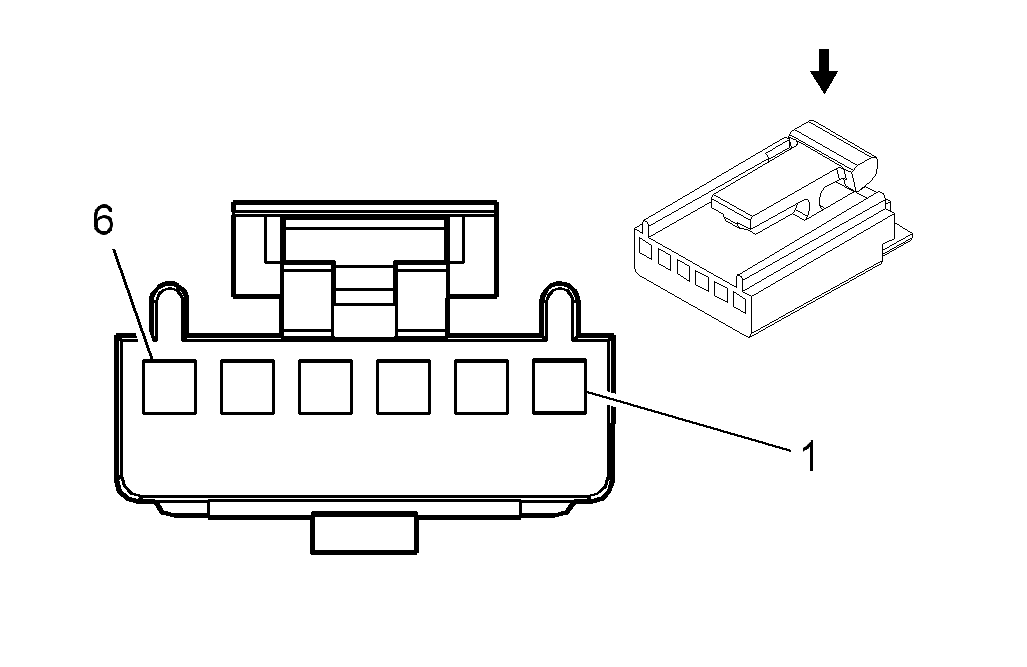

Steering Wheel Position Sensor Connector End View
Steering Wheel Position Sensor Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Steering Wheel Position Sensor Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | D-GN | 2087 | 5-Volt Reference |
| 2 | L-BU | 2088 | Low Reference |
| 3-4 | - | - | Not Used |
| 5 | L-GN | 1763 | Steering Wheel Position Signal A |
| 6 | L-BU | 1764 | Steering Wheel Position Signal B |
