2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

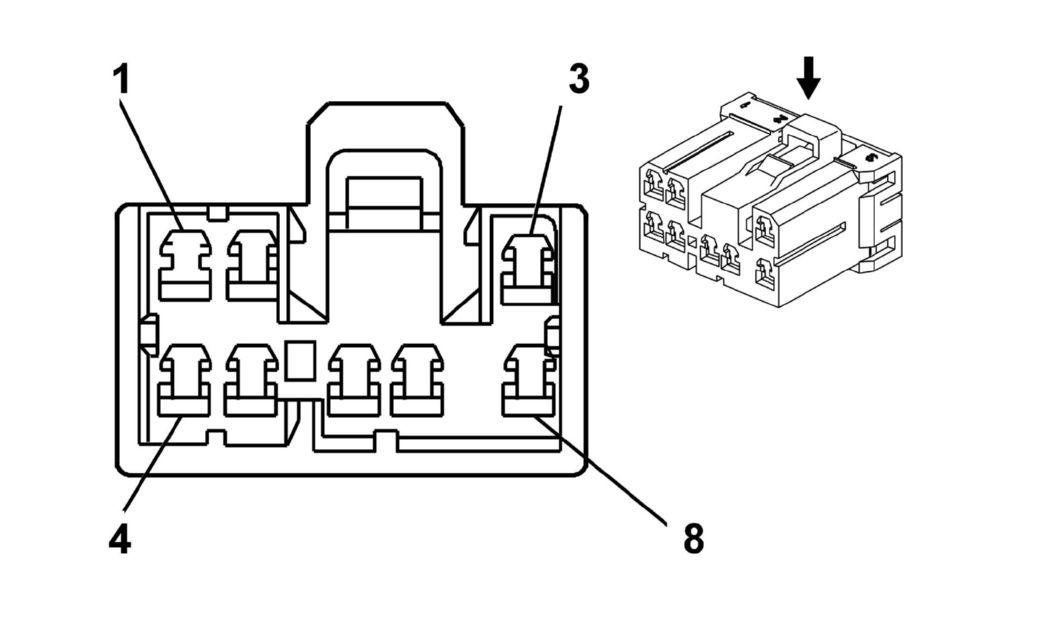

Exhaust Flow Control Module Connector End View C2
Exhaust Flow Control Module C2 Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Exhaust Flow Control Module C2 Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| 1 | - | - | Not Used |
| 2 | RD/WH | 1240 | Battery Positive Voltage |
| 3 | - | - | Not Used |
| 4 | BK | 1150 | Ground |
| 5-6 | - | - | Not Used |
| 7 | L-GN/BK | 1098 | Class 2 Serial Data |
| 8 | - | - | Not Used |
