2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

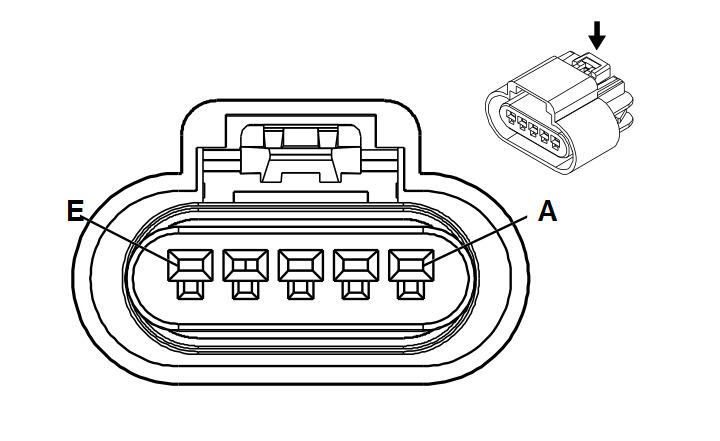

Yaw and Lateral Accelerometer Sensor Connector End View
Yaw and Lateral Accelerometer Sensor Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Yaw and Lateral Accelerometer Sensor Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| A | - | - | Not Used |
| B | D-GN | 2087 | 5-Volt Reference |
| C | D-BU | 716 | Yaw Rate Sensor Signal |
| D | L-GN | 2088 | Low Reference |
| E | L-GN/BK | 1338 | Lateral Accelerometer Signal |
