2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

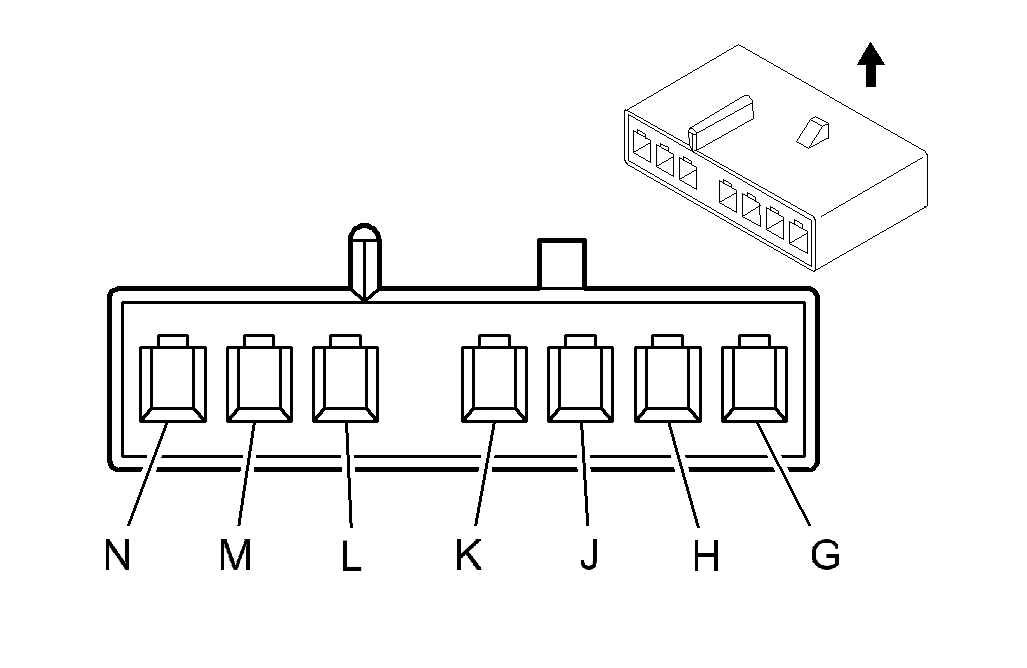

Windshield Wiper/Washer Switch Connector End View
Windshield Wiper/Washer Switch Connector Parts Information
Connector Part Information
|
Terminal Part Information
|
Windshield Wiper/Washer Switch Connector Terminal Identification
| Pin | Wire Color | Circuit No. | Function |
|---|---|---|---|
| G | PK | 94 | Windshield Wiper Switch Signal |
| H | L-BU | 1714 | Windshield Wiper Switch - low Signal |
| J | - | - | Not Used |
| K | L-GN | 1715 | Windshield Wiper Switch - High Signal |
| L | - | - | Not Used |
| M | BK | 1450 | Ground |
| N | - | - | Not Used |
