2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Fuse Block - I/P Wire Entry Pinout

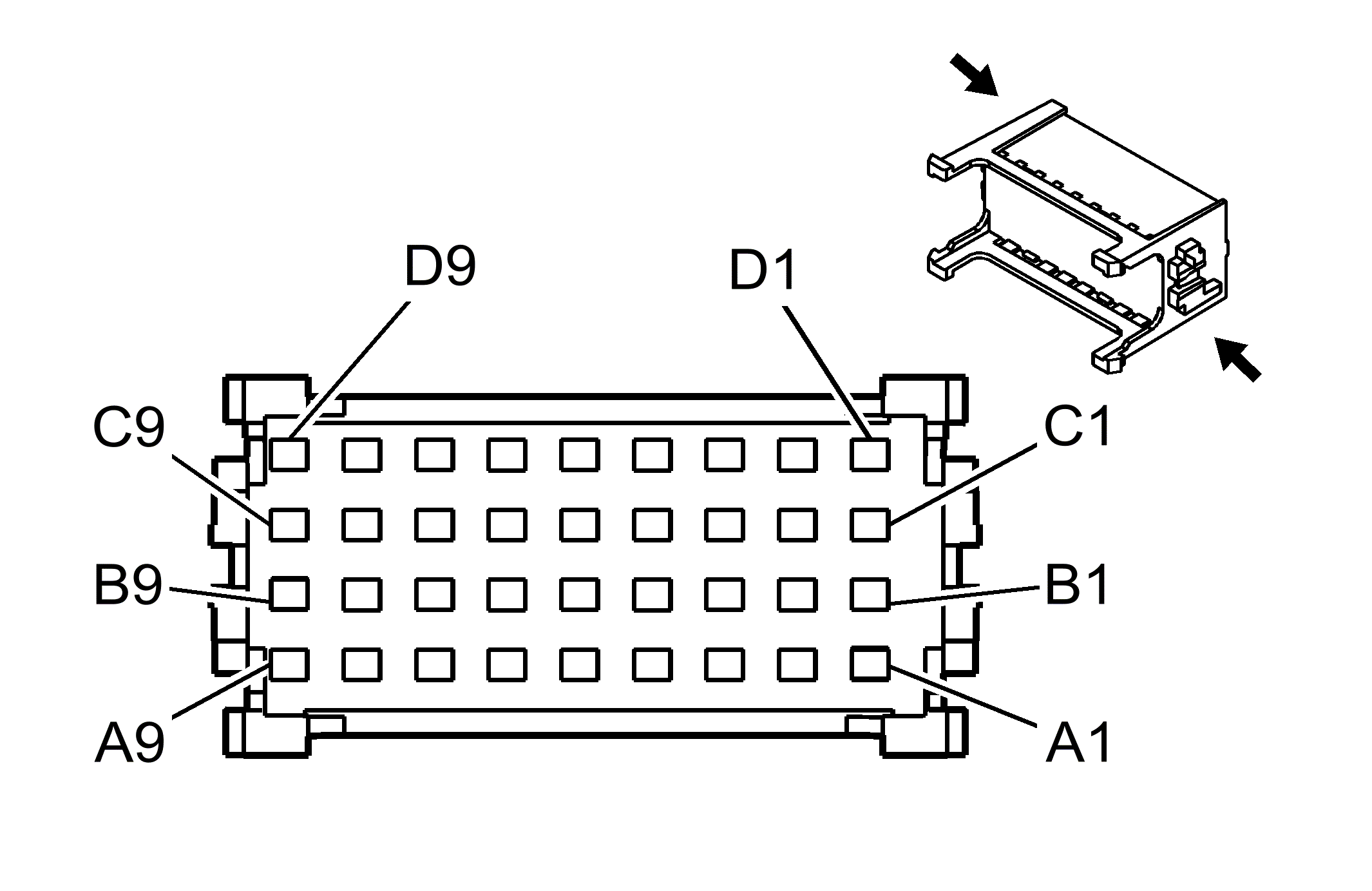

Fig 1: Fuse Block - I/P Wire Entry Pinout
GM73243Courtesy of GENERAL MOTORS CORP.
Electrical Center Parts Information

Connector Part Information
  • OEM: 12160504
  • Service: See Catalog
  • Description: 36-Way F Metri-Pack 280 Series, Flexlock (BK)
Terminal Part Information
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Fuse Block - I/P Wire Entry Pinout Terminal Identification

Pin Wire Color Circuit No. Function
A1 - - Not Used
A2 YE 843 Accessory Voltage
A3 - - Not Used
A4 YE 743 Accessory Voltage
A5 YE 443 Accessory Voltage
A6 YE 643 Accessory Voltage
A7 - - Not Used
A8 YE 543 Accessory Voltage
A9 - - Not Used
B1 - - Not Used
B2 YE 390 Instrument Panel Lamp Supply Voltage - 3
B3 YE 1491 Backlight Lamps Control
B4 RD/WH 2240 Battery Positive Voltage
RD/WH 2240 Battery Positive Voltage
B5 - - Not Used
B6 RD/WH 3240 Battery Positive Voltage
B7 RD/BK 742 Battery Positive Voltage
RD/BK 742 Battery Positive Voltage
B8 RD/WH 1640 Battery Positive Voltage
B9 - - Not Used
C1 - - Not Used
C2 YE 143 Accessory Voltage
YE 143 Accessory Voltage
C3 YE 243 Accessory Voltage
C4-C7 - - Not Used
C8 PK 5780 Windshield Wiper Motor Park Switch Signal
C9 YE 196 Windshield Wiper Motor Park Switch Signal
D1-D3 - - Not Used
D4 RD/WH 1540 Battery Positive Voltage
D5 RD/BK 742 Battery Positive Voltage
D6 RD/WH 1440 Battery Positive Voltage
D7 RD/BK 742 Battery Positive Voltage
D8-D9 - - Not Used
