2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Splice Pack SP205

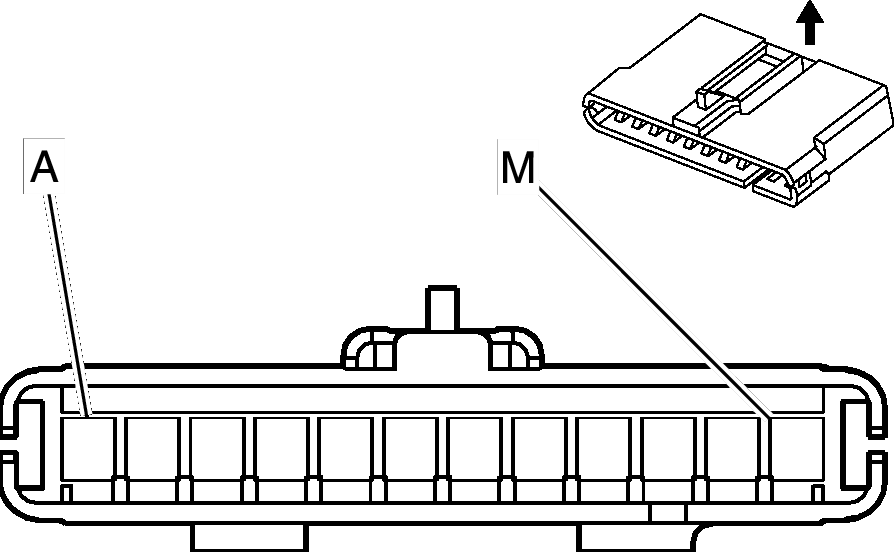

Fig 1: Splice Pack SP205 Connector End View
GM338576Courtesy of GENERAL MOTORS CORP.
Splice Pack SP205 Connector Parts Information

Connector Part Information
  • OEM: 15317802
  • Service: 15305914
  • Description: 12-Way F Metri-Pack 150 Series (GY)
Terminal Part Information
  • Pins: A, B, C, D, E, F, H
  • Terminal/Tray: See Terminal Repair Kit
  • Core/Insulation Crimp: See Terminal Repair Kit
  • Release Tool/Test Probe: See Terminal Repair Kit
Splice Pack SP205 Connector Terminal Identification

Pin Wire Color Circuit No. Function
A PU 1132 DLC Class 2 Serial Data
B YE 1127 Trip Computer/Nav Class 2 Serial Data
C GY 1036 IPC Class 2 Serial Data
D PU 1132 DLC Class 2 Serial Data
E BN 1046 DDM Class 2 Serial Data
F D-BU 1128 SDM Class 2 Serial Data
G - - Not Used
H OG 5739 Class 2 Serial Data
J-M - - Not Used
