2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    CAUTION: Refer to Battery Disconnect Caution .
  1. Disconnect the battery ground cable. Refer to Battery Negative Cable Disconnection and Connection .
  2. Remove the shifter knob. Refer to Transmission Control Lever Knob Replacement .
  3. Open the console door.

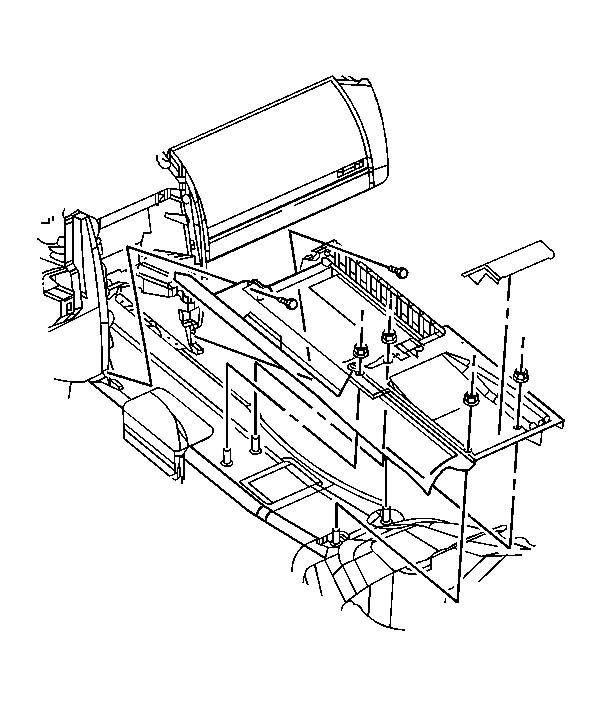

    4. Fig 1: View Of Console Door To Hinge Screws
    GM1224732Courtesy of GENERAL MOTORS CORP.
  4. Remove the hinge cover from the console bin. Pull at the rear of the cover to disengage the retainer.

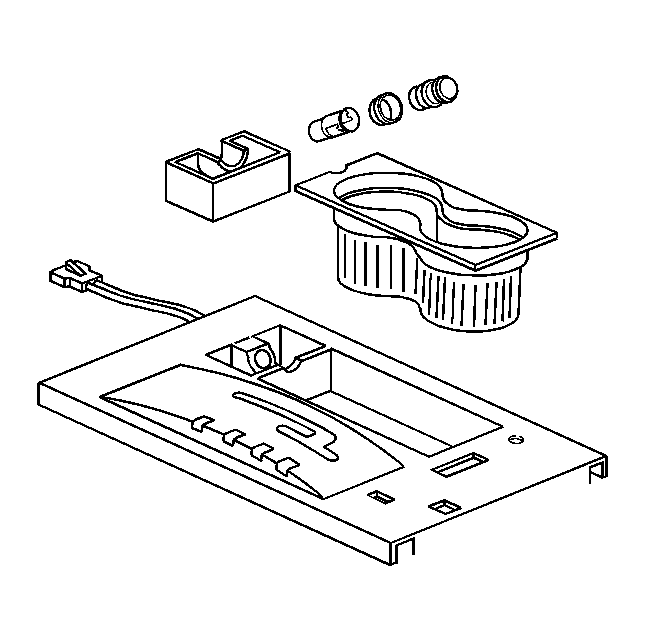

    5. Fig 2: View Of Ashtray Components
    GM1276318Courtesy of GENERAL MOTORS CORP.
  5. Remove the console cupholder and the ashtray.
  6. Remove the console trim plate. Refer to Console Trim Plate Replacement .
    7. Fig 3: View Of Console Door To Hinge Screws
    GM1224732Courtesy of GENERAL MOTORS CORP.
  7. Remove the console nuts.
  8. Remove the bolts retaining the front of the console to the instrument panel (I/P) carrier.
  9. Lift the rear of the console slightly and pull rearward to release the front of the console from under the I/P carrier.
  10. Disconnect the electrical connector from the electrical accessory plug.

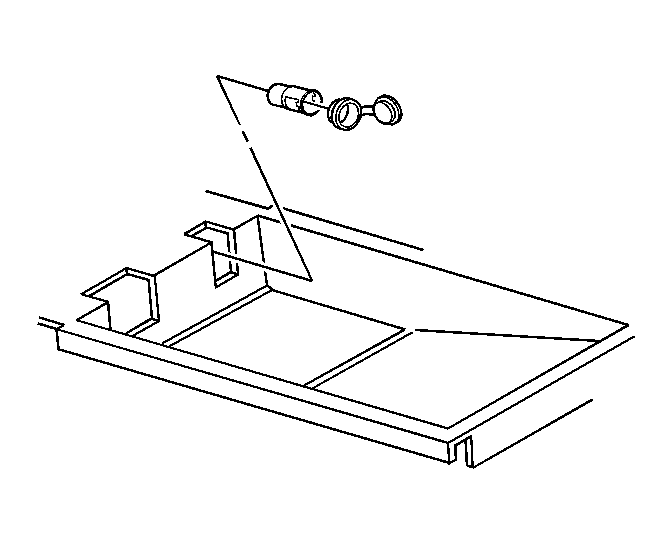

    11. Fig 4: View Of Power Outlet Housing & Components
    GM1276324Courtesy of GENERAL MOTORS CORP.
  11. Unscrew to remove the console electrical accessory plug retainer from the console electrical accessory plug housing.
  12. Remove the electrical accessory plug housing from the console.
  13. Using a flat-bladed tool, disengage the lamp from the retainer. Route the lamp through the hole in the console bin.
  14. Remove the console from the vehicle.
