2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

  1. Move the seat to the forward position, with the seat back also tilted forward.
    2. CAUTION: Refer to Battery Disconnect Caution .
  2. Disconnect the battery.
  3. Remove the door sill trim. Refer to Carpet Retainer Replacement .
  4. Remove the B-pillar trim panel (1). Refer to Body Lock Pillar Trim Panel Replacement .

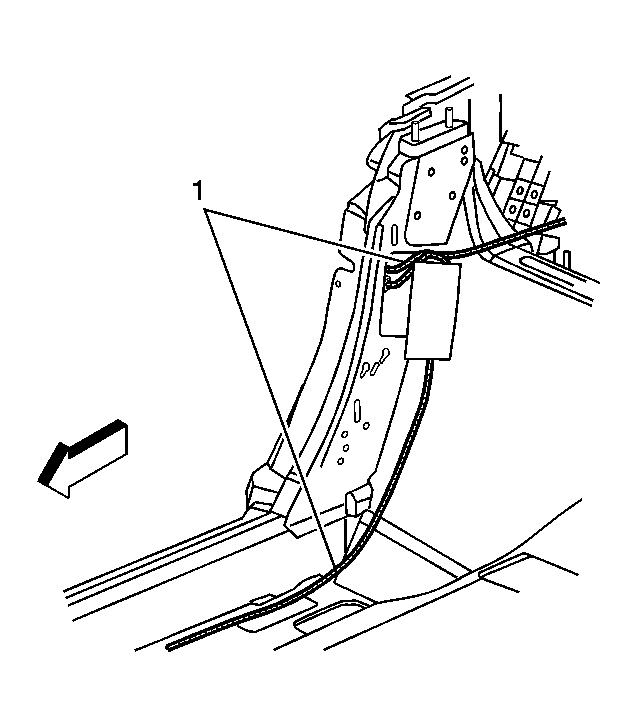

    5. Fig 1: View Of Door Latch Access Hole Mastic Cover
    GM1071088Courtesy of GENERAL MOTORS CORP.
  5. Remove the mastic cover (1) from the door lock access hole in the body.

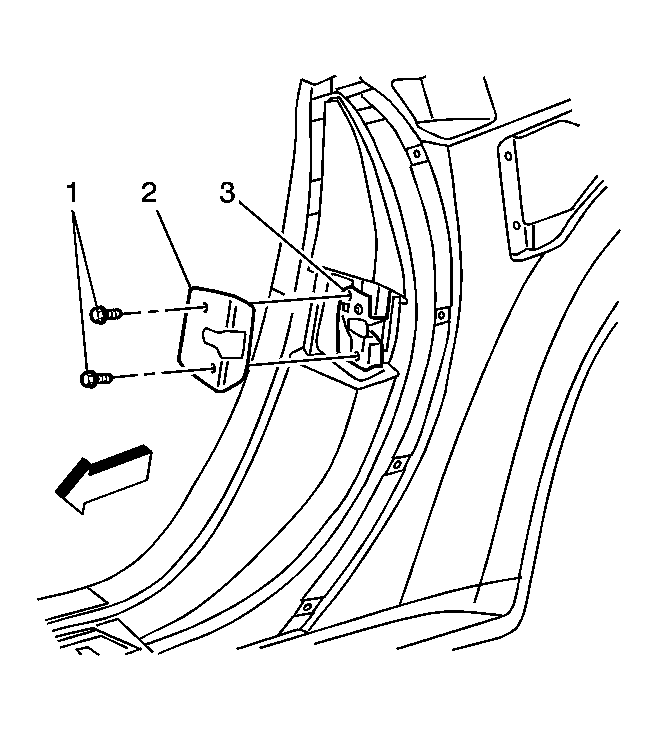

    6. Fig 2: View Of B-Pillar Mounted Door Latch, Cover Plate & Fasteners
    GM1070880Courtesy of GENERAL MOTORS CORP.
  6. Remove the fasteners (1) from the B-Pillar mounted door lock (3).

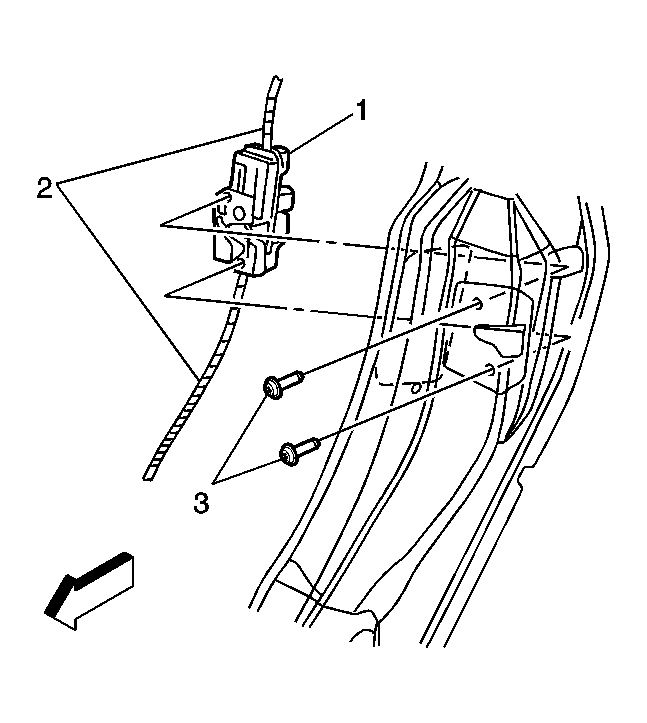

    7. Fig 3: View Of Latch, Lock & Fastener
    GM1070834Courtesy of GENERAL MOTORS CORP.
  7. Remove the lock (1) from the body access hole.

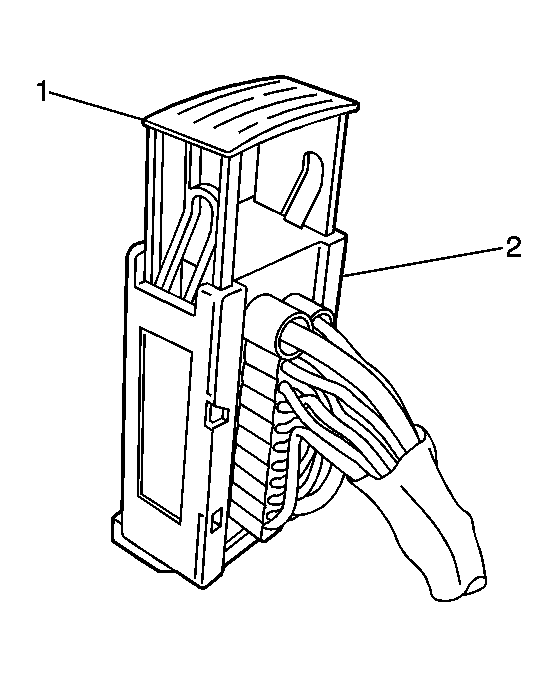

    8. Fig 4: View Of Electrical Connector Lock
    GM929153Courtesy of GENERAL MOTORS CORP.
  8. Slide the electrical connector lock (1) to the open position and remove the connector (2) from the door lock.

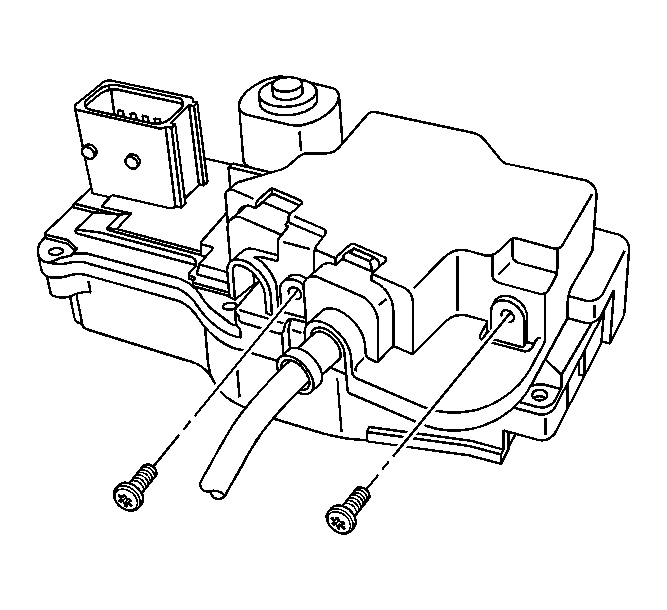

    9. Fig 5: View Of Latch & Lock Cover Fasteners
    GM1291920Courtesy of GENERAL MOTORS CORP.
  9. Remove the fasteners from rear lock cover securing the cables.
  10. Unseat the cable sheath ends and remove the lock cover.
  11. Remove the cable ends by rotating the cable a quarter turn to disengage from the lock-actuating lever.
  12. Remove the lock from the vehicle.
