Remote Function Component Views
2007 Cadillac XLR BaseSECTION Remote Function Component Views
| Callout | Component Name |
|---|---|
| 1 | Folding Top Module |
| 2 | Rear Object Sensor Control Module |
| 3 | Memory Seat Module |
| 4 | Driver Door Module (DDM) |
| 5 | Radio |
| 6 | Instrument Panel Cluster (IPC) |
| 7 | Head-Up Display (HUD) |
| 8 | Remote Control Door Lock Receiver (RCDLR) |
| 9 | EBCM - BPMV |
| 10 | Distance Sensing Control Module |
| 11 | Transmission Control Module (TCM) |
| 12 | Engine Control Module (ECM) |
| 13 | Body Control Module (BCM) |
| 14 | Audio Amplifier |
| 15 | Steering Column Lock Control Module (Export) |
| 16 | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| 17 | Front Passenger Door Module (FPDM) |
| 18 | HVAC Control Module |
| 19 | Vehicle Communication Interface Module (VCIM) |
| 20 | Antenna Ground Plane |
| 21 | Antenna Module - Right |
| 22 | Antenna Module - Left |

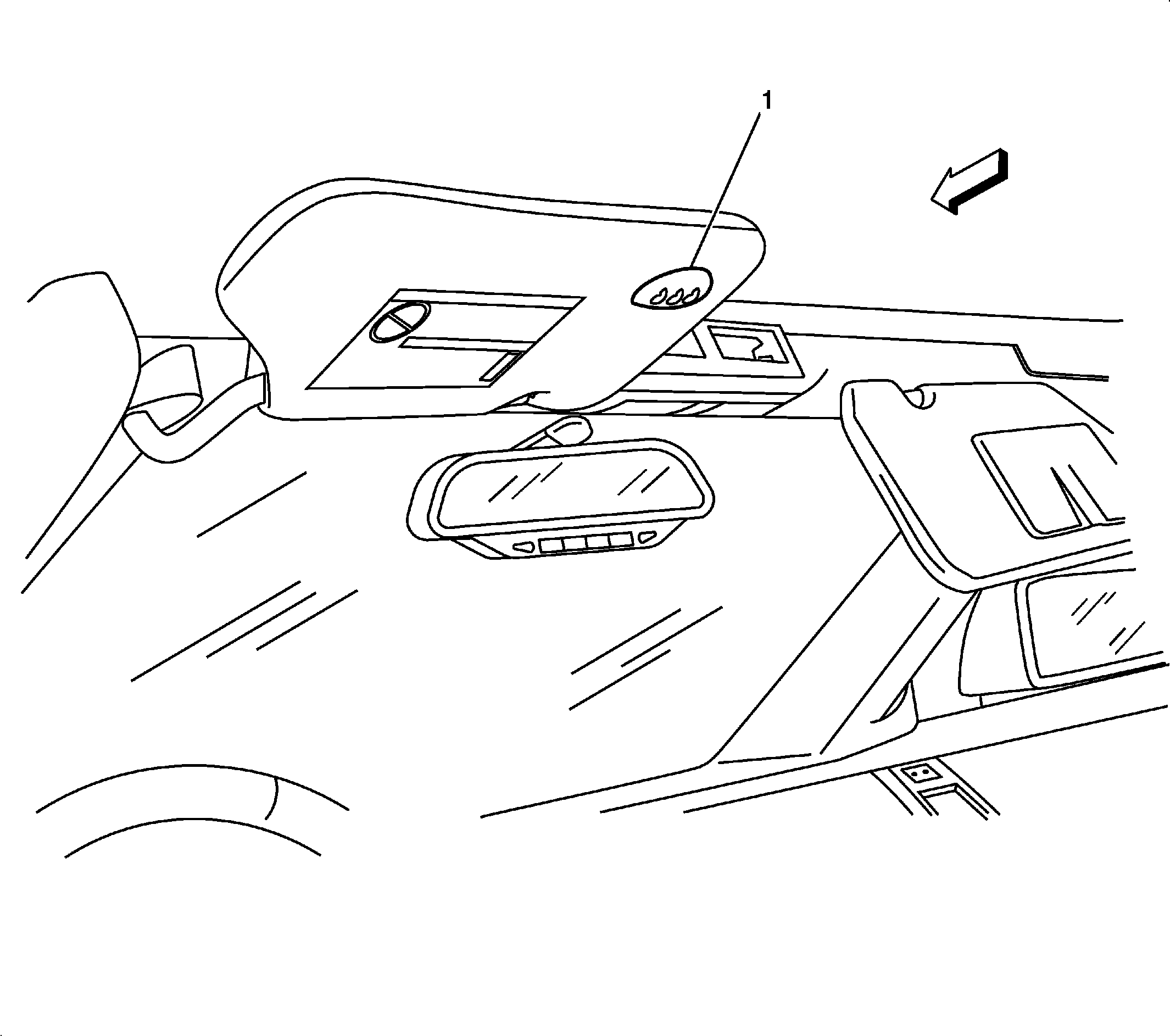

| Callout | Component Name |
|---|---|
| 1 | Garage Door Opener |
