Installation Procedure

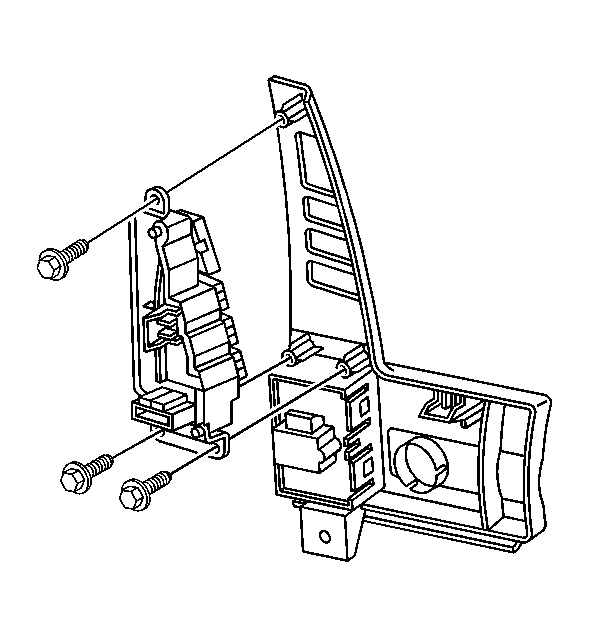

- Install the ignition switch into position on the DIC pod.

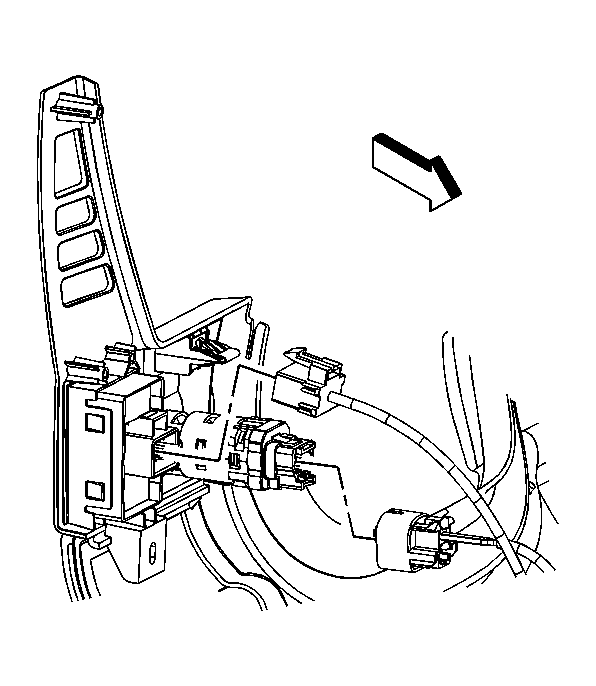

- Connect the ignition switch electrical connections.
- Install the DIC switch pod. Refer to Driver Information Display Switch Replacement .
- Install the driver knee bolter trim panel. Refer to Driver Knee Bolster Panel Replacement .
- Connect the negative battery cable.
Tighten: Tighten the cable bolt to 15 N.m (11 lb ft).
