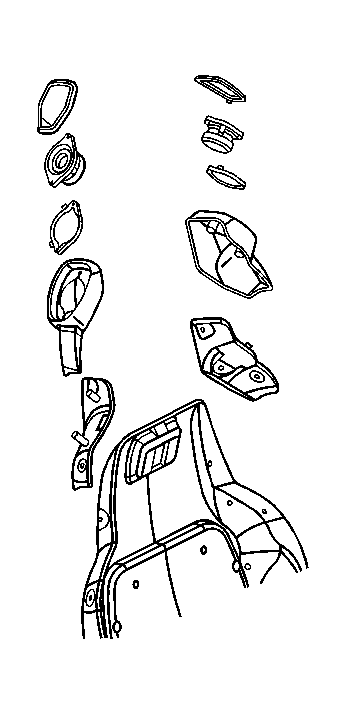

Installation Procedure
- Install the speaker grille retainer.
- Connect the harness lead to the speaker route the speaker harness lead in the seat.
- Install the 4 screws which retain the speaker to the seat.
Tighten: Tighten the screws to 2.5 N.m (22 lb in).

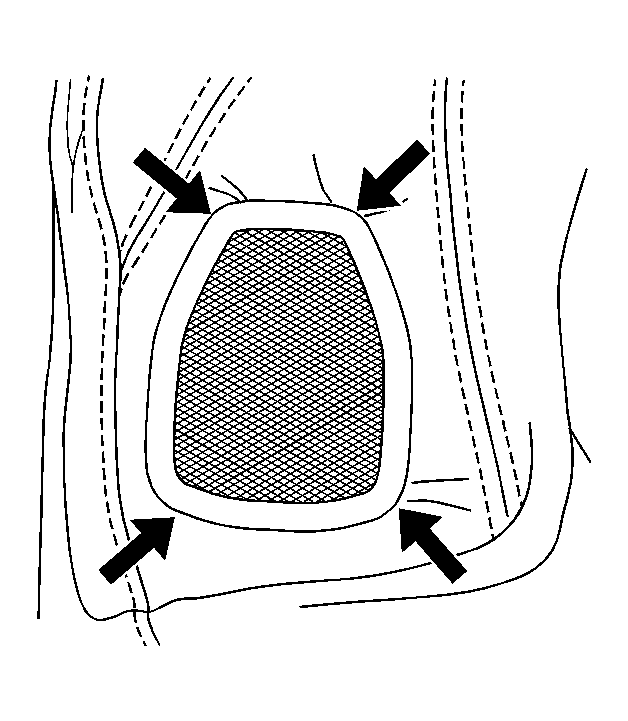

- Align the speaker grille to the seat.
- Carefully push on the speaker grille to engage the retaining clips to the seat.
