2007 Cadillac XLR BaseFACTORY OEM SERVICE PROCEDURE

Removal Procedure

    IMPORTANT: When removing the power window switch, place the ignition switch in the OFF position.
  1. Remove the door trim panel. Refer to Door Trim Panel Replacement .
  2. Remove the retainer screws from the back of the upper trim panel.
  3. Remove the upper trim from the door.

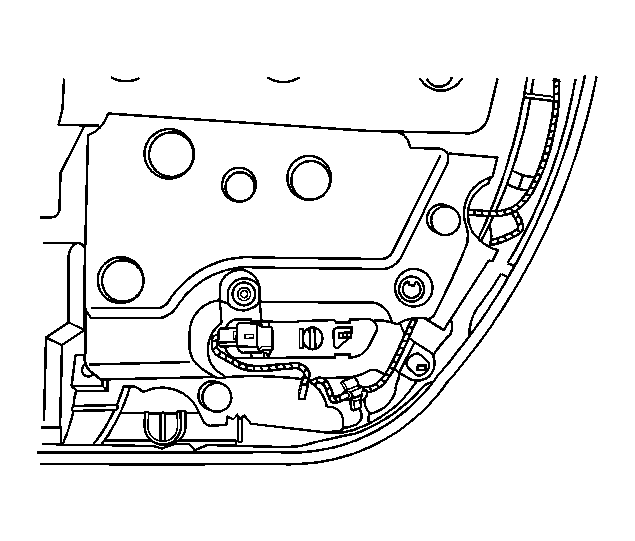

    4. Fig 1: View Of Door Panel Inner Energy Absorber
    GM1272532Courtesy of GENERAL MOTORS CORP.
  4. Remove the inner energy absorber from the door panel.
  5. Remove 4 retaining screws from the rear of the armrest.
  6. Remove 1 retaining screw from the forward end of the armrest assembly.

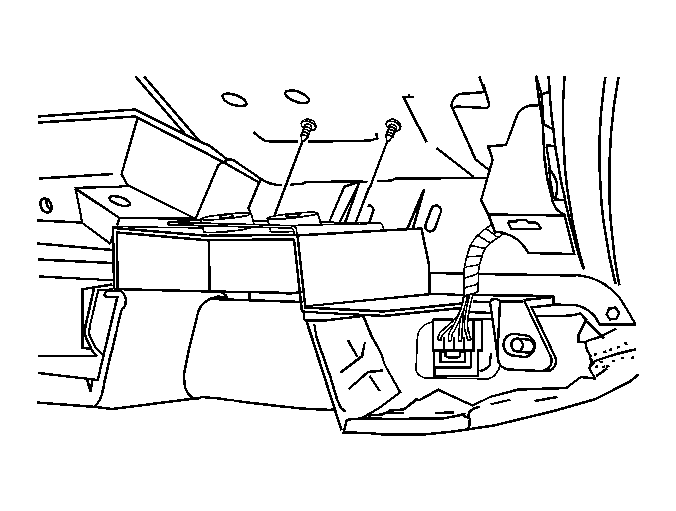

    7. Fig 2: View Of Armrest Assembly & Screws
    GM1271088Courtesy of GENERAL MOTORS CORP.
  7. Disconnect the armrest wire harness and remove the armrest assembly.

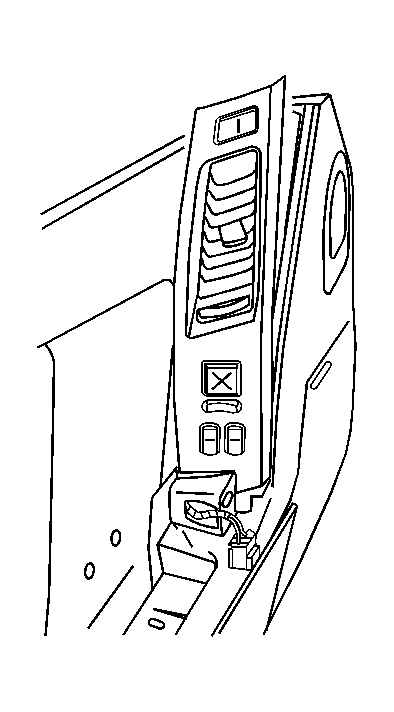

    8. Fig 3: View Of Front Door Switch Assembly
    GM1270905Courtesy of GENERAL MOTORS CORP.
