2007 Cadillac STS VFACTORY OEM SERVICE PROCEDURE

Keyless Entry Antenna

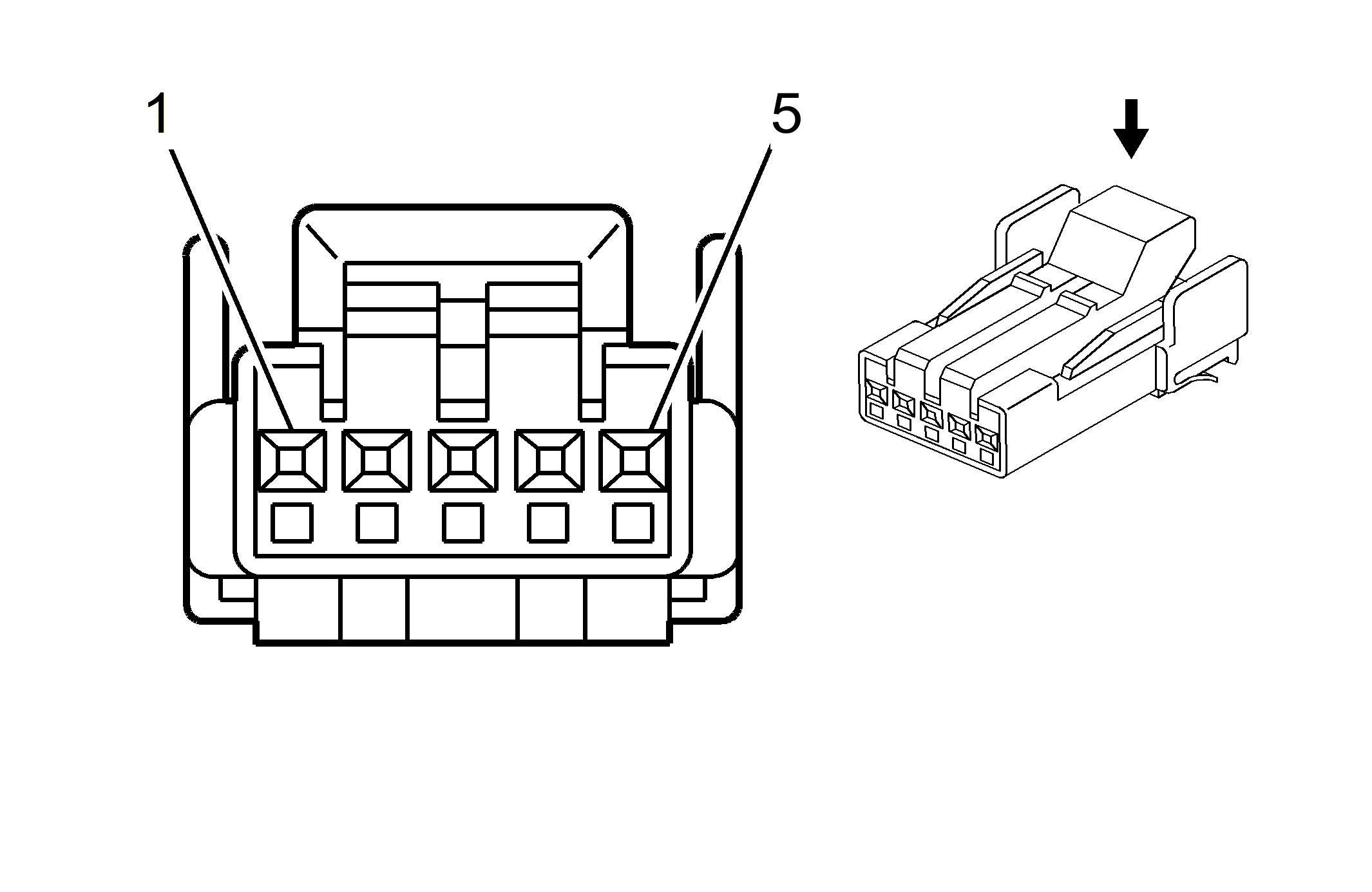

Fig 1: Keyless Entry Antenna Connector End View

Courtesy of GENERAL MOTORS CORP.

Keyless Entry Antenna Connector Parts Information

Connector Part Information

OEM: IL-AG5-5S-S3C1
Service: 88988111
Description: 5-Way F IL-AG5 Series (L-GN)

Terminal Part Information

Pins: 2, 3, 4, 5
Terminal/Tray: See Terminal Repair Kit
Core/Insulation Crimp: See Terminal Repair Kit
Release Tool/Test Probe: See Terminal Repair Kit

Keyless Entry Antenna Connector Terminal Identification

Pin	Wire Color	Circuit No.	Function
1	-	-	Not Used
2	PU/WH	5715	Keyless Entry Active Antenna Supply Voltage
3	GY	5717	Keyless Entry Active Antenna Data Signal
4	L-BU	5716	Keyless Entry Active Antenna Clock Signal
5	OG/BK	5718	Keyless Entry Active Antenna Low Reference
