Installation Procedure

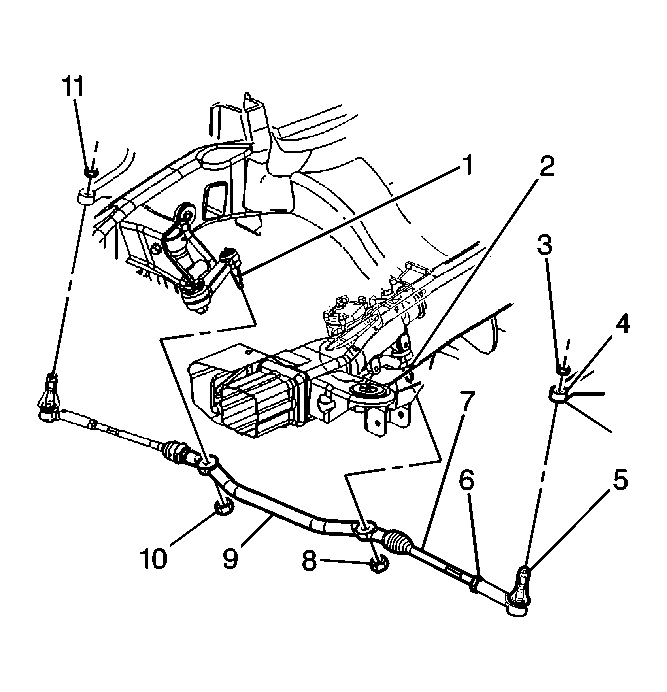

- Install the relay rod (9) to the vehicle.
- Connect the pitman arm ball stud (2) to the relay rod.
- Connect the idler arm ball stud (1) to the relay rod.
- Install the new pitman arm prevailing torque nut.
- Install the new idler arm prevailing torque nut.
Tighten: Tighten the nuts to 62 N.m (46 lb ft).
- Install the inner tie rod ends. Refer to Tie Rod Replacement - Inner .
- Install the steering damper to the relay rod, if equipped. Refer to Steering Damper Replacement .
- Install the engine protection shield, if equipped. Refer to Engine Shield Replacement .
- Lower the vehicle.
- Check the wheel alignment. Refer to Measuring Wheel Alignment .
