2007 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Remote Function Component Views

WARNING: This page is about a different car, the 2007 GMC Sierra and 2007 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

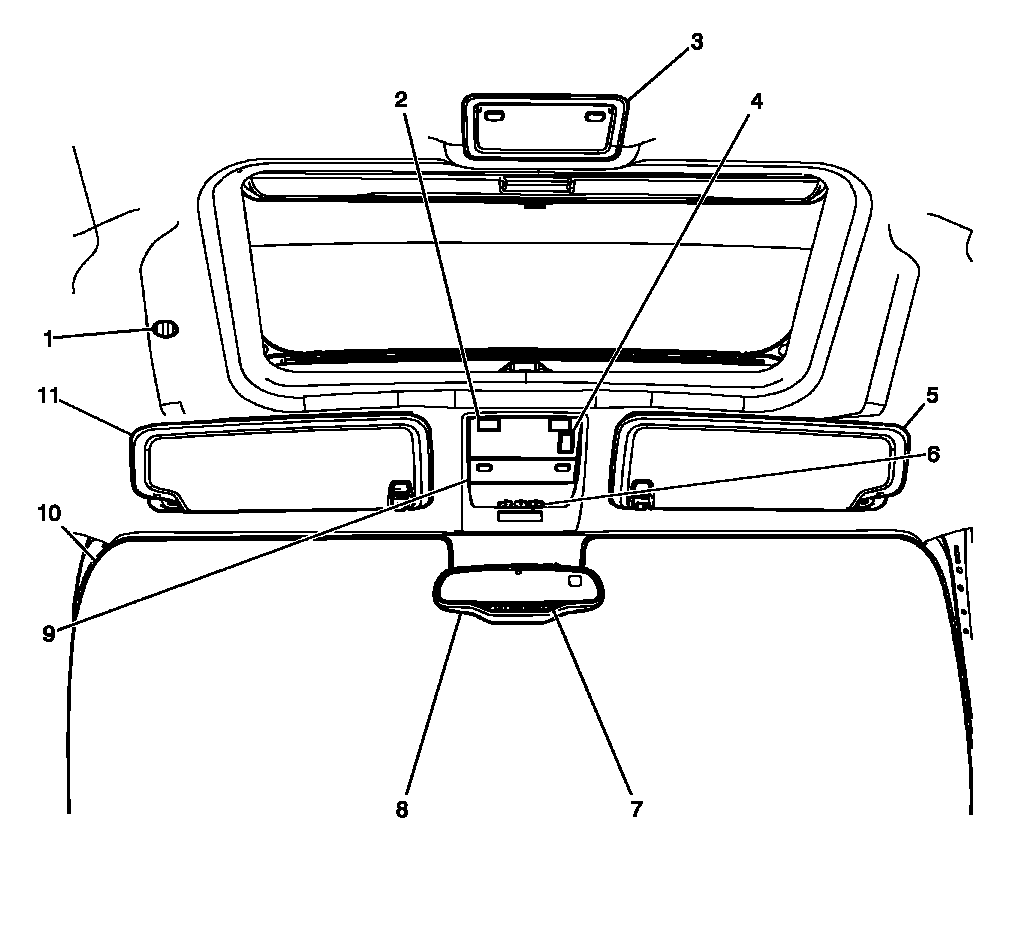

Fig 1: Front Headliner Components
GM1855919Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Inside Air Temperature Sensor - Front (CJ2)
2 Cellular Microphone (UE1/U3U/UVB)
3 Courtesy/Reading Lamps - Rear (Extended Cab/Crew Cab)
4 Sunroof Switch (CF5)
5 Sunshade - Right (DH6)
6 Garage Door Opener (UG1)
7 Onstar Button Assembly
8 Inside Rearview Mirror (ISRVM)
9 Courtesy/Reading Lamps - Front
10 Windshield
11 Sunshade - Left (DH6)

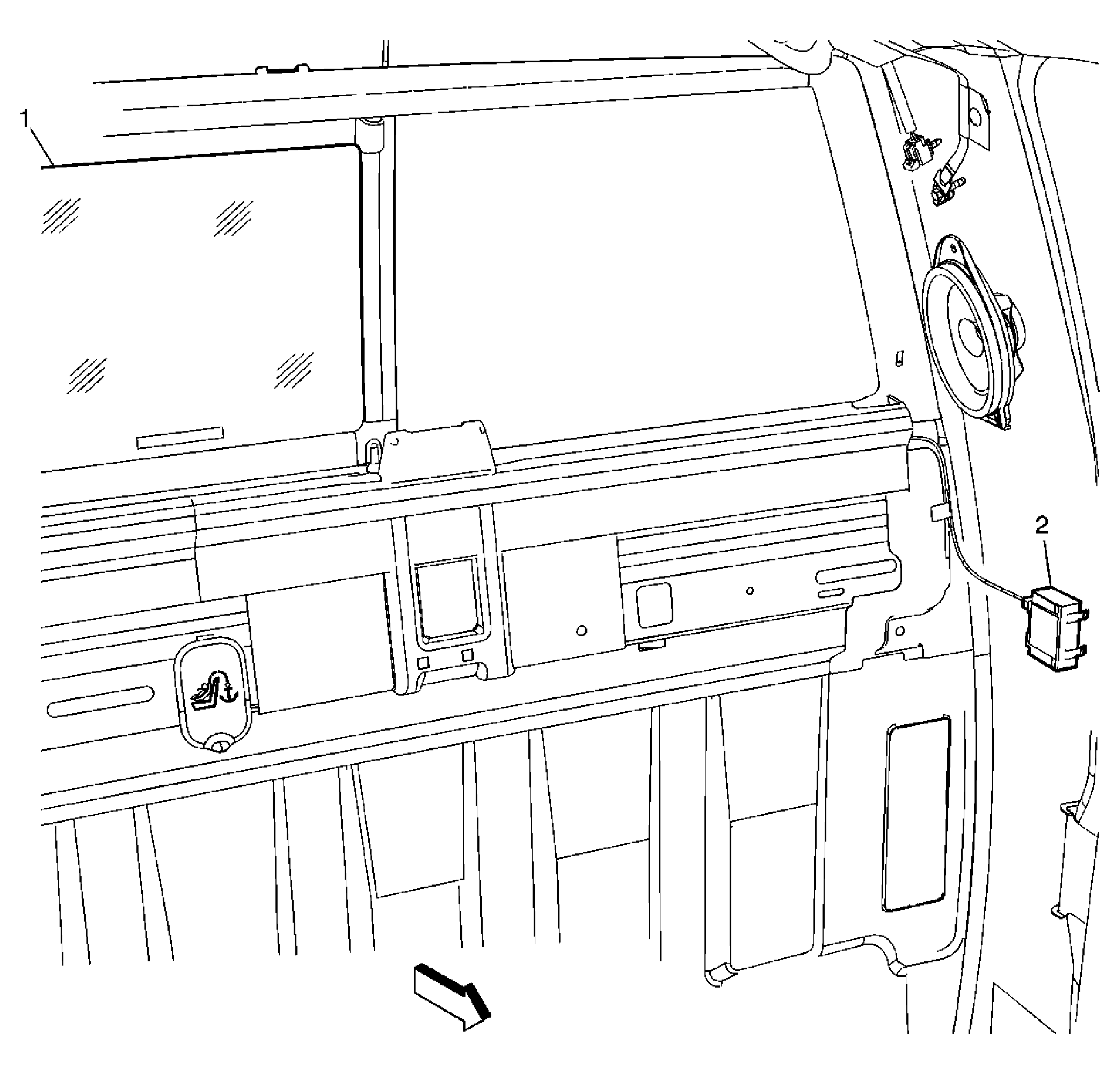

Fig 2: Left Rear of the Passenger Compartment
GM1860619Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window
2 Remote Control Door Lock Receiver (RCDLR) (AP3/AP8)
