WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2003 GMC Savana Special, 2003 GMC Savana Camper Special, 2003 GMC Savana, 2003 Chevrolet RV Cutaway, and 2003 Chevrolet Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

Connect the OnStar® navigation antenna. Refer to NAVIGATION ANTENNA REPLACEMENT .
Install the stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
Install the defroster grille. Refer to TRIM PAD REPLACEMENT - INSTRUMENT PANEL (I/P) UPPER .
Install the windshield interior garnish moldings. Refer to GARNISH MOLDING REPLACEMENT - UPPER PILLAR .
Install the inside rearview mirror. Refer to Rearview Mirror Replacement .
Install the air inlet grille. Refer to AIR INLET GRILLE PANEL REPLACEMENT .

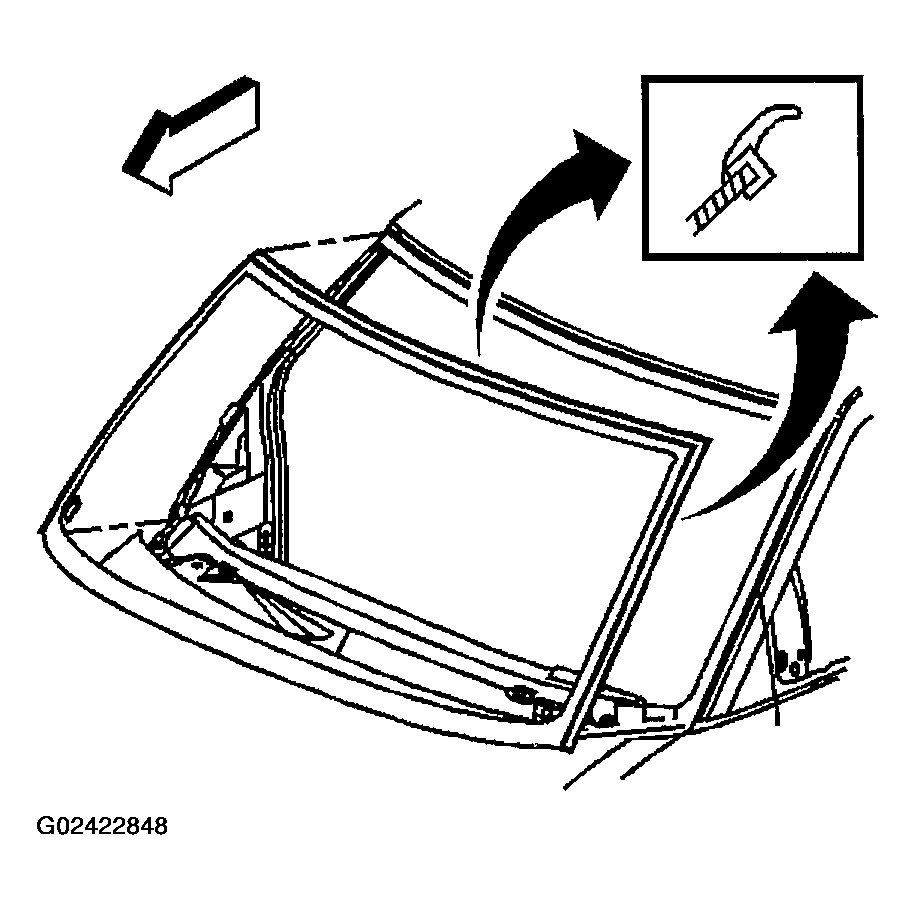

Fig 1: Installing Windshield
Courtesy of GENERAL MOTORS CORP.
Install the windshield frame filler panel. Refer to FILLER PANEL REPLACEMENT - UPPER FRONT FENDER .
Close the hood
Install the fixed antenna. Refer to FIXED ANTENNA MAST REPLACEMENT .
Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT .
Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
Install the OnStar® cellular antenna. Refer to COUPLING REPLACEMENT - ANTENNA INNER and COUPLING REPLACEMENT - ANTENNA OUTER .
