2007 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE
Engine Electrical Component Views

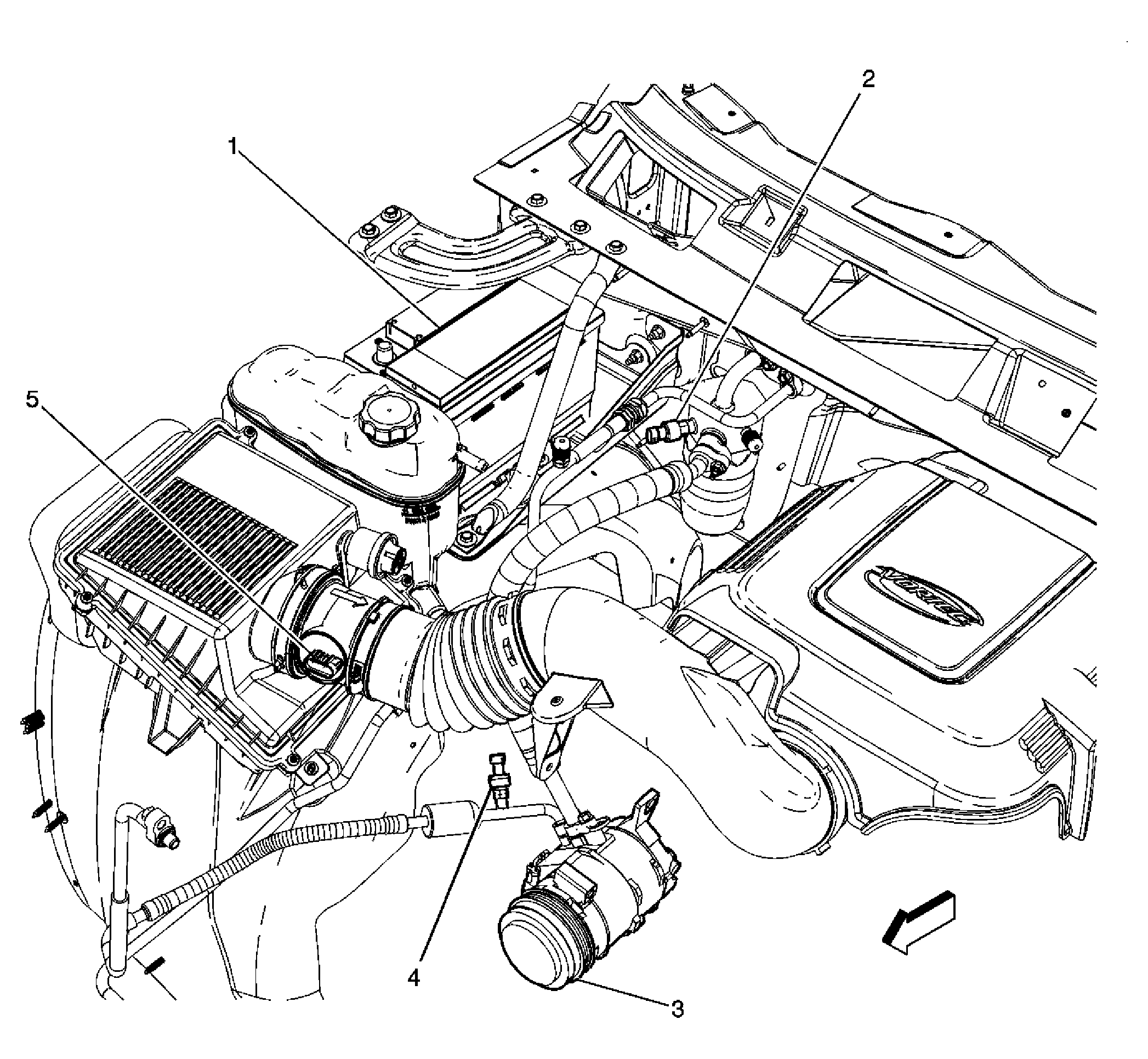

| Callout | Component Name |
|---|---|
| 1 | Battery |
| 2 | A/C Low Pressure Sensor |
| 3 | A/C Compressor Clutch |
| 4 | A/C Refrigerant Pressure Switch |
| 5 | Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor |
| Callout | Component Name |
|---|---|
| 1 | Throttle Body |
| 2 | Manifold Absolute Pressure (MAP) Sensor |
| 3 | Evaporative Emission (EVAP) Canister Purge Solenoid Valve |
| 4 | Knock Sensor (KS) - 1 |
| 5 | Engine Block Heater |
| 6 | Engine Coolant Temperature (ECT) Sensor |
| 7 | Camshaft Position (CMP) Sensor |
| 8 | Generator |
| Callout | Component Name |
|---|---|
| 1 | Ignition Coil 8 |
| 2 | Ignition Coil 6 |
| 3 | Ignition Coil 4 |
| 4 | Manifold Absolute Pressure (MAP) Sensor |
| 5 | Throttle Body |
| 6 | Ignition Coil 2 |
| 7 | Knock Sensor (KS) - 2 |
| 8 | Oil Level Switch |
| 9 | Starter |
| 10 | Valve Lifter Oil Manifold (VLOM) Assembly (DOD) |
| 11 | Engine Oil Pressure (EOP) Sensor |
