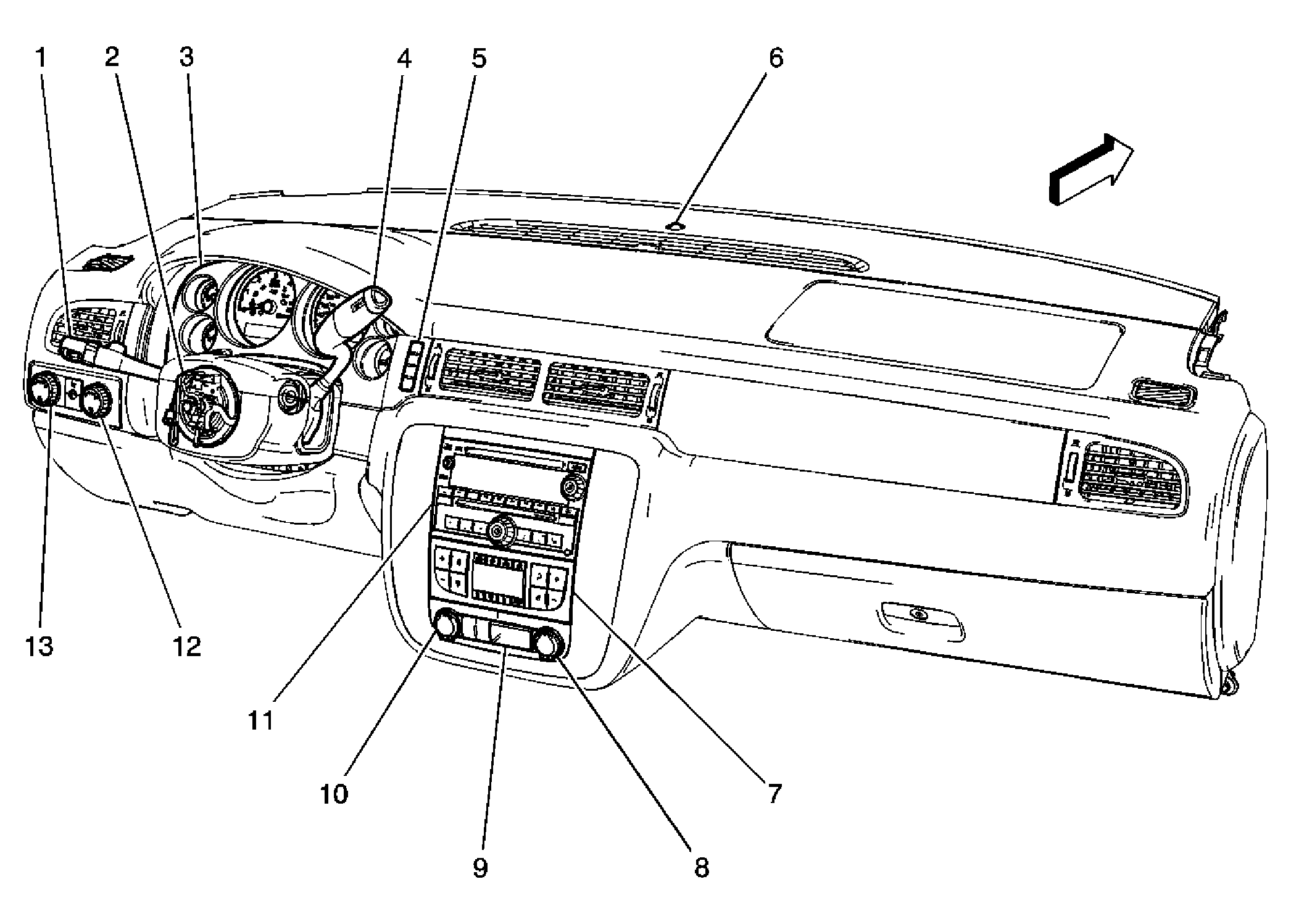

Fig 1: Front of the I/P (Except Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Multifunction Switch
2	Inflatable Restraint Steering Wheel Module Coil
3	Instrument Panel Cluster (IPC)
4	Tow/Haul Switch
5	Driver Information Center (DIC) Switch
6	Ambient Light/Sunload Sensor Assembly (CJ2) or Ambient Light Sensor (CJ3)
7	HVAC Control Module
8	Auxiliary Power Outlet - Front 2
9	I/P Multifunction Switch Assembly
10	Auxiliary Power Outlet - Front 1
11	Radio
12	Transfer Case Shift Control Switch
13	Headlamp and Panel Dimmer Switch

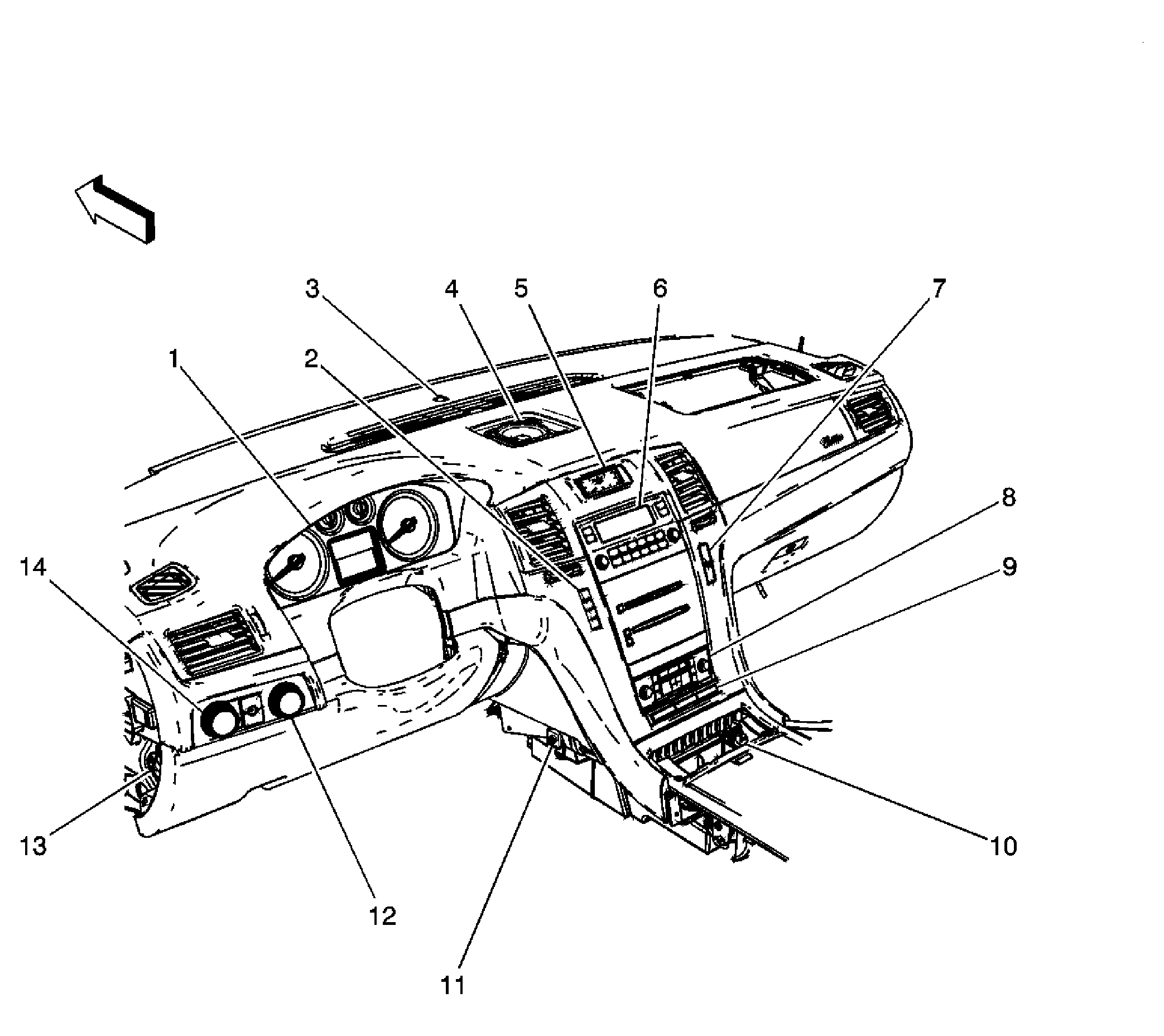

Fig 2: Front of the I/P (Z75)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel Cluster (IPC)
2	Driver Information Center (DIC) Switch
3	Ambient Light/Sunload Sensor Assembly (CJ2)
4	Speaker - Center
5	Analog Clock
6	Radio
7	Traction Control / Rear Object Detection Switch
8	HVAC Control Module
9	I/P Multifunction Switch Assembly
10	Auxiliary Power Outlet - Front 1
11	Noise Compensation Microphone (Y91)
12	Transfer Case Shift Control Switch
13	Fuse Block - I/P
14	Headlamp and Panel Dimmer Switch

Fig 3: RR of the Passenger Compartment (E52)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Information Center Telltale Assembly (UD7)
2	Speaker - Right D-Pillar
3	Auxiliary Power Outlet (APO) - Rear
