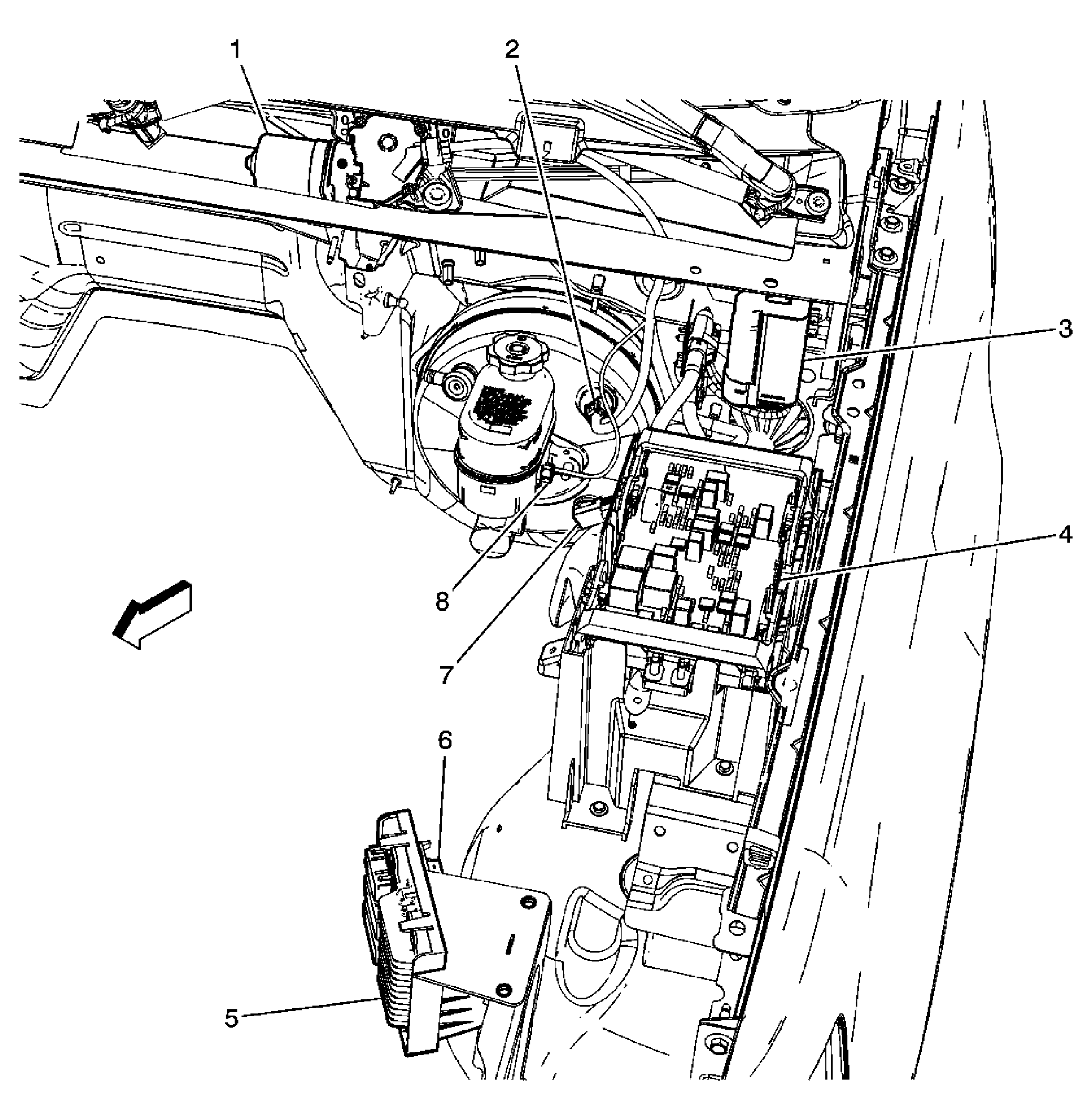

Fig 1: Left Side of the Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield Wiper Motor
2	Power Brake Booster
3	Windshield Washer Solvent Heater
4	Fuse Block - Underhood
5	Engine Control Module (ECM)
6	Transmission Control Module (TCM)
7	Brake Booster Vacuum Sensor
8	Brake Fluid Level Switch

Fig 2: Steering Column Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal Multifunction Switch
2	Ignition Lock Cylinder
3	Tow/Haul Switch
4	Steering Angle Sensor
5	Shift Interlock Solenoid
6	Theft Deterrent Control Module
7	Ignition Switch
8	Inflatable Restraint Steering Wheel Module Coil

Fig 3: Under the Front Passenger Seat

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Drivers Seat
2	YAW Rate and Lateral Acceleration Sensor
3	Object Alarm Module (UD7)
4	Rear View Camera Image Display Module (UVC)

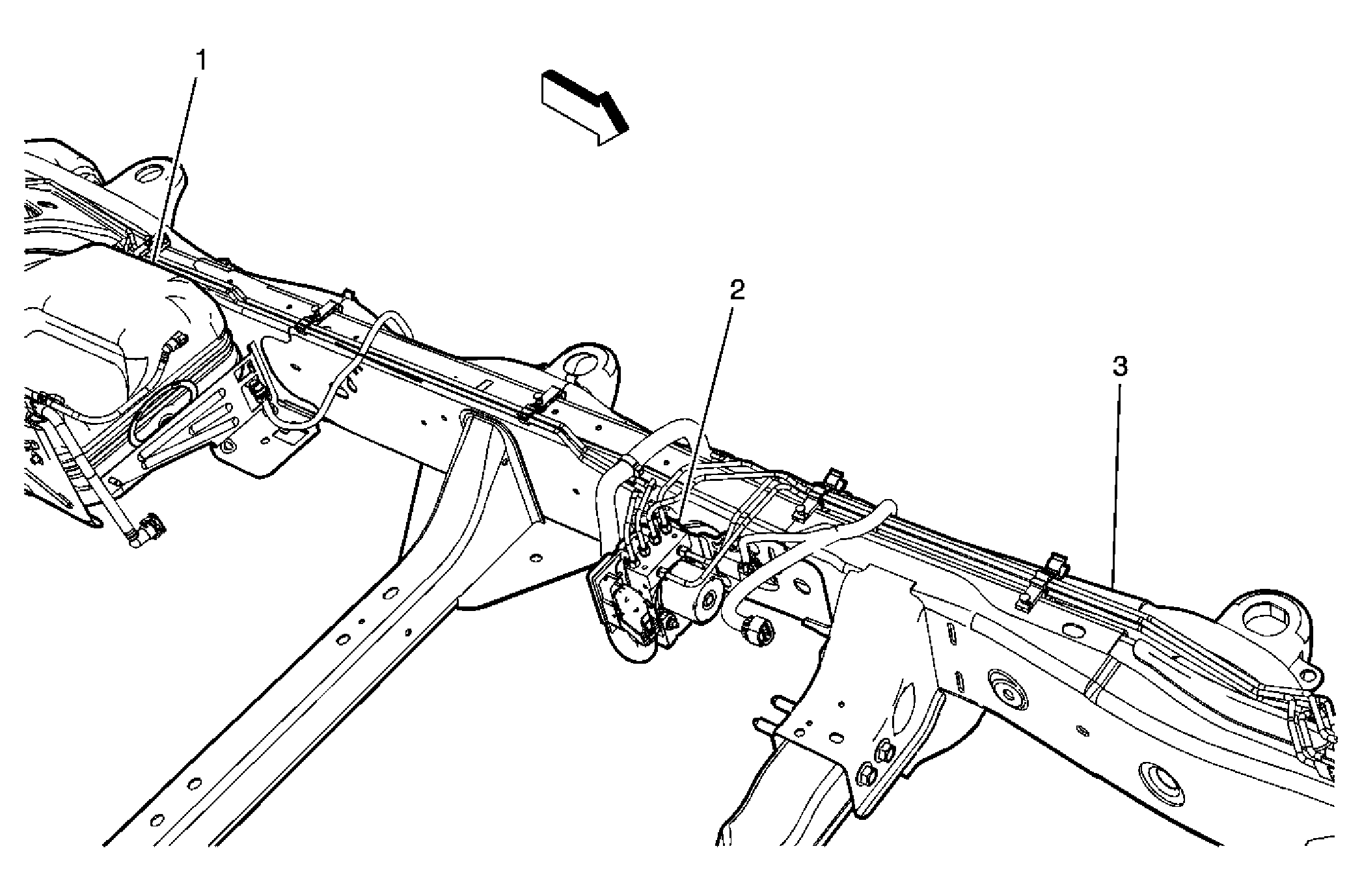

Fig 4: Left Side Frame and Underbody

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Gas Tank
2	Electronic Brake Control Module (EBCM)
3	Chassis
