2007 Cadillac Escalade EXTFACTORY OEM SERVICE PROCEDURE

Secondary/Configurable Control Component Views

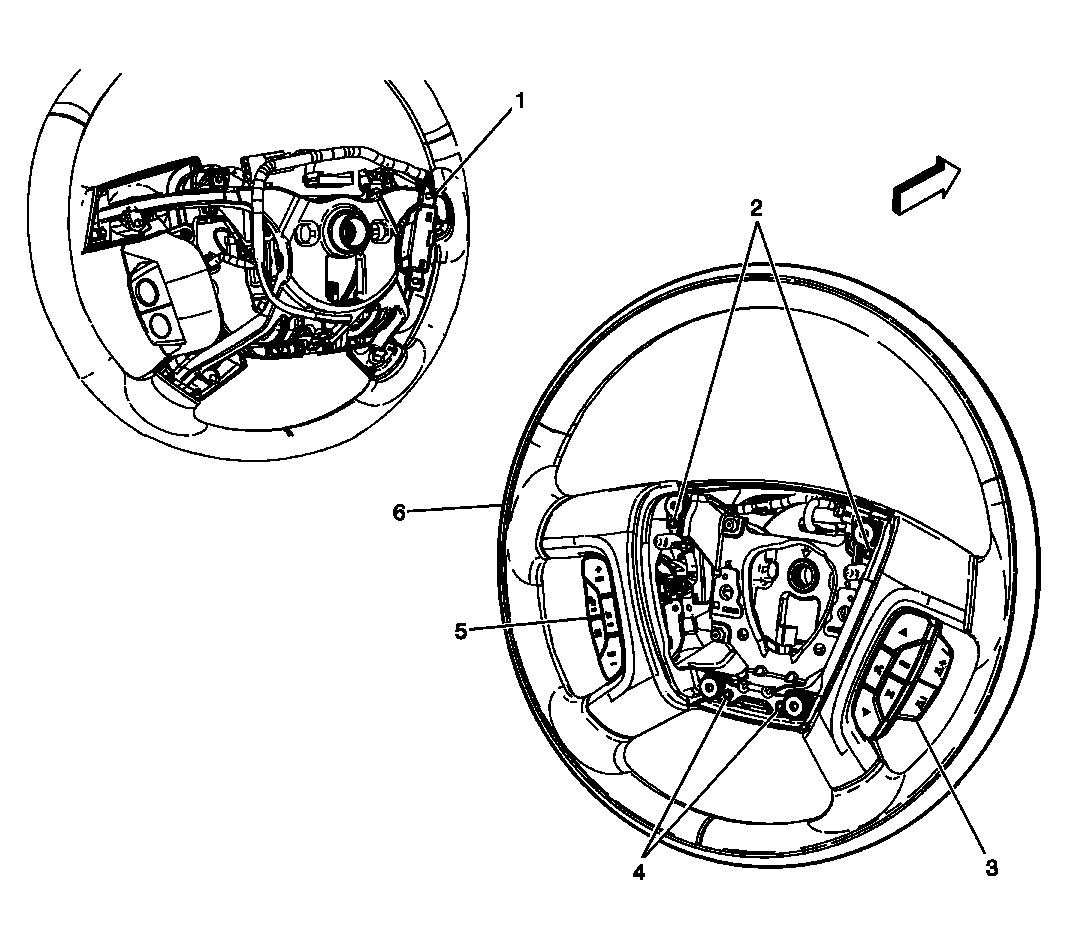

Fig 1: Steering Wheel Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Horn Switch
2	Heated Steering Wheel Control Module (KA9)
3	Steering Wheel Control Switch Assembly - Right (UK3)
4	Steering Wheel Control Switch Assembly - Left (K34/KA9)
5	Horn Switch
