2006 Cadillac STS VFACTORY OEM SERVICE PROCEDURE

Installation Procedure

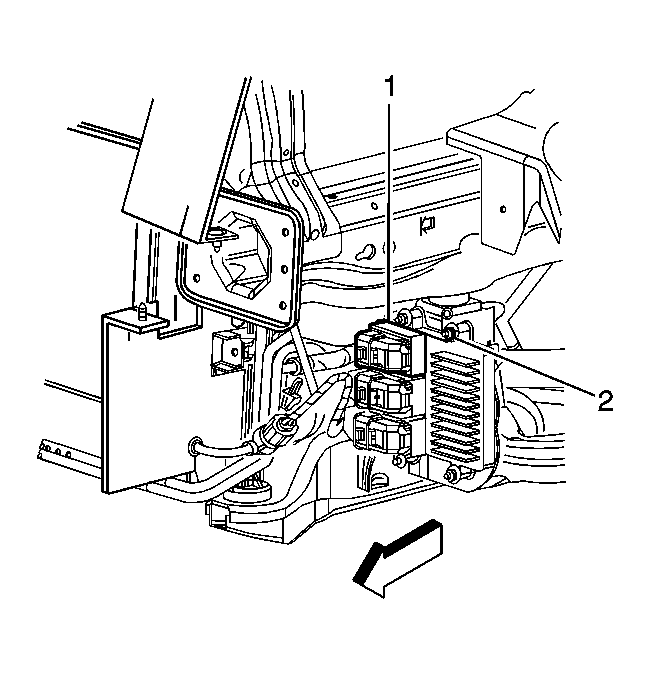

Fig 1: View Of ECM

Courtesy of GENERAL MOTORS CORP.

Install the ECM to the vehicle.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the ECM mounting nuts (2).
Tighten: Tighten the nuts to 8 N.m (71 lb in).
Connect the ECM electrical connectors (1).

Fig 2: View Of Front Air Deflector And Push Pin retainers

Courtesy of GENERAL MOTORS CORP.

Install the front air deflector. Refer to Front Air Deflector Replacement .
Lower the vehicle.
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Program the ECM. Refer to Control Module References for programming and setup information.
