2006 Cadillac STS AWD V6-3.6L VIN 7FACTORY OEM SERVICE PROCEDURE

Engine Control Module: Service and Repair





ENGINE CONTROL MODULE REPLACEMENT

NOTE:
- Turn the ignition OFF when installing or removing the control module connectors and disconnecting or reconnecting the power to the control module (battery cable, powertrain control module (PCM)/engine control module (ECM)/transaxle control module (TCM) pigtail, control module fuse, jumper cables, etc.) in order to prevent internal control module damage.
- Control module damage may result when the metal case contacts battery voltage. DO NOT contact the control module metal case with battery voltage when servicing a control module, using battery booster cables, or when charging the vehicle battery.
- In order to prevent any possible electrostatic discharge damage to the control module, do no touch the connector pins or the soldered components on the circuit board.
- Remove any debris from around the control module connector surfaces before servicing the control module. Inspect the control module connector gaskets when diagnosing or replacing the control module. Ensure that the gaskets are installed correctly. The gaskets prevent contaminant intrusion into the control module.
- The replacement control module must be programmed.

IMPORTANT:
- It is necessary to record the remaining engine oil life. If the replacement module is not programed with the remaining engine oil life, the engine oil life will default to 100 percent. If the replacement module is not programmed with the remaining engine oil life, the engine oil will need to be changed at 5,000 km (3,000 mi) from the last engine oil change.
- It is necessary to record the remaining automatic transmission fluid life. If the replacement module is not programed with the remaining automatic transmission fluid life, the automatic transmission fluid life will default to 100 percent. If the replacement module is not programmed with the remaining automatic transmission fluid life, the automatic transmission fluid will need to be changed at 83,000 km (50,000 mi) from the last automatic transmission fluid change.

Removal Procedure

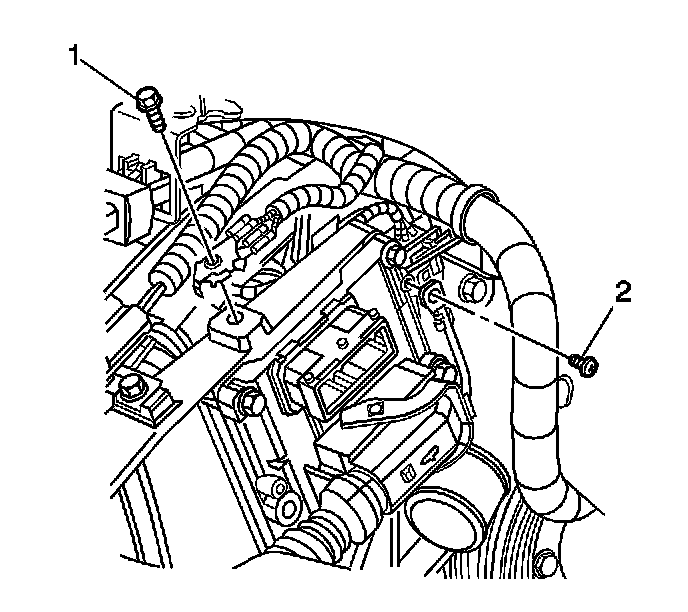

Factory service manual diagram



1. Turn the ignition OFF.
2. Remove the front compartment sight shields as necessary.
3. Using a scan tool, retrieve the percentage of remaining engine oil and the remaining automatic transmission fluid life. Record the remaining engine oil and the remaining automatic transmission fluid life.
4. Use a DMM in order to measure the main relay circuit voltage at the ECM fuse in the underhood fuse block.

IMPORTANT: Ensure that there is no main relay circuit voltage (ECM Fuse).

5. Disconnect the battery negative cable.
6. Remove the ECM fuse in the underhood fuse block.
7. Remove the TCM/IPC fuse in the underhood fuse block.
8. Remove the ECM/TCM fuse in the underhood fuse block.

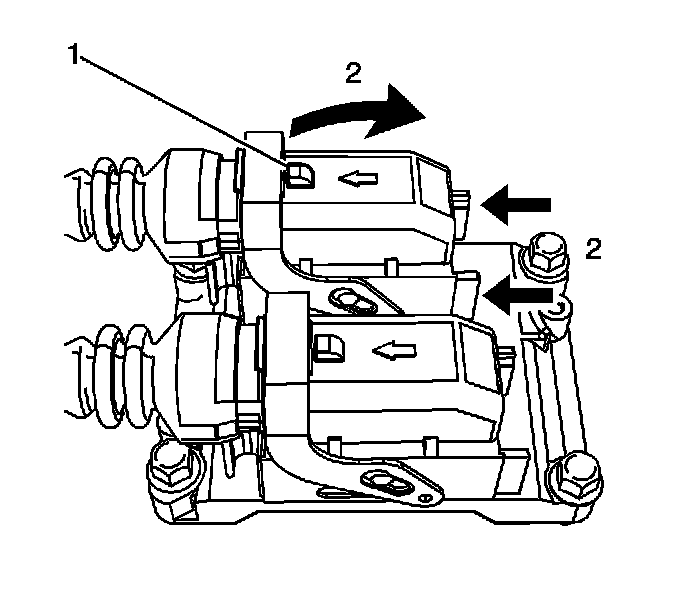

9.. Unlock the chassis side (upper) engine control module (ECM) electrical connector.
1. Depress the ECM electrical connector lever lock (1).
2. Simultaneously rotate the ECM connector clamp lever and depress the lock slide (2).

Factory service manual diagram

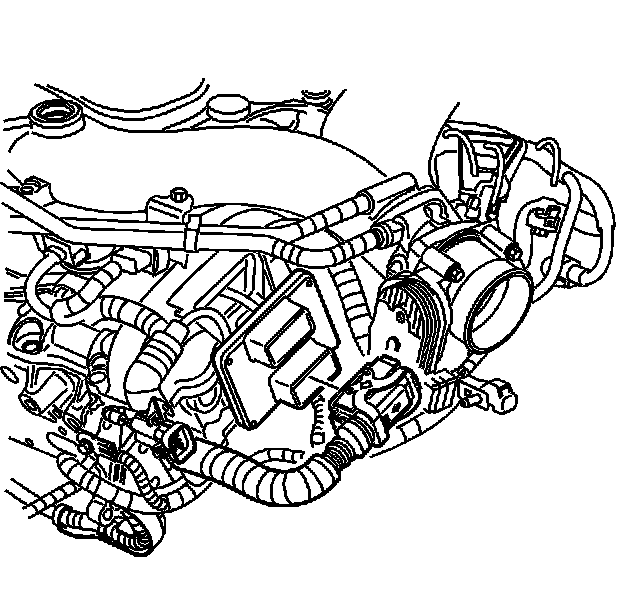

10. Remove the body side (upper) ECM connector.

NOTE: In order to prevent any possible electrostatic discharge damage to the ECM, do not touch the connector pins.

Factory service manual diagram

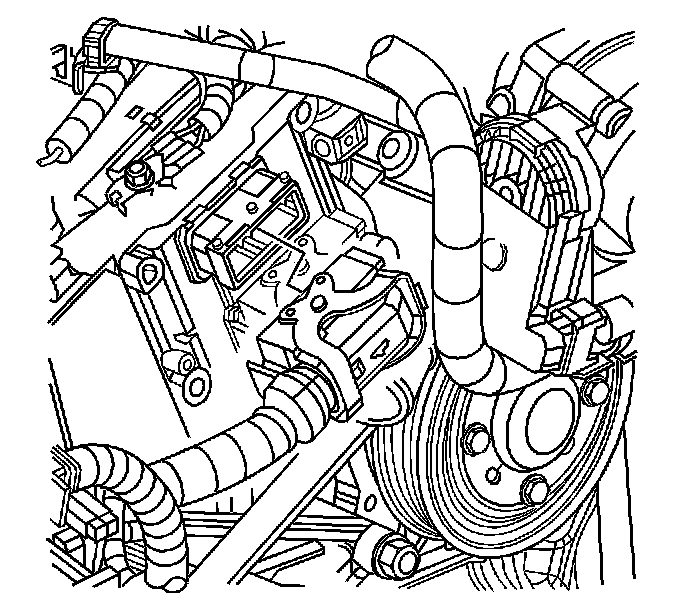

11. Unlock and remove the engine side (lower) ECM connector.

Factory service manual diagram

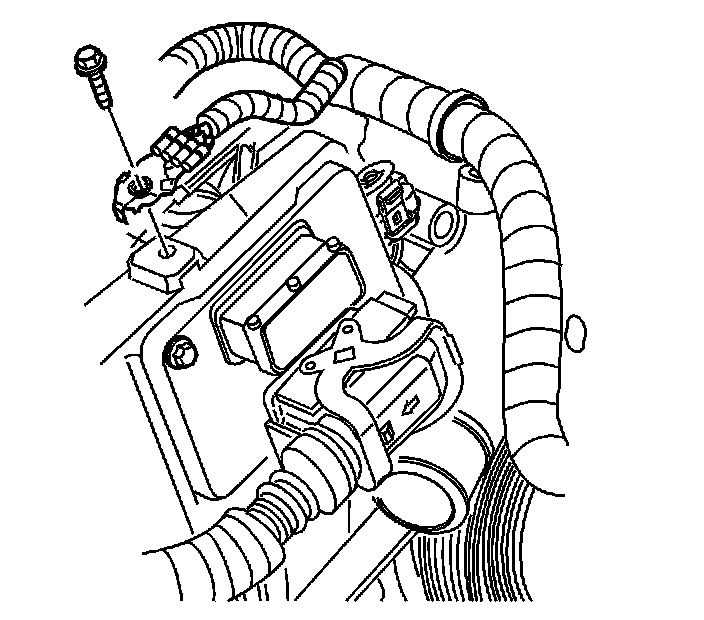

12. Remove the ECM redundant ground wire and bolt (2) from the ECM.

Factory service manual diagram

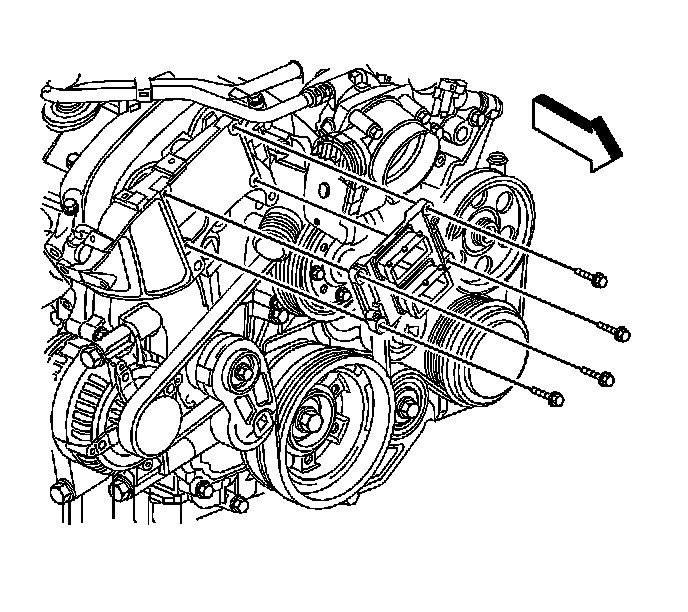

13. Remove the ECM bolts.
14. Remove the ECM.

Factory service manual diagram



15. If you are replacing the ECM bracket, perform the following steps (16 through 20)
16. Remove the electrical connector bracket and bolt from the ECM bracket.

Factory service manual diagram

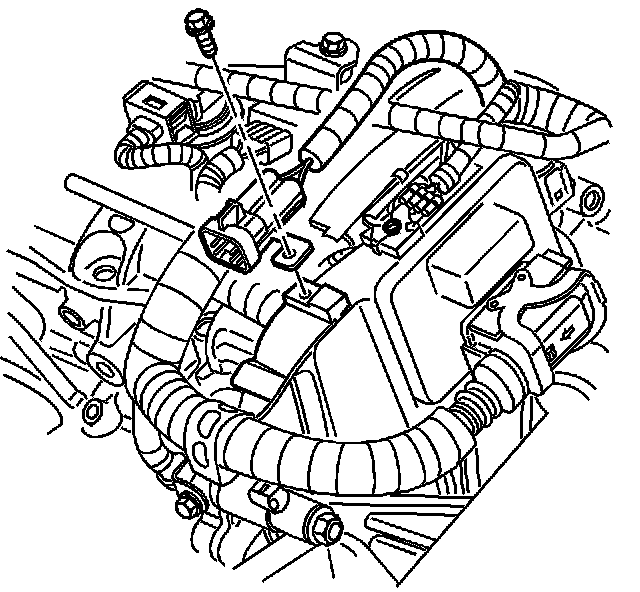

17. Remove the ground wire and bolt from the ECM bracket.

Factory service manual diagram

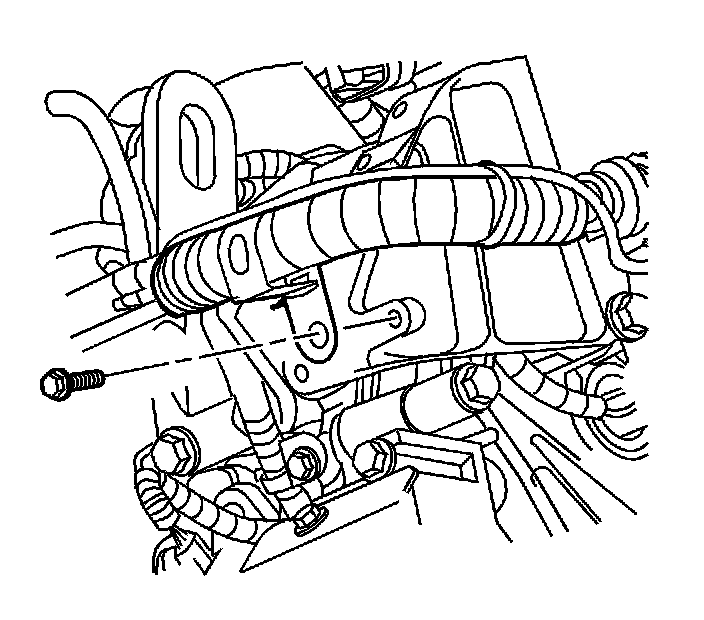

18. Remove the wire harness retainer and bolt from the side of the ECM bracket.

Factory service manual diagram

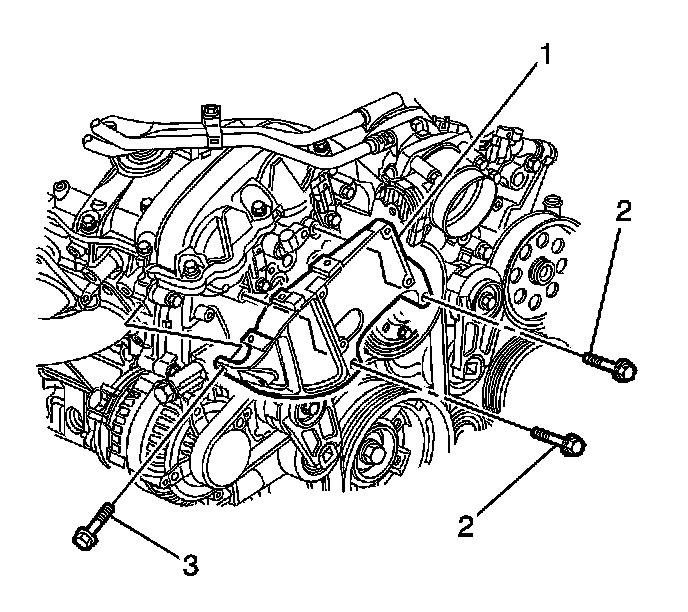

19. Remove the ECM bracket bolts (2 and 3).
20. Remove the ECM bracket (1).

Installation Procedure

Factory service manual diagram



1. Install the ECM bracket (1).
2. Install the ECM bracket bolts (2 and 3).
1. Tighten the ECM bracket bolt (2) to 10 N.m (89 lb in).
2. Tighten the ECM bracket bolts (3) to 23 N.m (17 lb ft).

NOTE: Refer to Fastener Notice in Service Precautions.

Factory service manual diagram



3. Install the wire harness retainer and bolt to the side of the ECM bracket.

Tighten the wire harness retainer bolt to 23 N.m (17 lb ft).

Factory service manual diagram



4. Install the electrical connector bracket and bolt to the ECM bracket.

Tighten the electrical connector bracket bolt to 10 N.m (89 lb in).

Factory service manual diagram



5. Install the wiring harness ground wire and bolt (2) to the ECM bracket.

Tighten the wiring harness ground wire bolt 10 N.m (89 lb in).

Factory service manual diagram



6. Install the ECM.

NOTE: In order to prevent any possible electrostatic discharge damage to the ECM, do not touch the connector pins.

7. Install the ECM bolts.

Tighten the ECM bolts to 10 N.m (89 lb in).

Factory service manual diagram



8. Install the ECM redundant ground and bolt (2) to the ECM.

Tighten the ECM redundant ground wire bolt to 5 N.m (44 lb in).

Factory service manual diagram



9. Install the engine side (lower) ECM connector.

Factory service manual diagram



10. Install the body side (upper) ECM connector.
11. Install the ECM/TCM fuse in the underhood fuse block.
12. Install the TCM/IPC fuse in the underhood fuse block.
13. Install the ECM fuse in the underhood fuse block.
14. Connect the battery negative cable to the battery.
15. Program the ECM. Programming and Relearning
16. Turn OFF the ignition for at least 5 seconds after the programming event is complete.
17. Install the front compartment sight shields as necessary.
