2006 Cadillac STS AWD V6-3.6L VIN 7FACTORY OEM SERVICE PROCEDURE
Rear Integration Module Replacement
REAR INTEGRATION MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the rear upper compartment trim.

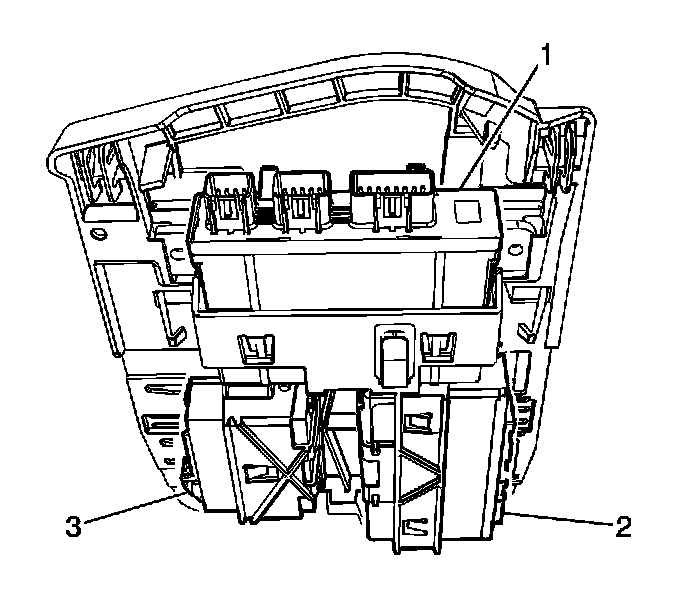

2. Release the tabs securing the rear integration module (2) to the module bracket.
3. Disconnect the electrical connectors.
INSTALLATION PROCEDURE
1. Connect the electrical connectors.
2. Install the module (2) to the bracket.
3. Install the rear upper compartment trim.
4. Reprogram the module. Refer to Control Module References. Programming and Relearning
