2006 Cadillac STS AWD V6-3.6L VIN 7FACTORY OEM SERVICE PROCEDURE
Door Control Module Replacement
DOOR CONTROL MODULE REPLACEMENT
REMOVAL PROCEDURE
1. Remove the door trim panel.

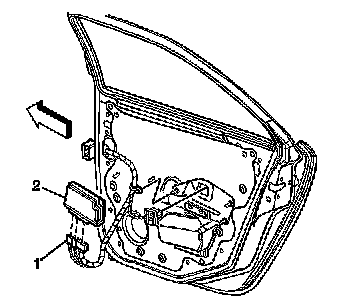

2. Remove the door control module (1) by releasing the retainer tabs (2).
3. Disconnect the electrical connectors (1) from the control module (2).
INSTALLATION PROCEDURE
1. Connect the electrical connectors (1) to the control module (2).

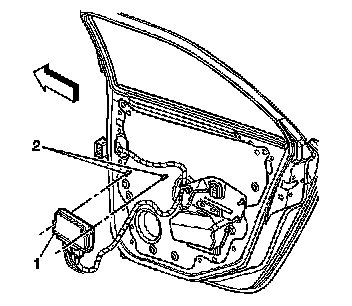

2. Snap the door module (1) onto the mounting studs (2).
3. Install the door trim panel.
4. Refer to Control Module References for programming and setup information. Programming and Relearning
