Antilock Brakes / Traction Control Systems: Locations

ABS Component Views
Front Brake and Suspension Components

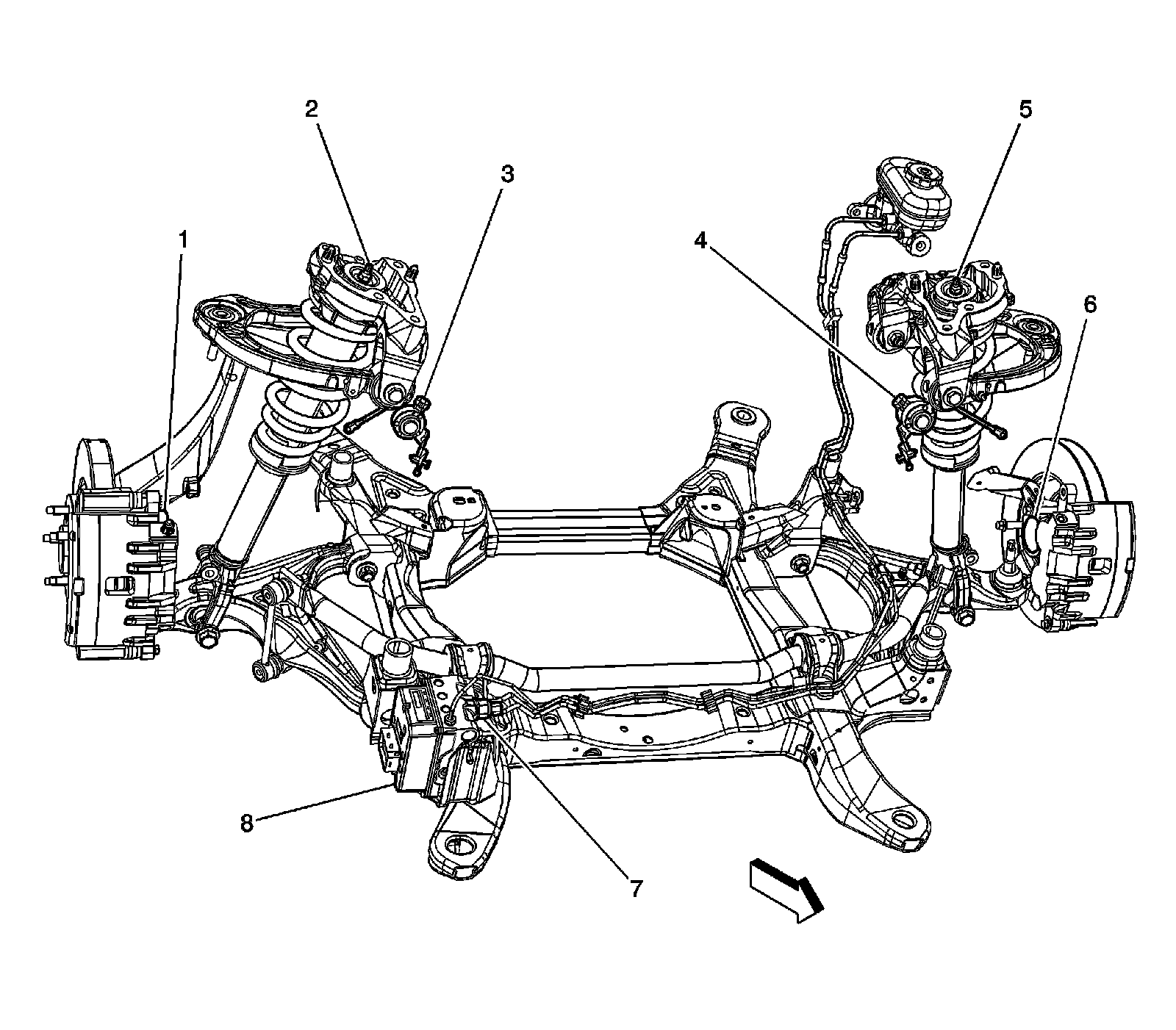

Front Brake and Suspension Components:

1 - Wheel Speed Sensor (WSS) - RF
2 - Suspension Damper - RF
3 - Suspension Position Sensor - RF
4 - Suspension Position Sensor - LF
5 - Suspension Damper - LF
6 - Wheel Speed Sensor (WSS) - LF
7 - Brake Fluid Pressure Sensor
8 - Electronic Brake Control Module (EBCM)

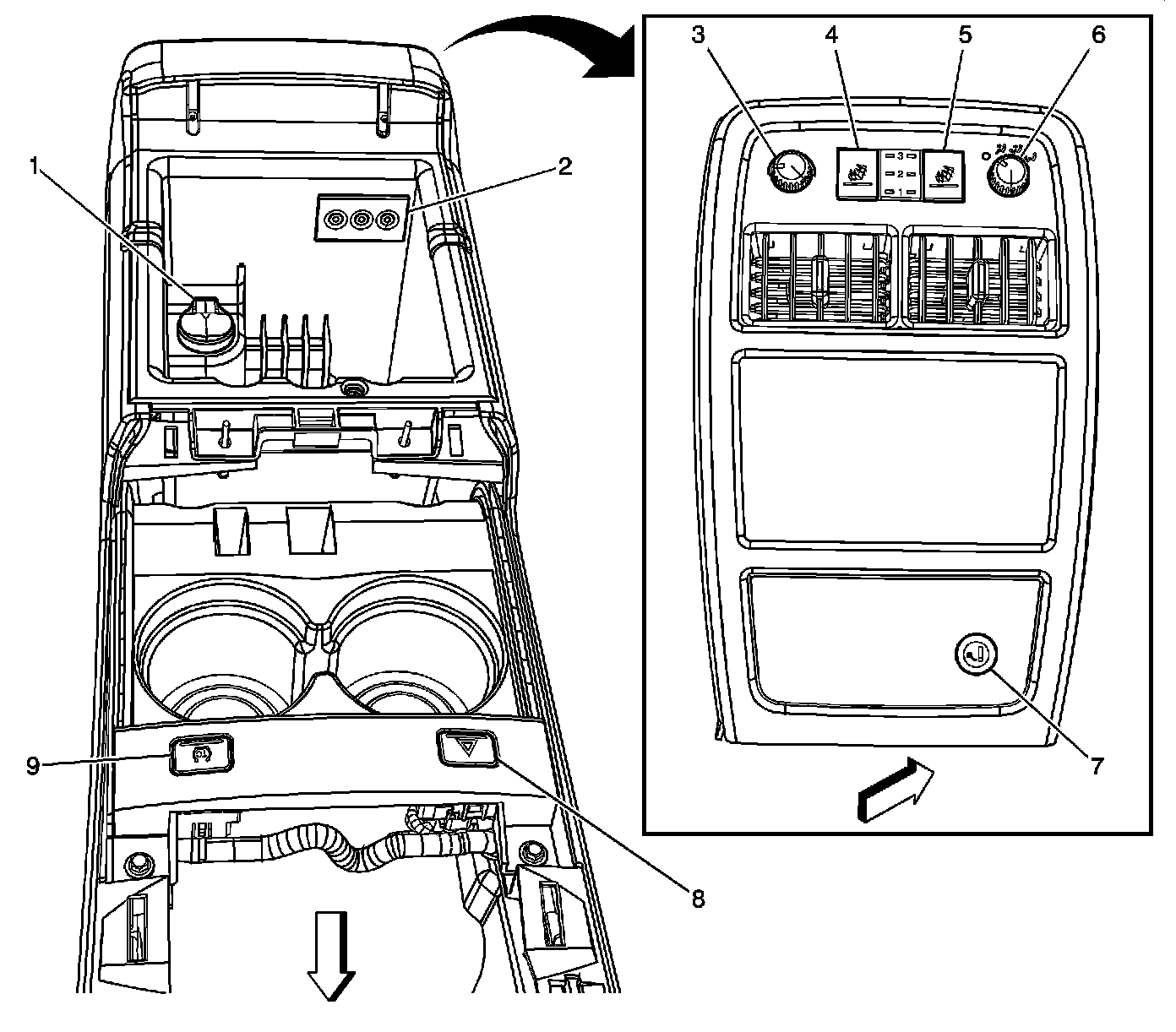

Console Components





1 - Auxiliary Power Outlet - Console
2 - Auxiliary Audio/Video Control
3 - HVAC Control Module - Rear Auxiliary (KA6)
4 - LR Heated Seat Switch - part of the Rear Auxiliary Module
5 - RR Heated Seat Switch - part of the Rear Auxiliary Module
6 - Mode Select Switch - Auxiliary (KA6)
7 - Auxiliary Power Outlet - Rear
8 - Hazard Switch
9 - Traction Control Switch

Under the Passenger Seat

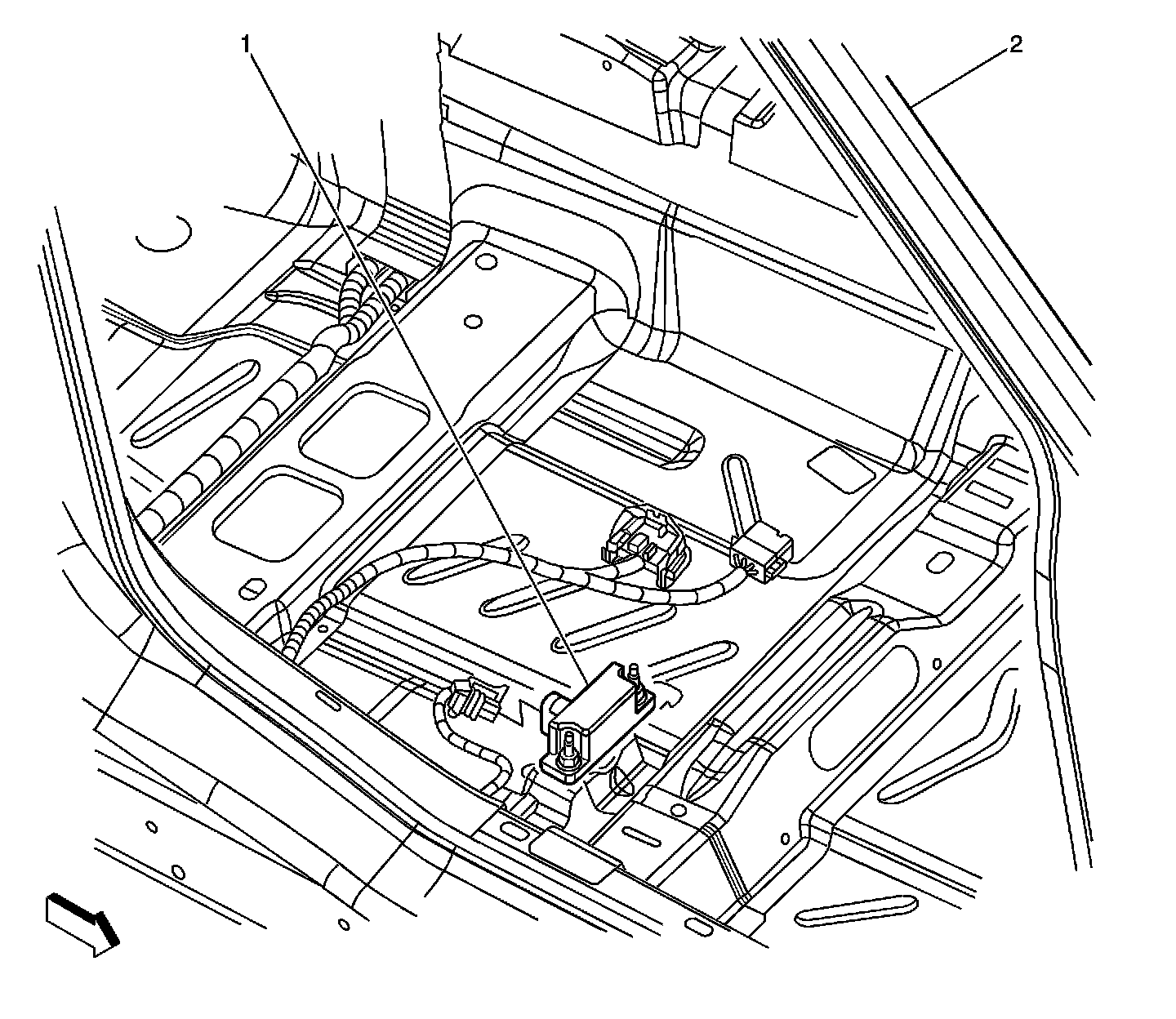

Under the Passenger Seat:

1 - Yaw Rate and Lateral Acceleration Sensor (JL9)
2 - Passenger Side A-Pillar

Rear Brakes and Suspension

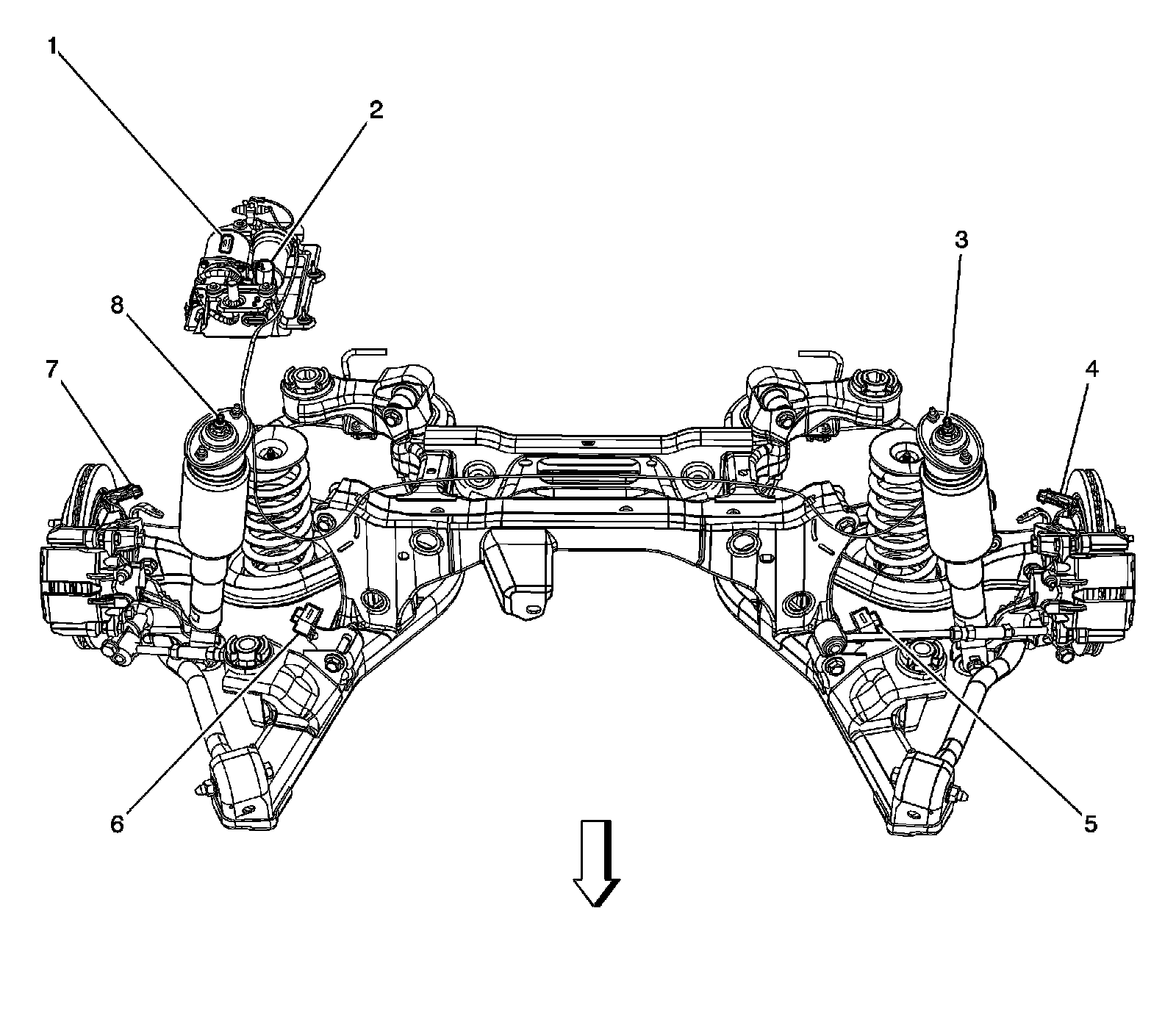

Rear Brakes and Suspension:

1 - Automatic Level Control (ALC) Compressor
2 - Automatic Level Control (ALC) Exhaust Solenoid
3 - Suspension Damper - LR
4 - Wheel Speed Sensor (WSS) - LR
5 - Suspension Position Sensor - LR
6 - Suspension Position Sensor - RR
7 - Wheel Speed Sensor (WSS) - RR
8 - Suspension Damper - RR

Steering Column and Wheel

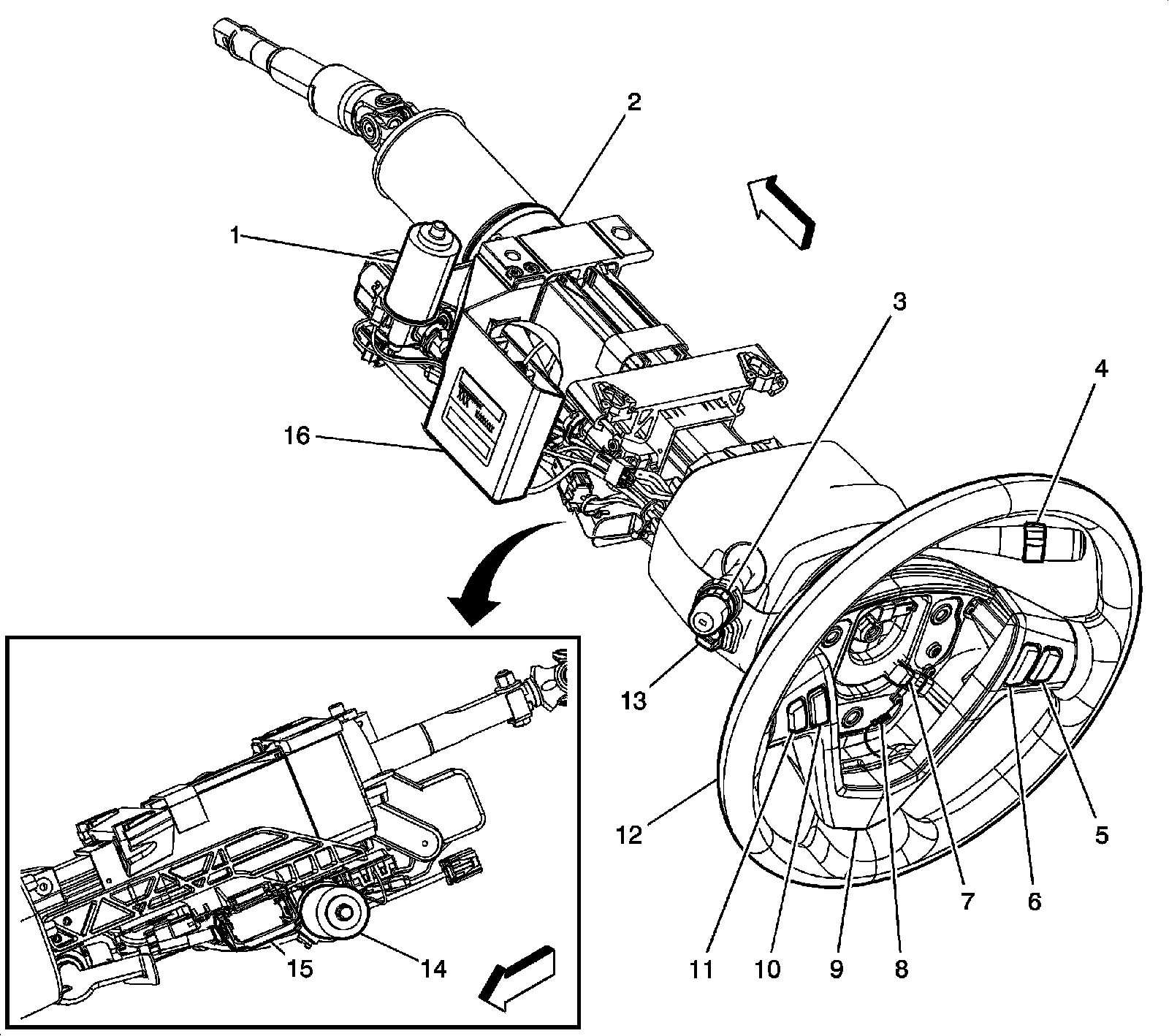

Steering Column and Wheel (3-spoke):

1 - Telescoping Drive Wheel
2 - Steering Angle Sensor
3 - Turn Signal/Multifunction Switch
4 - Windshield Wiper/Washer Switch Assembly
5 - Steering Wheel Controls Seek Button
6 - Steering Wheel Controls Volume Button
7 - C277
8 - Horn Switch Connector
9 - Steering Wheel Controls Mute/Source Button -or- Heated Steering Wheel Button (KA1)
10 - Steering Wheel Controls Voice/Preset Button
11 - Heated Steering Wheel
12 - Tilt/Telescope Switch
13 - Tilt Actuator
14 - C202
15 - Steering Column Lock Control Module (UA2)
