2006 Cadillac SRX RWD V6-3.6L VIN 7FACTORY OEM SERVICE PROCEDURE
Fuel Level Sensor: Service and Repair
FUEL LEVEL SENSOR REPLACEMENT - PRIMARY
REMOVAL PROCEDURE
CAUTION: Refer to Gasoline/Gasoline Vapors Caution in Service Precautions.
1. Remove the primary fuel tank module.

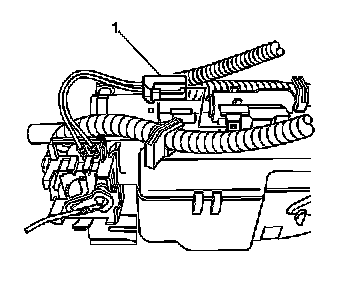

2. Disconnect the fuel level sensor electrical connector (1) from the module.
3. Complete the following in order to remove the fuel level sensor (1) from the module assembly:
1. Pull the locking tab (2) away from the sensor (1).
2. Slide the sensor (1) away from the module assembly.
INSTALLATION PROCEDURE
1. Complete the following in order to install the fuel level sensor (1) to the module assembly:
1. Align the tabs of the sensor (1) with the slots in the module assembly.
2. Slide the sensor (1) fully into position, ensure the locking tab (2) is engaged.
2. Connect the fuel level sensor electrical connector (1) to the module.
3. Install the primary fuel tank module.
